TERRALAND TN Subsoiler

Home Tillage Subsoilers TERRALAND TN Subsoiler

SUBSOILER FOR HIGH QUALITY DEEP TILLAGE

The TERRALAND TN mounted subsoiler is a machine for tillage up to a depth of 65 centimetres. What makes this machine a success is the fact that it can replace conventional ploughing, it works deeper, faster and with lower demands on the tractor power. The TERRALAND TN subsoiler is manufactured with 3 working width options of 2.5, 3 and 4 metres. The properties of TERRALAND TN make it suitable for deep loosening and incorporation of large quantities of organic matter.

55-65 cm

2,5-4 m

70-350 hp

Key properties

TERRALAND TN implement for deep cultivation, including the option of replacing legs and rollers (active soil mixing x zero soil mixing)

TERRALAND TN

Overview of the TN_S, TN_M and TN_D product ranges.

TERRALAND TN_S
TERRALAND TN_M
TERRALAND TN_D

The TERRALAND TN_S model is the entry-level variant in the BEDNAR range of subsoilers. The machine is available with a working width of 2.5 m and can be equipped with five legs with a spacing of 47.5 cm or seven legs with a spacing of 31.5 cm. Mechanical leg protection is standard equipment. The maximum working depth is 45 cm.

The TERRALAND TN_M series includes models with a working width of 3 and 4 m, which are produced with a fixed-frame design. A characteristic feature of this product range is a maximum working depth of 55 cm. The tines are protected either mechanically with shear bolts or hydraulically.

TERRALAND TN_D represents the top product range of BEDNAR subsoilers. The “D” models excel with a maximum working depth of up to 65 cm. These machines are available with a working width of 3 and 4 m in a fixed-frame design, with the exception of the TN 4000 HD9 model, which is the only one offered with a folding design for transport. The legs are protected against overload mechanically using shear bolts or hydraulically (the TN 4000 HD9 model is equipped with hydraulic protection as standard).

NEW TERRALAND TN 4000 HD9

Working width 4 m, transport width 3 m.

The mounted TERRALAND TN 4000HD9 subsoiler is equipped with 9 legs with a spacing of 45 cm. The individual legs are fitted with hydraulic auto-reset protection. The TERRALAND TN 4000 HD9 subsoiler has a transport width of 3 m to ensure trouble-free transport on roads. The TN 4000 HD9 subsoiler can be also equipped with the rear V-RING packer.

ONE FRAME, TWO EQUIPMENT OPTIONS

TERRALAND TN both tine cultivator and professional subsoiler.

Deep loosening
Subsoiling

The TERRALAND TN subsoiler in combination with Active-Mix legs and spiked rollers is suitable for deep loosening. The special shape of the legs provides easy soil penetration, and excellent loosening and mixing effect. In one pass, the soil profile is loosened in depth and the soil surface is intensely mixed and levelled.

The TERRALAND TN frame can be equipped with special Zero-Mix legs, with a negative angle, and the heavy steel Cutpack for subsoiling without active mixing of soil. This operation is suitable for disrupting hardened soil layers, aerating the soil profile, and creating a proper soil environment.

MOUNTED PARTS

The advantage for you? A longer durability.

The individual parts of the TERRALAND TN subsoiler are mounted, not welded. The mounted parts (legs to frames, internal frames to leg beams) have a multiple-times longer durability than when those exposed parts are welded together.

DEEP LOOSENING AND SOIL CRUMBLING

Two operations in one pass save time and money.

The TERRALAND TN subsoiler consists of two rows of legs, followed by double spiked rollers. Active legs provide deep soil loosening, double spiked rollers overlap and offer an excellent crumbling effect. The advantage of the rollers is that they can be adjusted according to the required work, for example, in rocky soils.

A WIDE RANGE OF POINTS AND WINGS

Modify your machine according to your conditions.

ACTIVE-MIX legs can be equipped with points with a width of 70 mm for intense loosening, or with a width of 40 mm for demanding conditions and deep work. The wings undercut the disrupted bottom layer to eliminate clod formation. Points and wings are also available in the extremely durable LONG LIFE version (40 mm, 55 mm and 70 mm). The deeper you work, the narrower the point should be.

SIDE DEFLECTORS

Prevents visible lines from forming.

The TERRALAND TN_M and TERRALAND TN_D subsoilers can be equipped with optional side deflectors, which keep the processed material within the working width and prevent the formation of ridges between passes. Side deflectors are available in a mechanically folding version or in a more convenient version with hydraulic folding.

REAR PACKERS

Adjustable according to current conditions.

A significant advantage of the double row spiked packers is the possibility of adjusting their axial distance according to soil conditions. When working in wet soil or with a large amount of crop residues, the rear row of rollers can be moved backwards, which increases their throughput and reduces the risk of clogging. This function is part of the standard equipment of the machine.

OTHER OPTIONAL EQUIPMENT

Customise the machine to your needs.

Additional side rollers
Support wheels

Additional side rollers with points level perfectly any unevenness that may occur on the sides of the machine between two passes. Mechanically foldable. This is an excellent alternative to side deflectors.

Support wheels keep the set working depth and reduce the load on the tractor’s three-point hitch.

COMBINATION WITH FERTILISER HOPPERS

Precise fertiliser dosing thanks to BEDNAR pressurised hoppers suitable for fertiliser placement into soil profile in one pass.

COMBO SYSTEM CS
SEED BOX SB

The COMBO SYSTEM CS double-chamber pressurised hopper offers a total hopper capacity of 5,000 litres. The cart design enables placement of two types of fertiliser in one pass, or use both chambers for one fertiliser.

SEED BOX SB is a new product range of front-mounted hoppers from BEDNAR. The hopper is available in a single-chamber design with a total volume of 1,600 litres. Fertiliser is transfered pneumatically from the front hopper to the distribution head located on the subsoiler.

NEW MACHINE

Designed on a proven basis.

Although it is a new machine, the complete support frame of the TERRADUO DN and the individual structural elements (ACTIVE-MIX and ZERO-MIX legs) are based on the time-tested machines of the TERRALAND TN series. The combination has created a unique machine with a range of agronomic benefits, based on a proven foundation.

Find out more

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Machine description

A concise summary of the main parts of the mounted subsoiler.

TERRALAND TN Subsoiler

Take a look at your future machine.

Leg section

The leg section layout ensures excellent loosening effect and mixing of crop residues with soil up to a depth of 65 centimetres. Two types of legs are available for deep loosening or subsoiling.

Leg protection

Each leg is individually protected, either hydraulically, or mechanically with the shear bolt.

Side deflectors

Maintain cultivated soil along the working width without the risk of side ridge formation.

Additional side rollers

The additional side spiked rollers perfectly level any potential ridges created on the sides of the machine.

Rear spiked packers

Rear double rollers with a diameter of 245 mm have overlapping spikes that provide excellent self-cleaning effect.

OUR INNOVATIVE TECHNOLOGIES

PROFILE FERTILISATION AND DEEP LOOSENING IN ONE PASS

The system of profile fertilisation is one of the most efficient methods to maintain a sufficiently balanced nutrient supply in soil, not only in the arable horizon, but also in deeper layers of the soil profile. This innovative method of fertiliser application connected to deep soil cultivation is not only suitable for replenishing deficit nutrients in soil to reach a balanced level of a good supply, but also to improve accessibility of nutrients to plants, and it also has a positive effect on the growth of the root system.

LONG-LIFE POINTS AND WINGS

The point and the entire abrasion area of the abrasion point are covered with plates made of sintered carbides. The front part of the wings is made of carbide plates that minimise wear and tear in the width and maintain the same shape and functionality the whole time. The LONG LIFE model offers up to ten times longer service time when compared with the standard model, ensures a consistent working depth and quality of work, improves recessing, and provides lower costs and time saved by replacing working parts.

HIGH-STRENGTH STEEL FRAME

The high robustness and durability of the TERRALAND subsoiler frame are provided by the high-strength Alform steel, thanks to which the subsoiler can process soil at a maximum working depth.

WHAT DO THE FARMERS HAVE TO SAY?

“We had the opportunity to test the TERRALAND TN subsoiler first, we had a choice of subsoiler machines and subsoiler from five different manufacturers. The quality of work convinced us, as well as the references from the neighbouring companies that use TERRALAND TN, for instance, to subsoil soil for potatoes. The subsoiler works great. Right now, we are using legs equipped with LONG LIFE carbide legs, since they have a longer service life than the standard version. They are definitely a better solution for our rocky soils.”

Ing. Michal Vaněk, Chief Agronomist,
VOD Kámen (Czech Republic)

Accessories

We know that everyone has different requirements for the optional machine equipment and its expected use. Therefore, you can specify your own TERRALAND TN to precisely match your needs.

Type of protection

Hydraulic leg protection

Comfortable hydraulic AUTO-RESET leg protection for rocky and extremely hardened soils. The release force of each tine starts at 1000 kg and ends at 1500 kg.

Mechanical leg protection

Mechanical leg protection with a shear bolt. A suitable design for light soils without rocks.

Other

Additional side deflectors - hydraulically adjustable

They keep cultivated soil along the working width without the risk of side ridge formation. The side deflectors offer comfortable folding into the working position from the tractor cabin using the hydraulic circuit.

Udržují zpracovanou půdu v pracovním záběru stroje bez rizika tvorby bočních hrůbků. Boční clony nabízí komfortní sklopení do pracovní polohy z pohodlí kabiny traktoru pomocí hydrauliky.Udržují zpracovanou půdu v pracovním záběru stroje bez rizika tvorby bočních hrůbků. Boční clony nabízí komfortní sklopení do pracovní polohy z pohodlí kabiny traktoru pomocí hydrauliky.

Support wheels

The support wheels maintain the set working depth and lighten the load on the pulling implement.

Additional side deflectors - mechanically adjustable

They keep cultivated soil along the working width without the risk of side ridge formation. The machine folds into the working position automatically.

Additional side screensAdditional side screens

Additional side rollers

The additional side spiked rollers perfectly level any potential ridges created on the sides of the machine.

Leg section

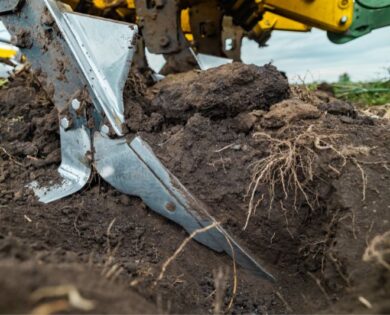

ACTIVE-MIX legs

Designed for intense deep cultivation up to 55/65 centimetres. The ACTIVE-MIX legs disrupt, intensely loosen soil and mix it with crop residues.

ZERO-MIX legs

The negative angle provides subsoiling without active mixing at a depth of up to 55/65 centimetres. The negative angle does not mix soil, disturbs the hardened layers intensely and aerates the soil profile.

Rollers and packers

Tandem Spiked Roller

Rear double roller with a diameter of 245 mm have overlapping spikes. The overlapping arrangement of the spikes provides a self-cleaning effect. The machine can work in the most extreme conditions without clogging. The rollers can be moved, for example, in rocky soils. Weight: 157 kg/m. The packer is suitable for use with ACTIVE-MIX legs.

TANDEM SPIKED PackerTANDEM SPIKED Packer

CUTPACK Packer + scrapers

CUTPACK is a heavy steel packer with high cutting abilities and an excellent soil reconsolidation. Suitable for heavy soils. Packer diameter 630 mm. Weight: 222 kg/m (including scrapers). The packer is suitable for use with ZERO-MIX legs.

Rear rollers

V-RING Packer + Scrapers

V-RING is a heavy steel packer suitable for intense crumbling and soil consolidation. Suitable for all types of soil. Packer diameter 630 mm. The packer is equipped with scrapers that prevent it clogging. The V-RING packer is only available for the TERRALAND TN 4000HD9 model.

V-RING pěch + stěrky (630 mm)V-RING pěch + stěrky (630 mm)

CONFIGURE YOUR OWN
TERRALAND TN Subsoiler

You are one step closer to your new machine.
You can try all the optional equipment in our configurator,
or read more about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

DEEP SOIL CULTIVATION

Deep soil cultivation has its proven advantages, and it can completely replace standard tillage when carried out at the right time and in the right way. Deep cultivation enables root systems to develop, disrupts compacted layers and the plough basin, and creates optimal soil environment for proper functional water and air conditions of soil. BEDNAR machines can carry out deep loosening up to the maximum depth of 65 centimetres. It is recommended to add profile fertilisation in one pass, to provide soil with essential nutrients.

More about tillage

Technical data

The table can be navigated by scrolling sideways.

TERRALAND TN_M		TN 3000 M5R	TN 3000 M7R	TN 4000 M7R	TN 4000 M9R
Working width	m	3	3	4	4
Transport width	m	3	3	4	4
Transport length	m	3,2	3,2	3,2	3,2
Transport height	m	1,6	1,6	1,6	1,6
Number of legs	pcs	5	7	7	9
Working depth of legs*	cm	55	55	55	55
Leg spacing	cm	60	40	56,5	42,5
Leg protection		shear bolt	shear bolt	shear bolt	shear bolt
Type of legs	cm	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix
Frame type		rigid	rigid	rigid	rigid
Frame clearance	cm	79	79	79	79
Power demand*	hp	150 - 180	180 - 220	200 - 260	220 - 300
Max. total weight**	kg	2300	2300	2750	2750

Consumable parts

Spare parts configurator

The table can be navigated by scrolling sideways.

TERRALAND TN_HM		TN 3000 HM5R	TN 3000 HM7R	TN 4000 HM7R	TN 4000 HM9R
Working width	m	3	3	4	4
Transport width	m	3	3	4	4
Transport length	m	3,4	3,4	3,4	3,4
Transport height	m	1,6	1,6	1,6	1,6
Number of legs	pcs	5	7	7	9
Working depth of legs*	cm	55	55	55	55
Leg spacing	cm	60	40	56,5	42,5
Leg protection		hydraulic	hydraulic	hydraulic	hydraulic
Type of legs	cm	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix
Frame clearance	cm	79	79	79	79
Power demand*	hp	150 - 180	180 - 220	200 - 260	220 - 300
Frame type		rigid	rigid	rigid	rigid
Max. total weight**	kg	3000	3000	3270	3270

Consumable parts

The table can be navigated by scrolling sideways.

TERRALAND TN_D		TN 3000 D5R	TN 3000 D7R	TN 4000 D7R	TN 4000 D9R
Working width	m	3	3	4	4
Transport width	m	3	3	4	4
Transport length	m	2,9	2,9	2,9	3,3
Transport height	m	1,7	1,7	1,7	1,7
Number of legs	pcs	5	7	7	9
Working depth of legs*	cm	65	65	65	65
Leg spacing	cm	60	40	56,5	42,5
Leg protection		shear bolt	shear bolt	shear bolt	shear bolt
Type of legs	cm	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix
Frame type		rigid	rigid	rigid	rigid
Frame clearance	cm	86	86	86	86
Power demand*	hp	200 - 250	220 - 280	250 - 300	280 - 350
Max. total weight**	kg	2580	2580	3080	3080

* depends on soil conditions ** according to the machine equipment

Consumable parts

Spare parts configurator

The table can be navigated by scrolling sideways.

TERRALAND TN_HD		TN 3000 HD7R	TN 4000 HD9R	TN 4000 HD9F
Working width	m	3	4	4
Transport width	m	3	4	3
Transport length	m	3,4	3,4	4,1
Transport height	m	1,7	1,7	2,4
Number of legs	pcs	7	9	9
Working depth of legs*	cm	65	65	65
Leg spacing	cm	40	42,5	45
Leg protection		hydraulic	hydraulic	hydraulic
Type of legs	cm	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix	Active - Mix / Zero - Mix
Frame clearance	cm	86	86	86
Power demand*	hp	220 - 280	280 - 350	280 - 350
Frame type		rigid	rigid	folding
Max. total weight**	kg	3070	3840	4200

* depends on soil conditions ** according to the machine equipment
