THE WAY FOR HIGHER YIELDS AND A PROPER SOIL ENVIRONMENT

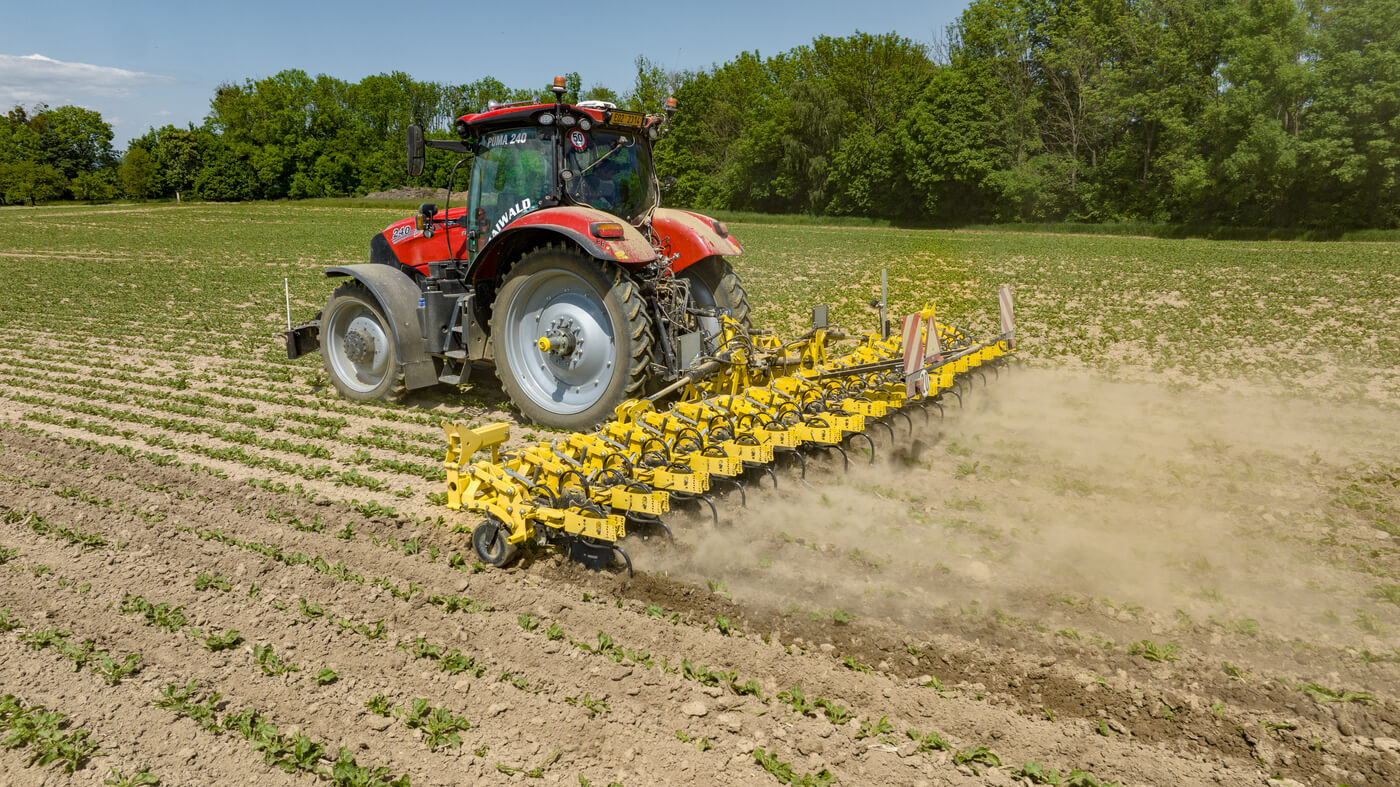

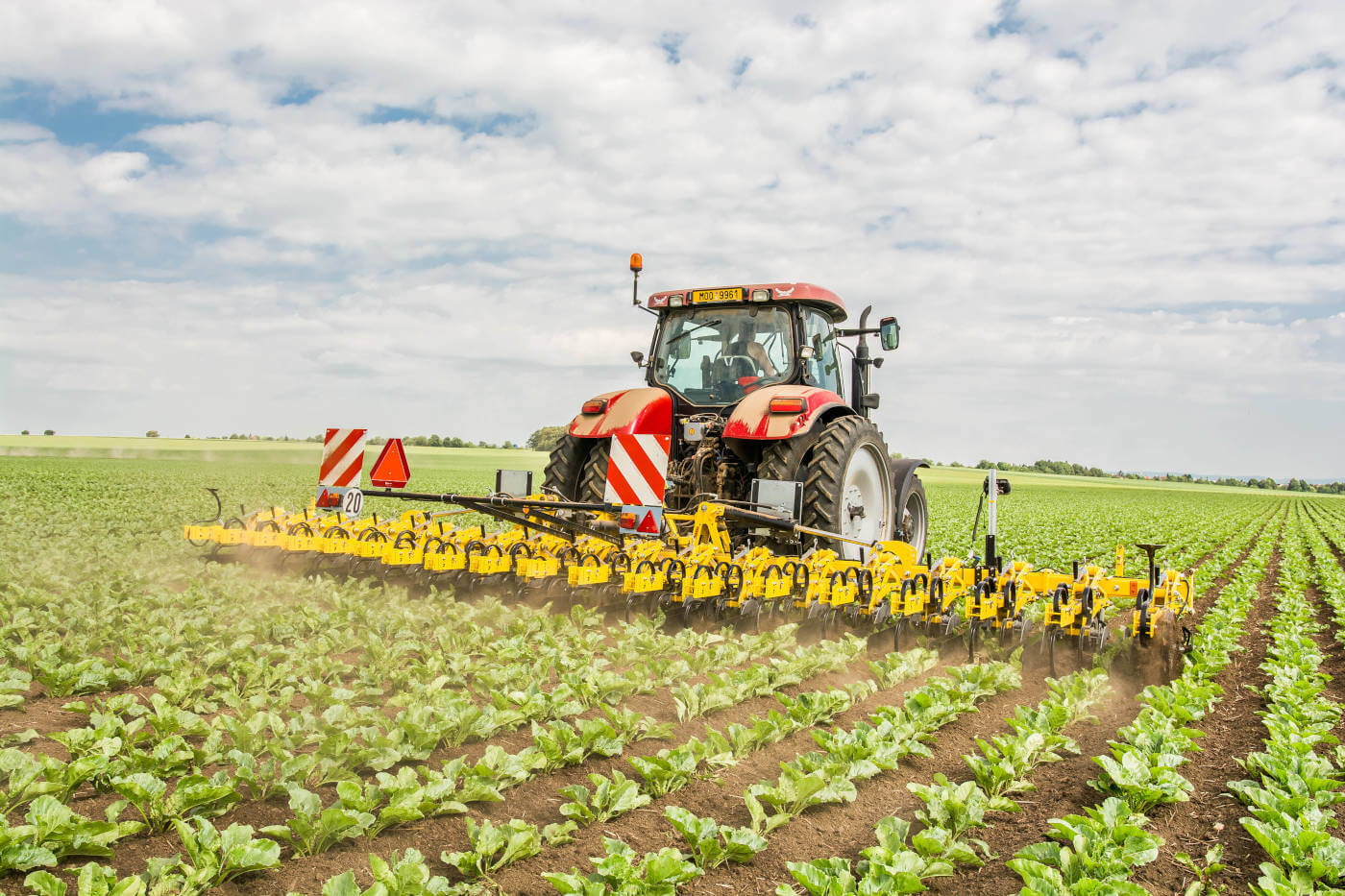

The ROW-MASTER RN_S row-crop cultivator is designed for weeding, removing the soil crust, eliminating the growth of weeds, and creating a proper soil climate in sugar beet crop. The cultivator can be easily adjusted for an row spacing of 45-50 cm and equipped with various equipment to adjust to the specific crop condition. To reduce the risk of damaging the crop and to achieve high outputs, the cultivator can be equipped with the self-guiding CultiCam system.

2-10 cm

6-12,4 m

80-250 hp

Key properties

A row-crop cultivator that eliminates the occurrence of weeds in sugar beet crop with an adjustable row spacing of 45-50 centimetres.

ROW-MASTER RN_S ROW-CROP CULTIVATOR

Weeding = the way for higher yields.

Sugar beet needs an ideal soil environment to achieve adequate yield-generating elements. Weeding is one of the options how to achieve that. It makes air accessible to the roots, disrupts the soil crust, removes weed plants from inter-rows, and increases the sugar content of tubers.

A REAL EXPERT

A modular system adjustable to specific conditions.

A great advantage of the ROW-MASTER RN_S cultivator is the high variability of the equipment. The different types of row units make it possible to adjust the row-crop cultivator to the current growth stage of the crop so that loosening is performed as best as possible and without the risk of crop damage.

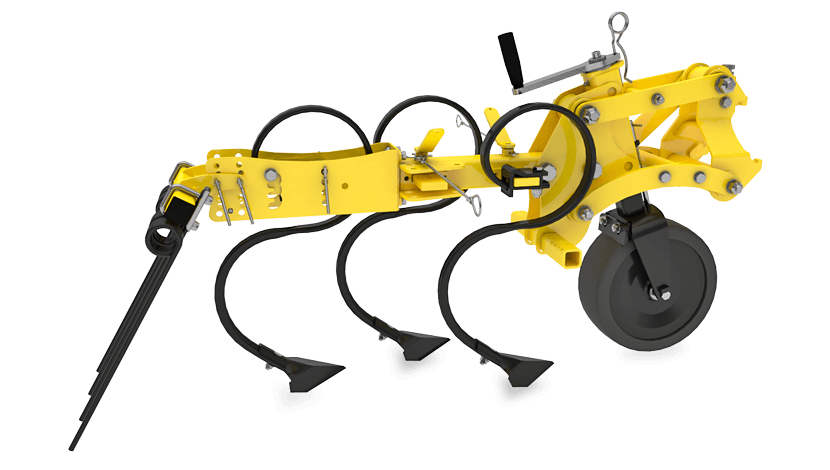

THREE TYPES OF ROW UNITS

For early spring to final weeding.

Row unit with shares
Row units with shares and points
Row units with heaping chisel

Early spring row crop cultivation can be done using 150 mm shares with 100% overlapping. This operation removes the soil crust and weeds in rows. Shares bring weed roots to the surface where they quickly wilt.

For the second weeding, the cultivator can be equipped with three 150 mm shares and two points with a width of 40 mm. The points do not damage the roots and moreover, they create a groove in the soil profile to improve water and nutrition accessibility.

The final loosening can be done using the 60 mm heaping chisel with a mouldboard. The large chisel loosens soil and removes soil crust, even very hard. The mouldboard reduces the tops. This has a direct effect on the final tuber assessment.

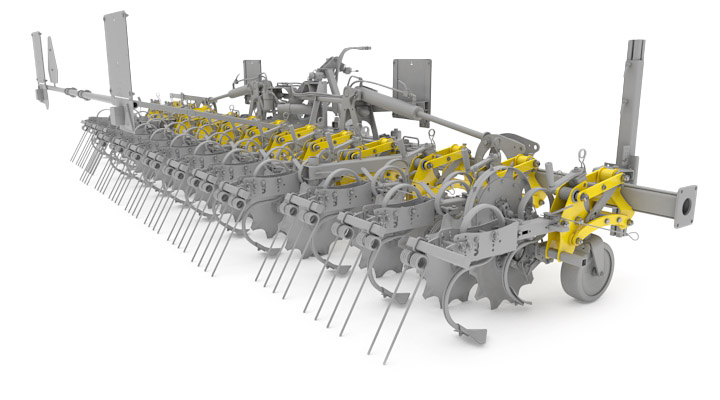

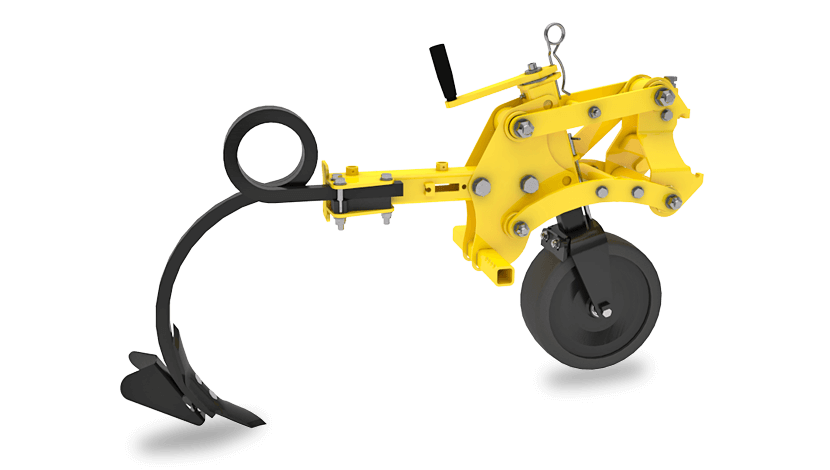

ROW UNITS MOUNTED VIA PARALLEL LINKAGE

Precise guidance in any conditions.

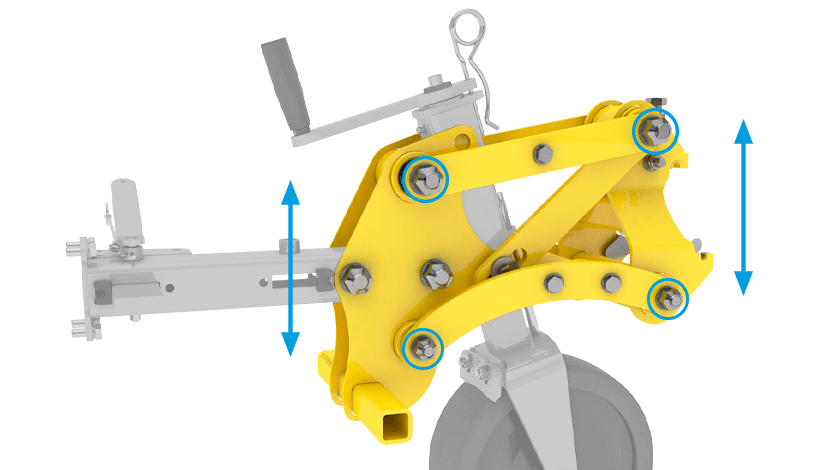

The individual row units are mounted via parallel linkage. The parallelogram contours the terrain and maintains the set working depth of the row units in a precise way. The parallel linkage completely eliminates movements caused by unevenness.

UCHYCENÍ PRACOVNÍCH SEKCÍ NA PARALELOGRAMU

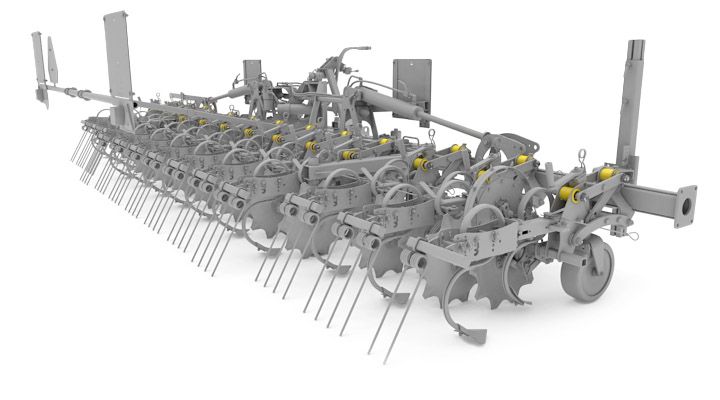

SILENT-BLOCK MOUNTING OF ROW UNITS

A unique way of increasing downforce.

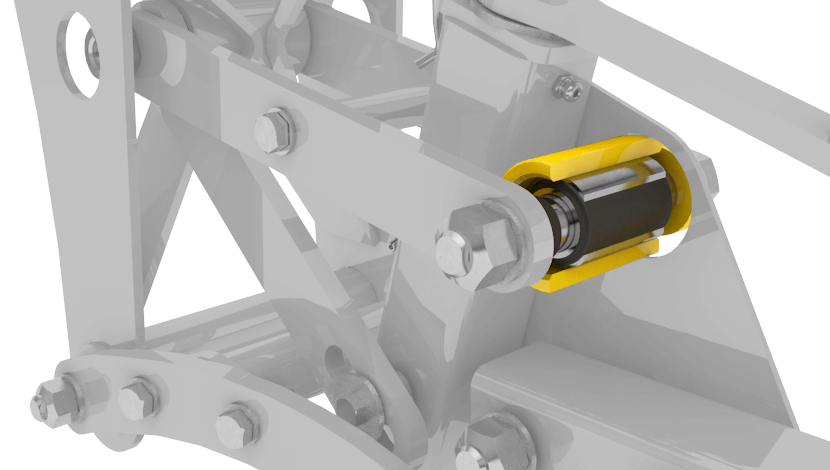

Each row units is mounted via parallel linkage, which are placed on silent-blocks. The downforce of the row units is provided by the unique method of mounting in two pairs of silent-blocks. The downforce of up to 80 kg per unit ensures that the set depth is maintained even in extremely hard and difficult conditions.

SILENTBLOKOVÉ ULOŽENÍ PRACOVNÍCH JEDNOTEK

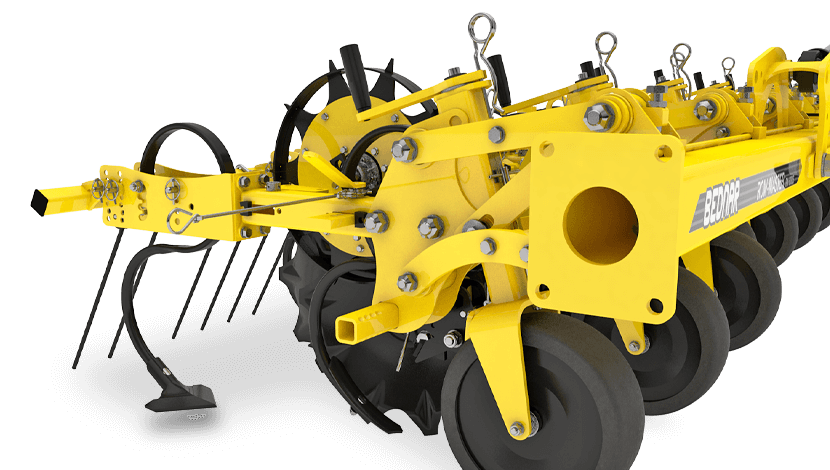

STABILISING AND SUPPORT WHEELS

For guidance and maintaining the set working depth.

The ROW-MASTER RN_S cultivator is equipped with stabilising steel wheels of the side frames that keep the cultivator within the rows. Each row unit has its own support wheel that helps maintain the set working depth and contours the terrain.

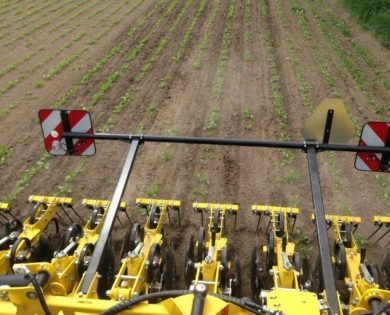

CULTICAM - AUTOMATED GUIDANCE SYSTEM

Minimising the risk of crops damages, higher output and precise loosening, even at the early growth stage.

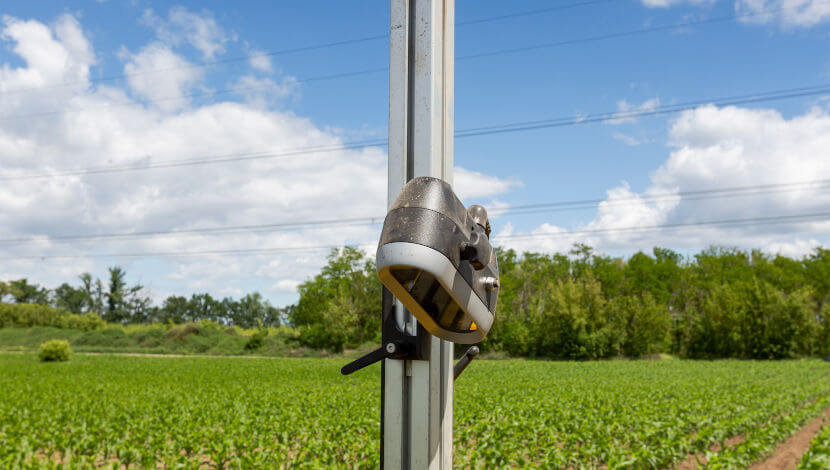

CultiCam, a guiding camera, reads the row lines, transfers the information to the system that sends data to the control unit, which transmits signals to the electric valves that move the frames to the left, or right. The camera can guide row units from the very early stage of crop emergence and it considerably increases productivity and comfort of work.

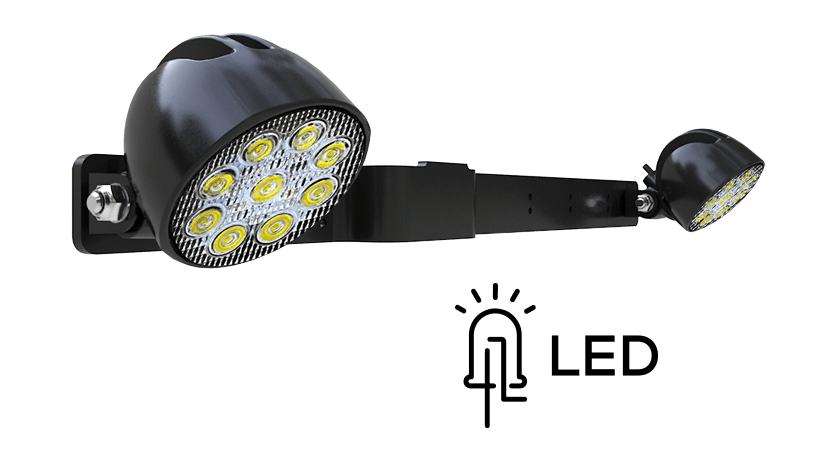

LED LIGHTING

Changes night into day.

The row crop cultivator can be equipped with a set of LED lighting that ensures trouble-free visibility around the machine during long work shifts, to guarantee maximum daily output, even when working at night.

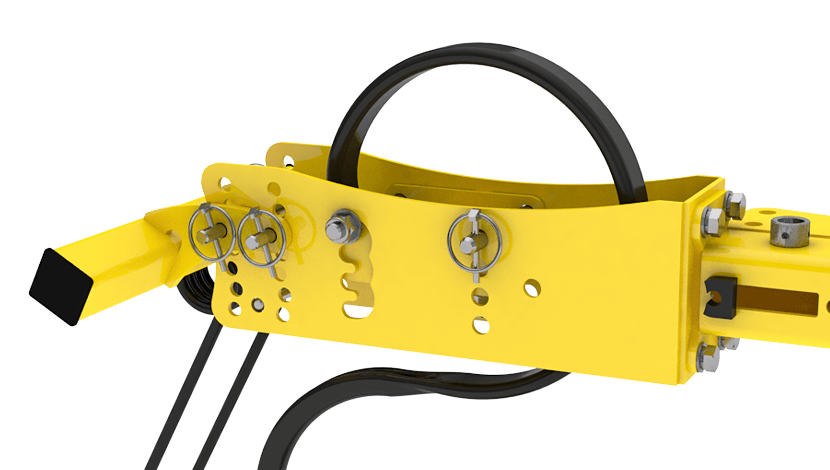

EASY ADJUSTMENT

Of row spacing and working depth.

The spacing between the individual row units can be easily changed by loosening the bolts that connect the main machine frame with the row units. The working depth of each unit is set easily using a manual screw mechanism (a crank). The working depth can be set from 2 to 12 cm.

MINERAL FERTILISER PLACEMENT

FERTI-BOX FB_F

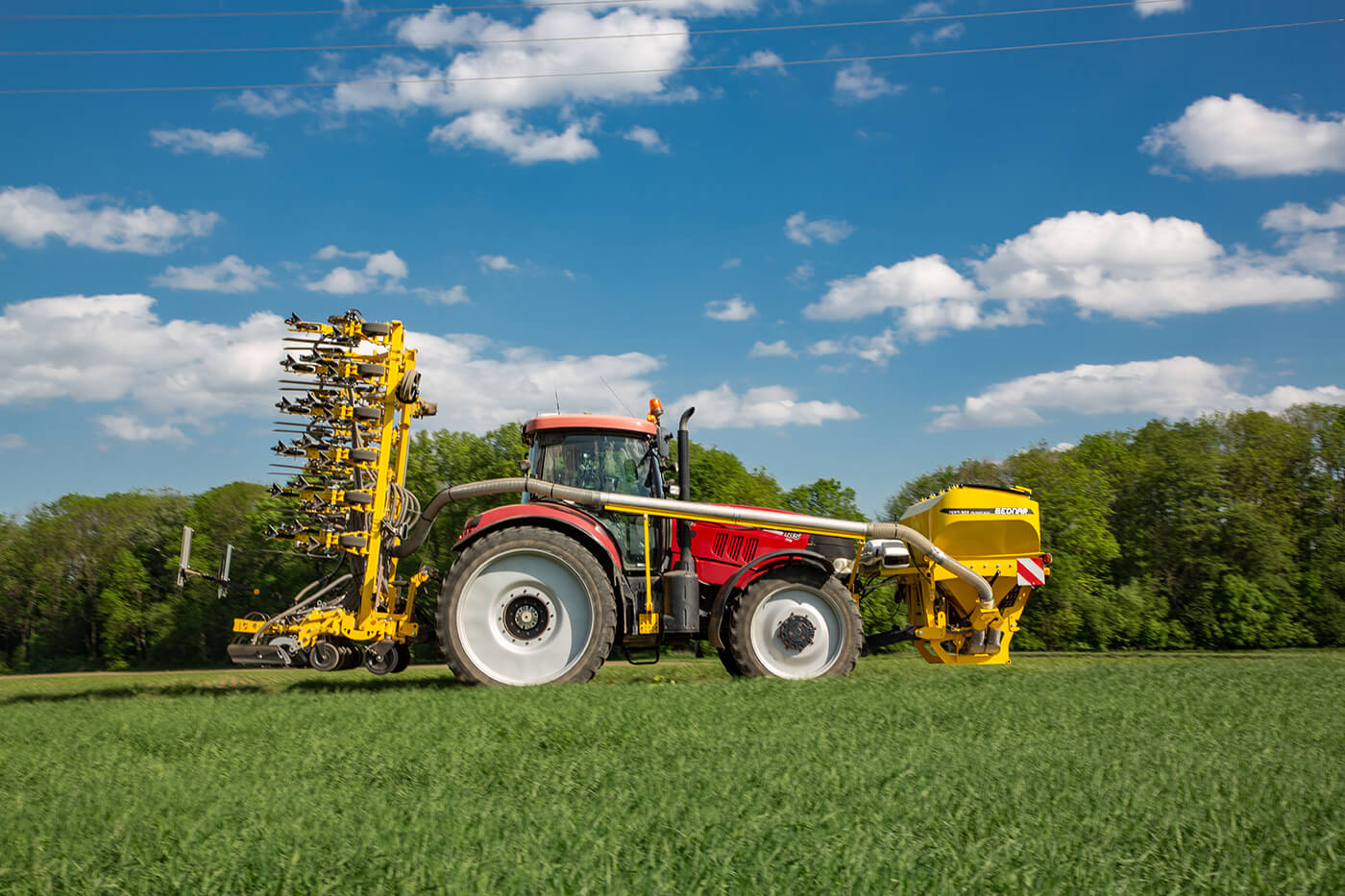

The FERTI-BOX FB_F front mounted hopper is designed for supplementary fertilisation in the soil profile and has a capacity of 1,900-2,200 litres. Fertiliser is pneumatically distributed from the front hopper to the distribution head mounted on the row-crop cultivator.

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

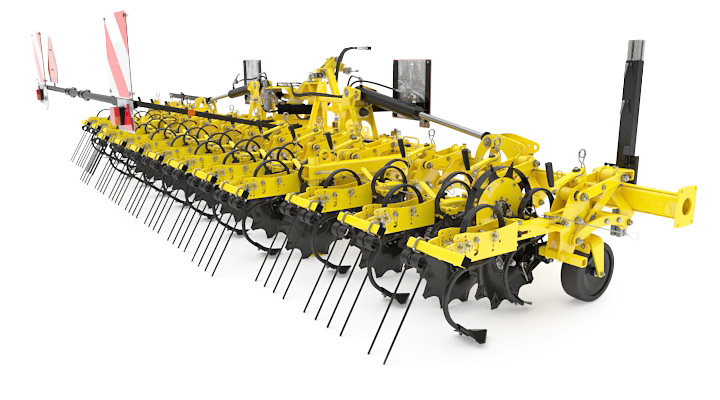

Machine description

A concise summary of the main parts of the row-crop cultivator.

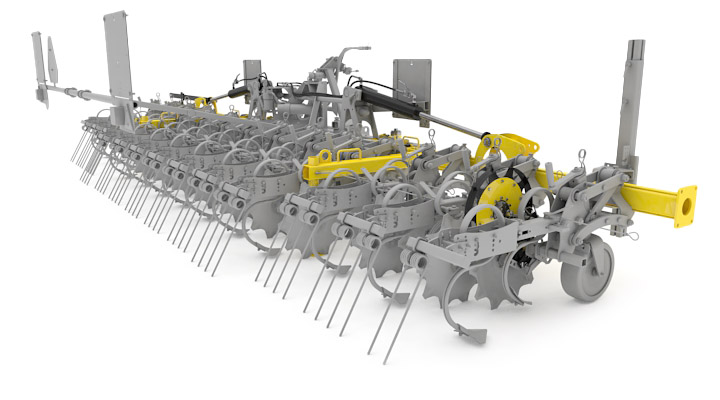

ROW-MASTER RN_S Row-Crop Cultivator for Sugar Beet

Take a look at your future machine.

Three-point hitch

Easy connection to the three-point hitch of the tractor. Category II/III hitch

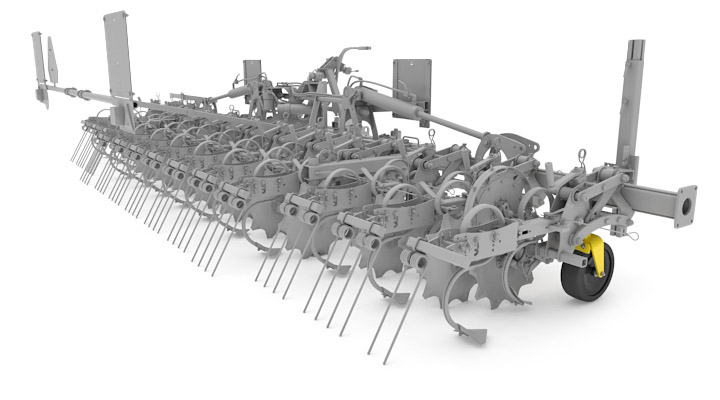

Support wheels

Maintain the set working depth and perfectly contour the terrain.

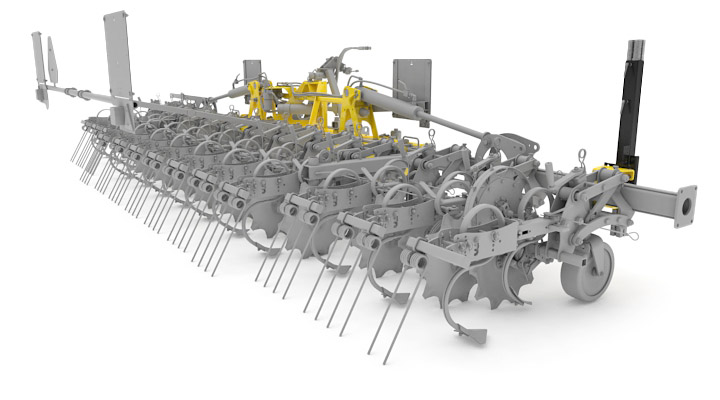

Hydraulic control

The system automatically moves the cultivator to the side based on data received from the CultiCam guidance system.

Frame

An extremely robust frame with clearance of 80 cm for weeding corn or sunflower crops.

Silent-block mounting of row units

The innovative design increases downforce and enables easy penetration of the row unit in the soil.

Row units mounted via parallelogram

The individual row units are mounted via parallel linkage. The system provides perfect terrain contouring and maintains the set working depth.

OUR INNOVATIVE TECHNOLOGIES

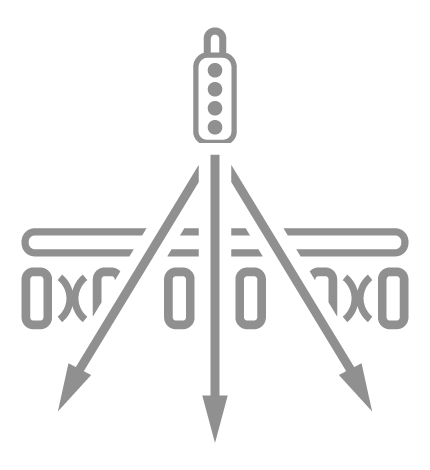

CULTICAM - AUTOMATED GUIDANCE

The system automatically guides the row-crop cultivator by reading the rows. The system then communicates with the hydraulic control (movement) that guides the row units between the rows.

$K:\1100_Marketing\WEB\Novy web - WordPress\2021\INOVATIVNI_TECHNOLOGIE\PNG_430X470$

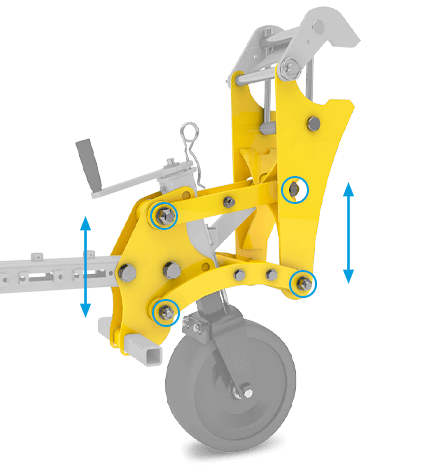

ROW UNITS MOUNTED VIA PARALLEL LINKAGE

The individual row units are mounted to the frame via parallel linkage. The design provides excellent terrain contouring and maintains the set working depth of the row units.

PARALELOGRAMOVÉ UCHYCENÍ PRACOVNÍCH JEDNOTEK

WHAT DO THE FARMERS HAVE TO SAY?

“I am very pleased with the row-crop cultivator. This year, we planted sugar beet on an area of 130 hectares. I can process about 30 hectares during a ten-hour shift. The working speed is around 6.5 km/h; the machine could work faster but it’s quality that matters, we do not want the sugar beet covered by soil. It all depends on the conditions and the size of sugar beet. Operation is easy. It is a smart machine – it notifies you when there is a problem. Working with the camera for automatic guidance is perfect. I also appreciate the easy maintenance and machine design with maintenance-free systems, as well as the simple working depth setting without the need to use a special tool. It takes me about ten minutes to pre-set the depth.”

Tomáš Bartoš, Machine Operator
UNIAGRO, s.r.o.

Accessories

We know that everyone has different requirements for the optional machine equipment and its expected use. Therefore, you can specify your own ROW-MASTER RN row-crop cultivator to precisely match your needs.

Optional equipment for plant protection

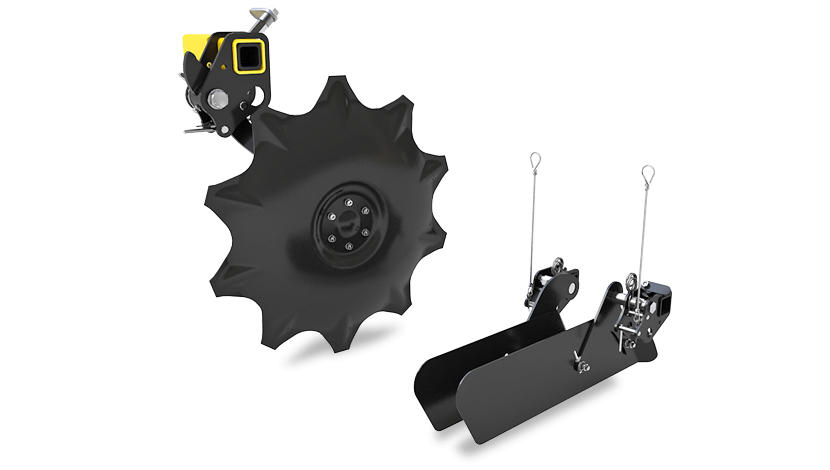

Protective discs

The specially shaped protective discs of the row units define the cultivation width – they protect leaves and roots. The discs also prevent covering crop rows with soil and weed seeds.

Protective shields

The shields define the cultivation width and protect leaves and roots. They prevent covering crop rows with soil and weed seeds.

Other

Automated guidance

CultiCam reads two or three rows (according to the crop) and assesses the vegetation, then transmits the information to the electronic system, which communicates with the hydraulic control of the cultivator. The control guides the row-crop cultivator so that the row units work in the inter-rows, right next to the plants.

Automatické naváděníAutomatické navádění

CONFIGURE YOUR OWN
ROW-MASTER RN_S Row-Crop Cultivator for Sugar Beet

You are one step closer to your new machine.
You can try all the optional equipment in our configurator,
or read more about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

ROW CROP CULTIVATION
Weeding improves the physical properties of soil nutrient intake by plants, and the condition of vegetation. Row crop cultivation has a weeding effect, which reduces the consumption of herbicides. Row crop cultivation also has a soil-protecting effect. The loosened soil layer in the inter-row prevents fast drainage of surface water, and reduces the risk of water and air erosion. Liquid or solid fertilisers can be applied whilst weeding, thus improving the overall condition of the crop.

Advantages of inter-row cultivation

Technical data

The table can be navigated by scrolling sideways.

ROW-MASTER RN_S		RN 6000 S	RN 9000 S	RN 12000 S
Working width	m	6	9	12,4
Transport width	m	3	3	3
Transport length	m	2,3	2,3	2,3
Transport height	m	2,9	3,7	3,8
Number of rows	pcs	12	18	24
Inter-row distance	cm	45 / 50	45 / 50	45 / 50
Working depth*	cm	2 - 10	2 - 10	2 - 10
Frame clearance	cm	42	42	42
Camera guidance		yes	yes	yes
Power demand*	hp	80 - 150	120 - 180	160 - 250
Frame type		folding	folding	folding
Max. total weight**	kg	1900	2470	3100

* depends on soil conditions ** according to the machine equipment

At BEDNAR we work continuously to keep the information on this website accurate, up-to-date and useful. As we are dedicated to improving your experience and best farming performance, some specifications may be enhanced beyond what is currently shown. Complete technical specifications will be confirmed with your authorized BEDNAR representative at the time of ordering.
