A ROLLER FOR QUALITY SOIL CRUMBLING AND SOIL RECONSOLIDATION

GALAXY GE is a trailed land roller with a low center of gravity, high throughput, and the ability to achieve perfect surface contouring. GALAXY GE rollers are designed for uniform soil profile leveling, effective clod crumbling, and reverse soil consolidation.

20' 8" -27' 3" ft

80-150 hp

Key properties

GALAXY GE is a trailed roller that provides outstanding clod crumbling and soil reconsolidation. When used in combination with the front Crushbar levelling bar, it also ensures high-quality levelling of the rough furrow.

3 to 5 SECTIONS – A ROLLER FOR EVERY FARM SIZE

Adapted width and design for different fieldwork capacities.

The GALAXY GE 6300 and 8300 feature a 3-section layout, ideal for medium-sized farms seeking efficiency and consolidation. The new GALAXY GE 12300, with its 5-section frame and 12.3 m working width, ensures optimal contour following and maximum productivity for large-scale operations.

HIGH QUALITY CAST-IRON RINGS

Designed for the hardest conditions.

BEDNAR employs rings made of high-strength, quality cast steel in GALAXY GE machines. The cast steel exhibits minimal wear and can endure rocky conditions over the long term.

Galaxy_GE_8300_plastova_ALFA_zadni_pohled1

HYDRAULIC DOWN PRESSURE ON SECTIONS

Always the same pressure on each working section.

The individual sections of the GALAXY GE packer overlap and allow for independent surface tracing with a continuous down pressure on each working section thanks to the hydraulic system. The hydraulic down pressure of the sections guarantees even weight distribution among the individual sections.

COMPRESSING SPRING

A smart solution that eliminates slackness between the individual rings.

Our experience with rollers has shown that the more hectares the machine has worked, the more slackness there is between the individual rings. BEDNAR has developed a simple and functional solution to address this issue. The spring on the shaft consistently applies pressure to the individual rings, preventing slackness. This design ensures that the rollers can operate for many hectares without maintenance, which is typically necessary to push the rings back into their original position.

CRUSHBAR LEVELLING BAR

For even levelling of the rough furrow.

Crushbar is a hydraulically controlled, front levelling bar consisting of broad paddles that work on rods made of quality spring steel. The hydraulic control from the tractor cabin allows the operator to quickly change the aggressiveness of work according to the conditions so that the Crushbar levelling bar can create a levelled field.

STORAGE SPACE FOR ROCKS

A design that saves time.

The roller can be equipped, on request, with a sufficiently large storage space for rocks. It eliminates the need to spend time picking up rocks. This job can be performed effectively at the same time.

Galaxy_GE_8300_ALFA_Odkladaci_prostor_kameni

ALFA DRILL SEEDING UNIT

Application of microgranulate or seeds in one pass.

The BEDNAR ALFA DRILL unit can be installed on the GALAGY GE roller, as standard, for catch crop seeding, fine seeds or for applying microgranulate. In one pass, the soil profile is levelled and seeds are sown or the fertiliser is applied. The seeding unit has a capacity of 800 litres.

ARE YOU INTERESTED IN THIS IMPLEMENT? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Machine description

Take a look at your future machine.

Drawbar

The hydraulic drawbar contributes to continuous terrain tracing and easy connection to various types of tractor hitches.

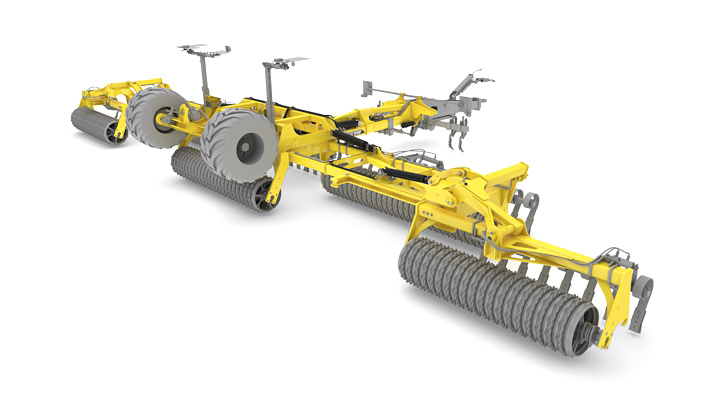

Robust frame

It increases the durability of the machine and resistance to shocks that affects the frame during work.

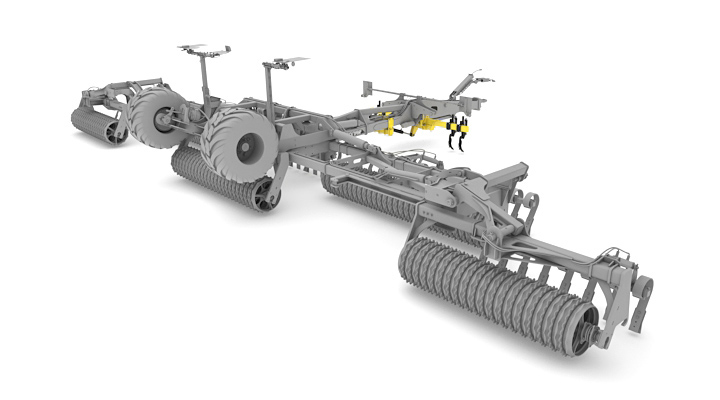

Tractor track cultivators

The track cultivators are used for loosening hardened tracks created by the towing vehicle.

Storage space for rocks

It is used for storing rocks and other items found in the field during work.

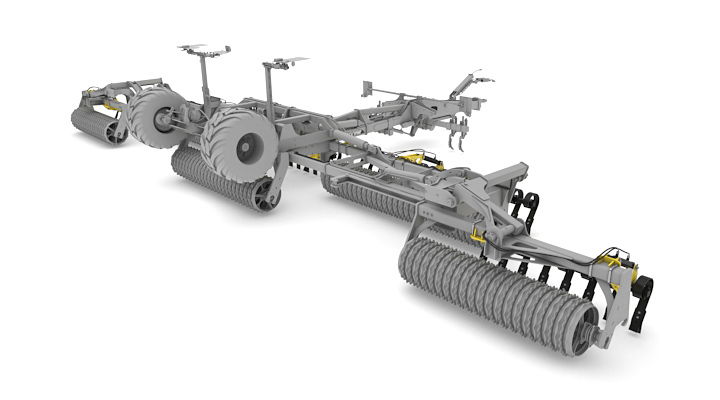

Front Crushbar paddle levelling board

The hydraulically controlled Crushbar is used for levelling unevenness and breaking the rough furrow.

ALFA DRILL seeding unit

It is used for application of microgranulate, fertilizer or various types of seeds in one pass.

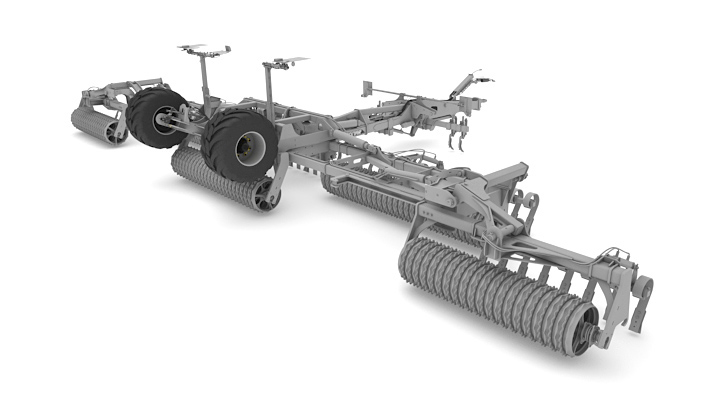

Transport axle

The transport axle equipped with brakes and wide tyres increases machine safety and stability during transport.

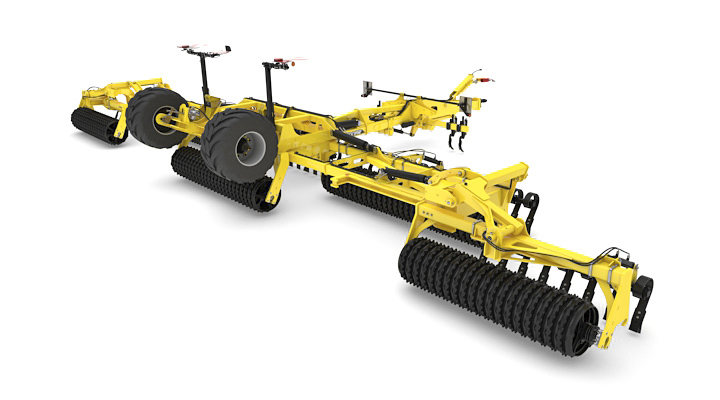

GALAXY GE roller

Take a look at your future machine.

Robust frame

It increases the durability of the machine and resistance to shocks that affects the frame during work.

Tractor track cultivators

The track cultivators are used for loosening hardened tracks created by the towing vehicle.

Front Crushbar paddle levelling board

The hydraulically controlled Crushbar is used for levelling unevenness and breaking the rough furrow.

ALFA DRILL seeding unit

It is used for application of microgranulate, fertilizer or various types of seeds in one pass.

Transport axle

The transport axle equipped with brakes and wide tyres increases machine safety and stability during transport.

OUR INNOVATIVE TECHNOLOGIES

COMPRESSING SPRING

The spring on the shaft of the GALAXY GE roller exerts continuous pressure on the individual rings. This prevents the formation of spacing. The roller can work many acres without maintenance, which is usually required to push the rings into the original position.

CRUSHBAR LEVELLING BAR

The front hydraulic Crushbar allows the operator to ideally adjust the working angle of the levelling bar, according to the field conditions, from the comfort of the cabin. It is possible to achieve savings of up to 0,11 gallons of diesel per acre with the Crushbar.

Accessories

Other

ALFA-DRILL SEEDER 800

It is used for seeding cover crops, grasses, or for all-area fertilizer application. You can do two operations in one pass and reduce your costs.

<![CDATA[Plastova_ALFA_8001]]><![CDATA[Plastova_ALFA_8001]]>

Tractor track eradicators

The track eradicators consist of two sweeps on each side. Each shank is protected with a spring. The track eradicators are used for loosening hardened tracks created by the tractor.

<![CDATA[Galaxy_GE_8300_ALFA_Kyprice_stop_traktoru]]><![CDATA[Galaxy_GE_8300_ALFA_Kyprice_stop_traktoru]]>

CONFIGURE YOUR OWN
GALAXY GE roller

You are one step closer to your new implement.
You can try all the implements in our configurator,
or read about it in the brochure.

Configure Brochure

Technical data

The table can be navigated by scrolling sideways.

GALAXY GE		GE 6300	GE 8300	GE 12300
Working width	ft	20' 8"	27' 3"	40' 4"
Transport width	ft	9' 10"	9' 10"	9' 10"
Transport length	ft	19' 8"	19' 8"	23' 7"
Transport height	ft	9' 2"	9' 2"	10' 2"
Diameter of packer	in	19.8" - 20.8"	19.8" - 20.8"	19.8" - 20.8"
Number of working sections	pcs	3	3	5
Horsepower requirement*	hp	80 - 130	100 - 150	160 - 250
Hitch type		51, 40 lug / K80 ball	51, 40 lug / K80 ball	51, 40 lug / K80 ball
Tire size		500/50-17	500/50-17	500/50-17
Max. total weight**	lb	11,175	13,765	21,539
