ROW-MASTER RN Row-Crop Cultivator

Home Row cultivation, strip-till Row-crop cultivators ROW-MASTER RN Row-Crop Cultivator

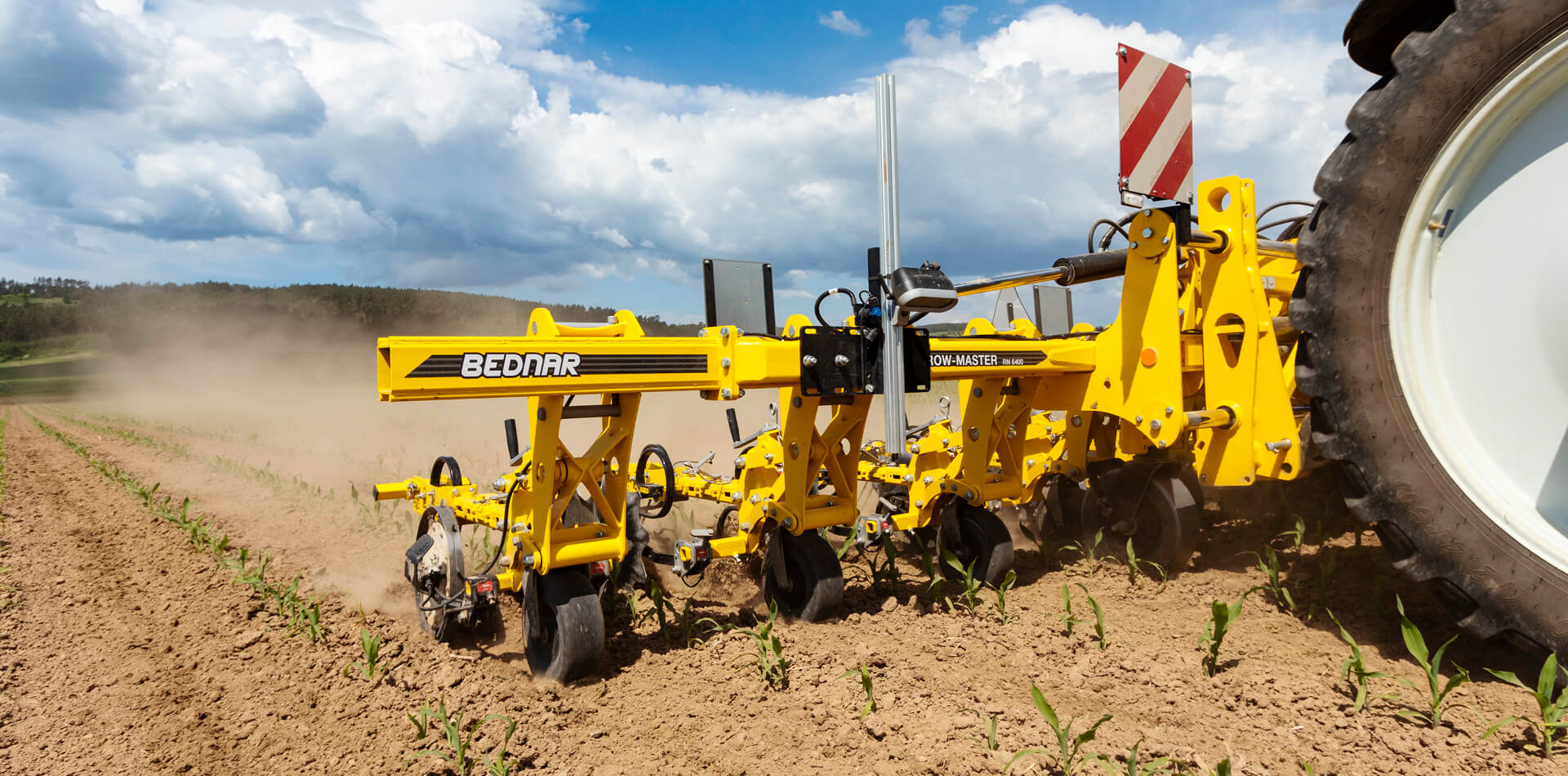

AN ROW-CROP CULTIVATOR WITH A HIGH VERSATILITY

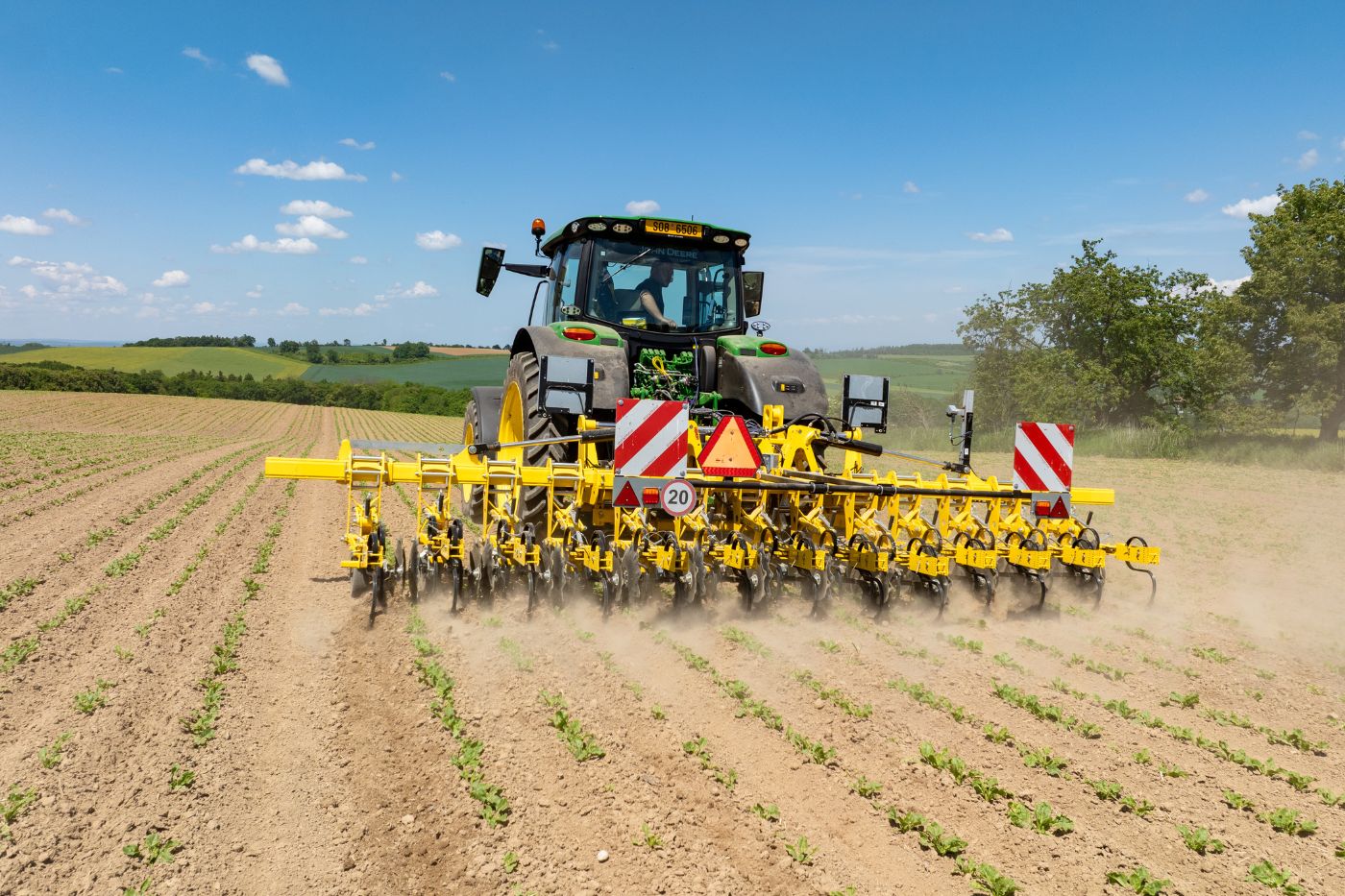

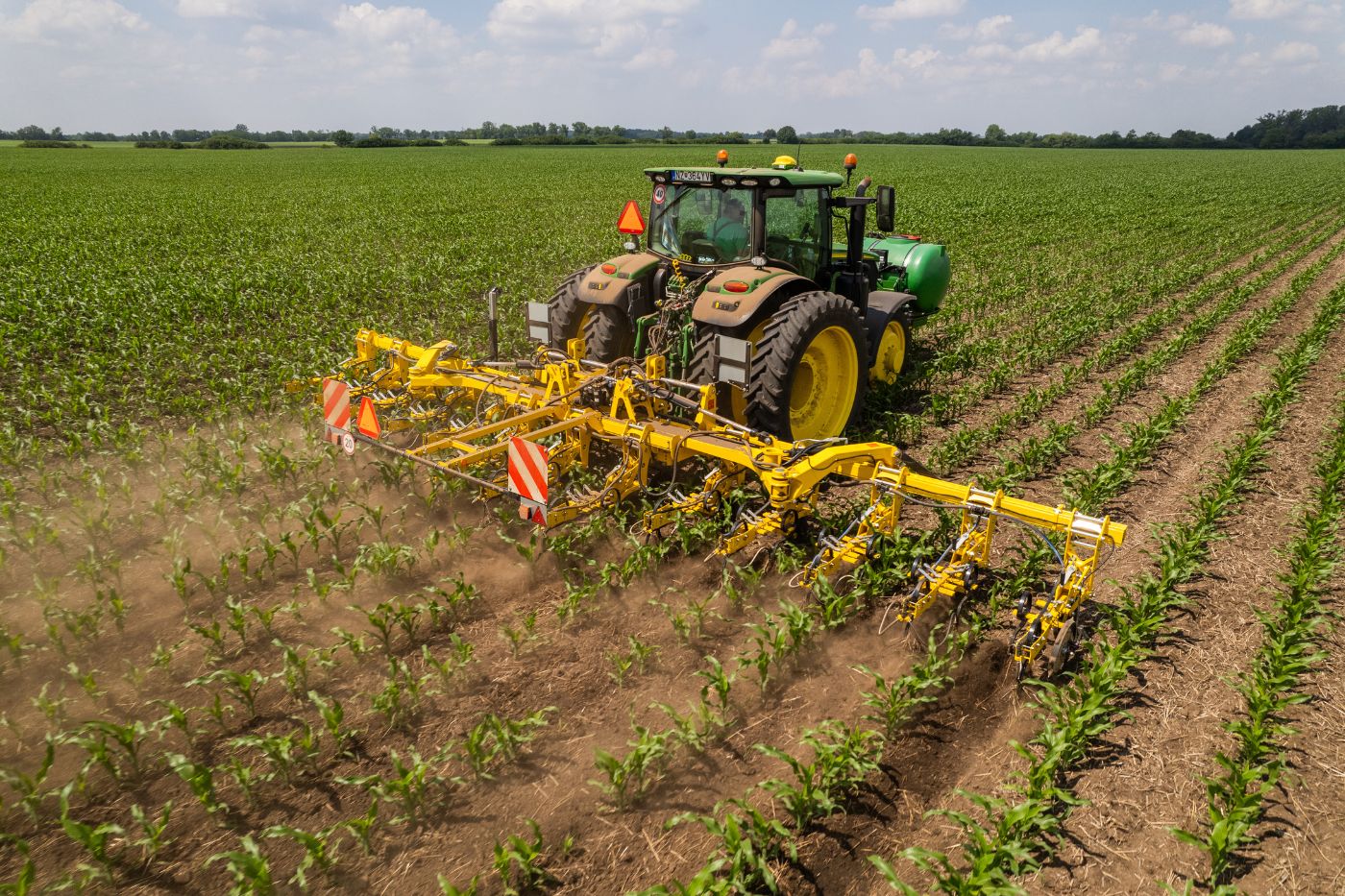

The ROW-MASTER RN cultivator has a robust frame with excellent versatility in weeding, removing soil crust, and eliminating weeds in row crops. The adjustable row spacing from 45 to 80 centimetres makes it possible to use ROW-MASTER in the crops of maize, sunflower or sugar beet. To reduce the risk of damaging plants and to achieve a high output, the cultivator can be equipped with the self-guiding CultiCam system.

2-10 cm

4,8 -9,6 m

60 -150 hp

Key properties

A row-crop cultivator that eliminates the occurrence of weeds in row crops with an adjustable row spacing of 45-80 centimetres.

VERSATILE ROW-MASTER RN

With high frame clearance.

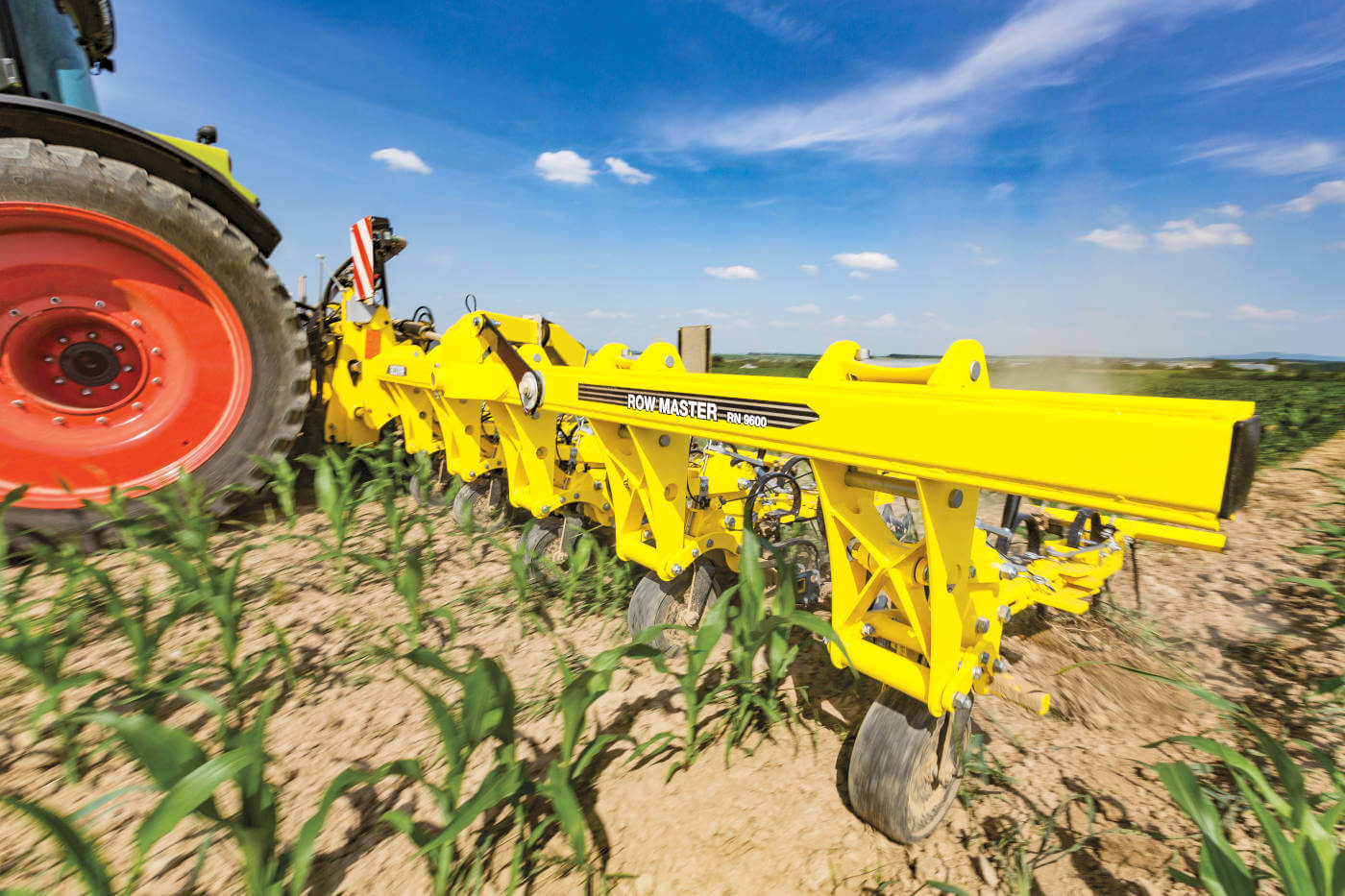

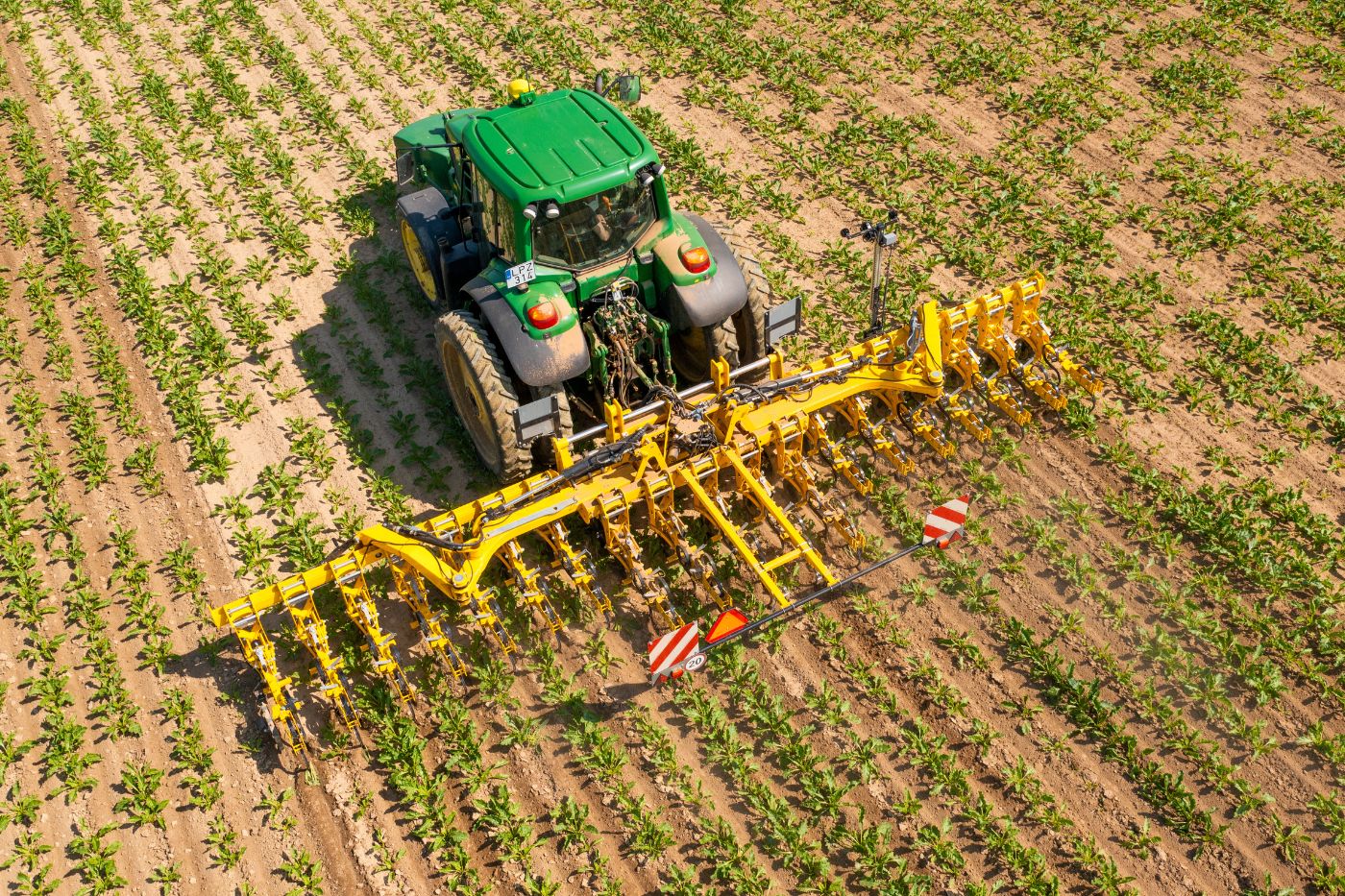

The machine has a frame with high clearance of 80 centimetres that provides excellent throughputs even in tall stands. This design offers an easy weeding of row crops, such as maize and sunflower, but the adjustable row spacing allows to weed a wide range of crops, like sugar beet or rapeseed. The row spacing can be easily adjusted by moving the row unit along the frame.

ONE FRAME, MANY EQUIPMENT OPTIONS

Modify your machine according to your conditions.

The different types of row units make it possible to adjust the cultivator to the current growth stage of the crop so that loosening is performed as best as possible and without the risk of crop damage. Plant protection is ensured by the protective discs or protective shields.

THREE TYPES OF ROW UNITS

To adjust to the growth stage and crop.

Row unit with shares

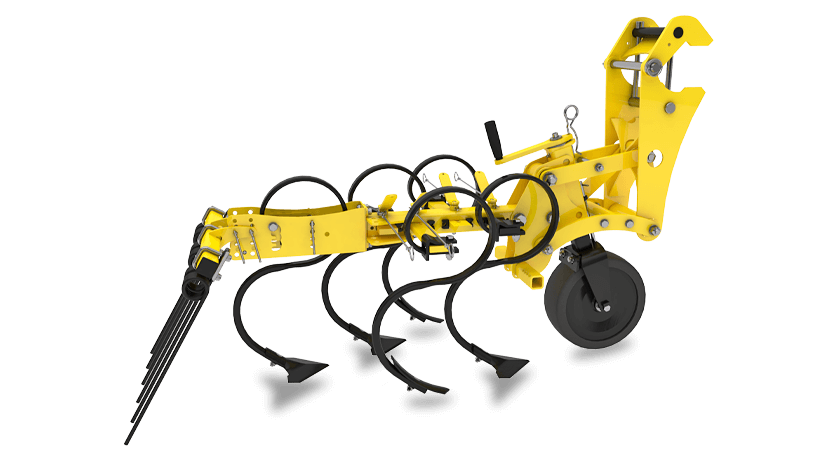

Row unit with shares and points

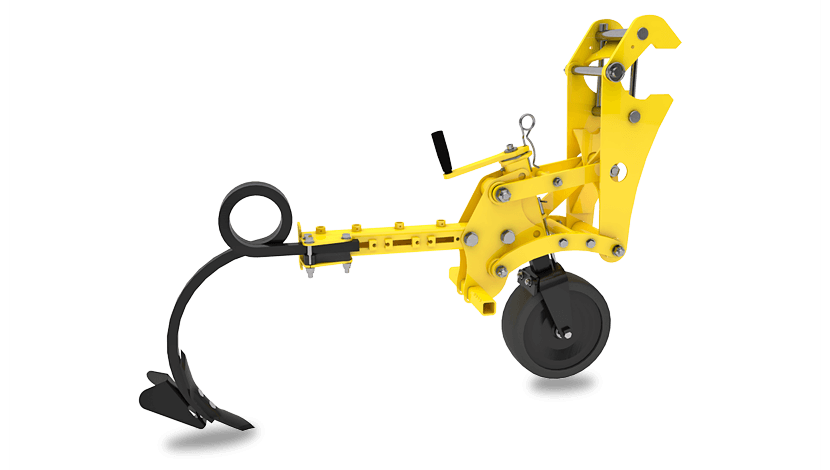

Row unit with heaping chisel

The section with five arrow shares is usually used for early spring loosening of young crop with 100% overlapping of the row space. This operation removes the soil crust and weeds in rows.

For the second weeding, the cultivator can be equipped with three 150 mm shares and two narrow points with a width of 40 mm. The points do not damage the plant air roots and moreover, they create a groove in the soil profile that improves access of roots to water and air.

The final loosening can be done using the 60 mm heaping chisel with a mouldboard. The large chisel loosens soil and removes soil crust, even very hard.

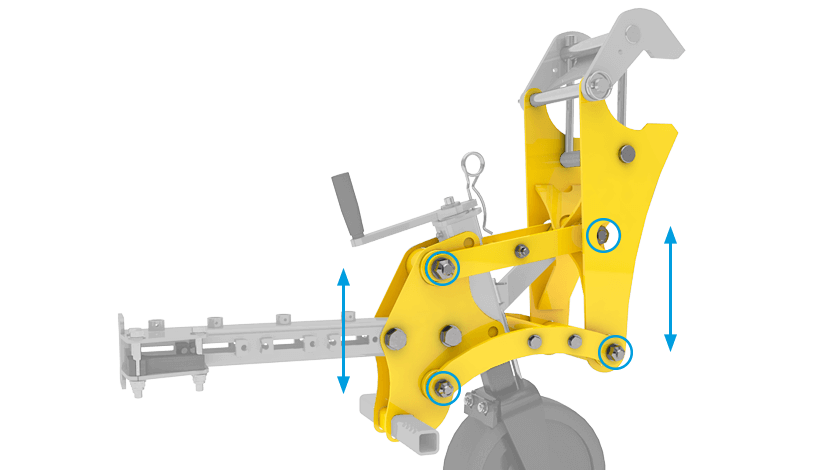

EACH ROW UNIT IS MOUNTED VIA PARALLEL LINKAGE

Precise guidance in any conditions.

The individual row units are mounted to the frame via parallel linkage. The parallelogram contours the terrain and maintains the set working depth of the units. The parallel linkage completely eliminates movements caused by unevenness.

UCHYCENÍ PRACOVNÍCH SEKCÍ NA PARALELOGRAMU

SILENT-BLOCK MOUNTING OF ROW UNITS

A unique way of increasing downforce.

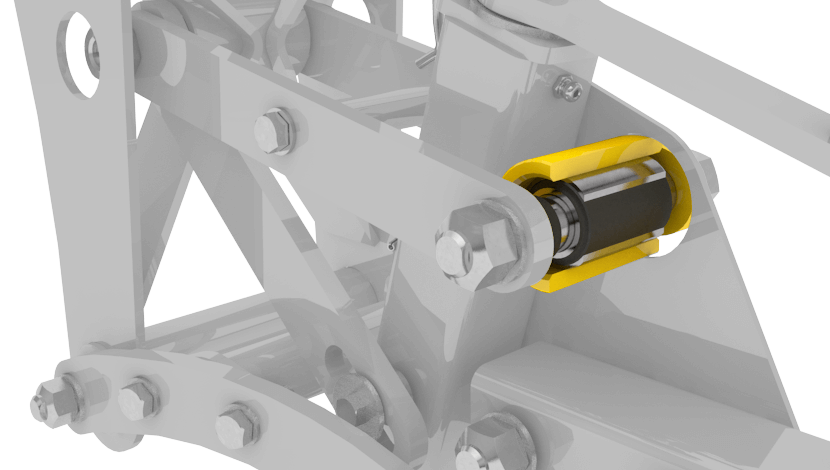

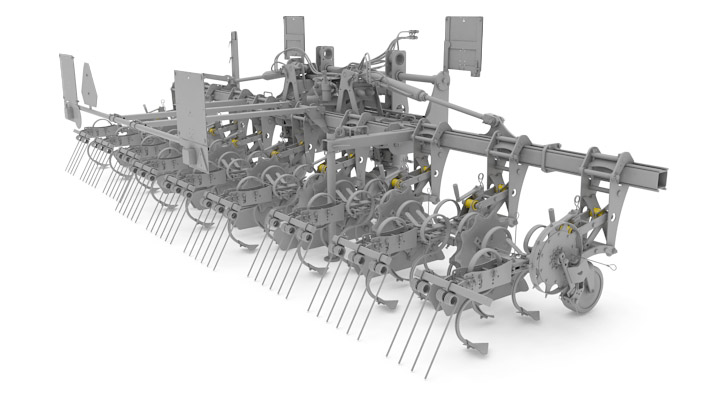

Each row unit is mounted via parallel linkage which is placed on silent-blocks. The downforce of the row units is provided by the unique method of mounting in two pairs of silent-blocks. The downforce of up to 80 kg per unit ensures that the set depth is maintained even in extremely hard and difficult conditions.

SILENTBLOKOVÉ ULOŽENÍ PRACOVNÍCH JEDNOTEK

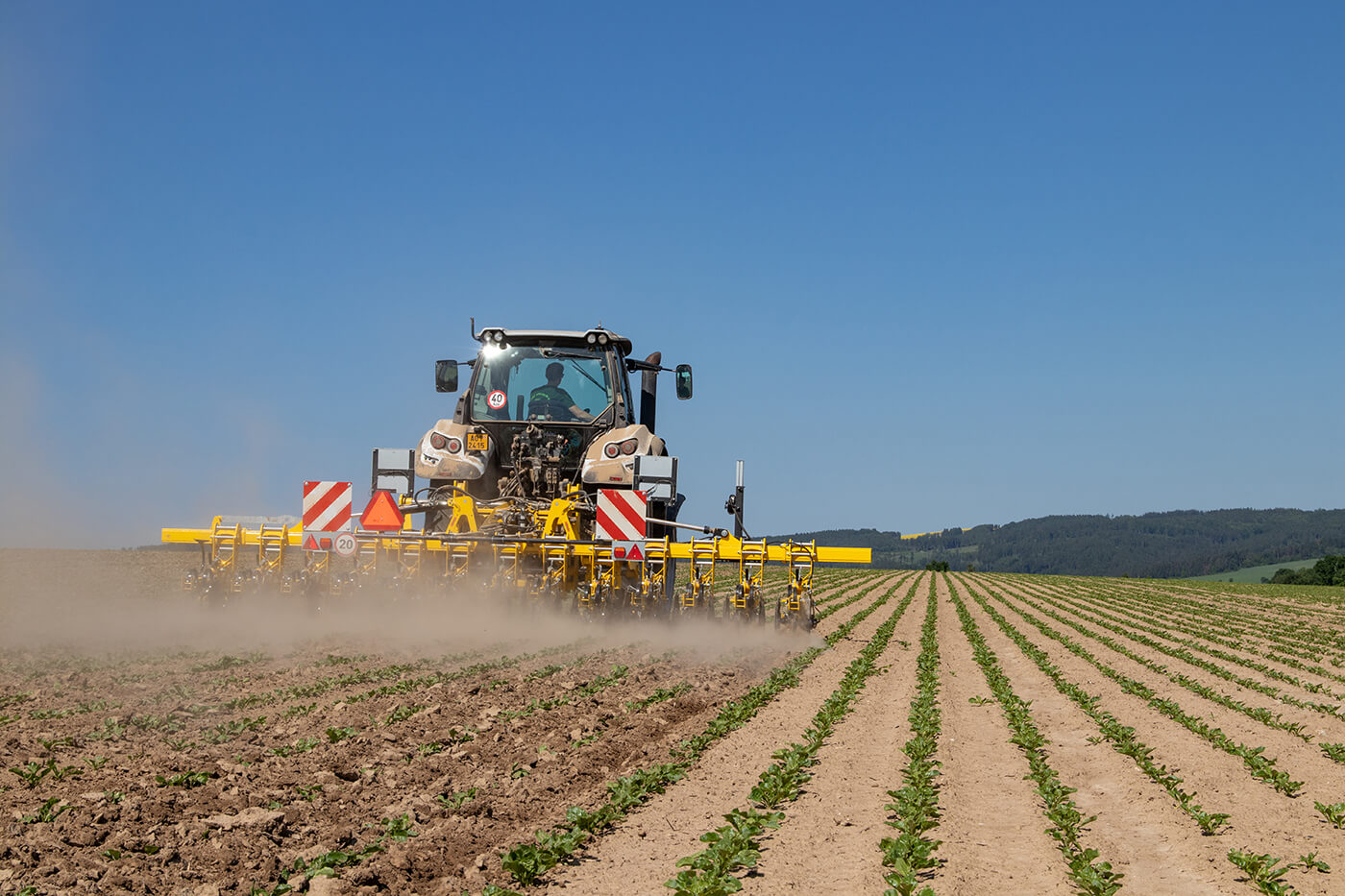

LED WORK LIGHTING

Changes night into day.

The row-crop cultivator can be equipped with a set of LED work lighting that ensures trouble-free visibility around the machine during long work shifts, to guarantee maximum daily output, even when working at night.

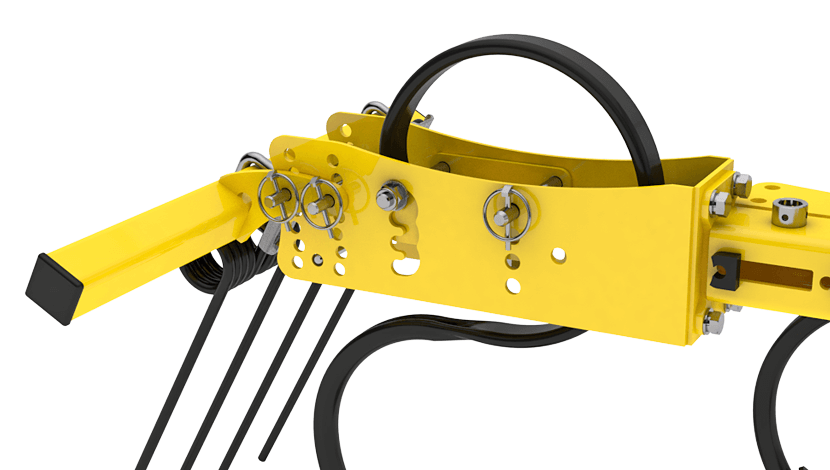

EASY SETTING

Of row spacing and working depth.

The spacing between the individual row units can be easily changed by loosening the bolts that connect the main machine frame with the row units. The working depth of each unit is set easily using a manual screw mechanism (a crank). The working depth can be set from 2 to 12 cm.

STABILISING AND SUPPORT WHEELS

For guidance and maintaining the set working depth.

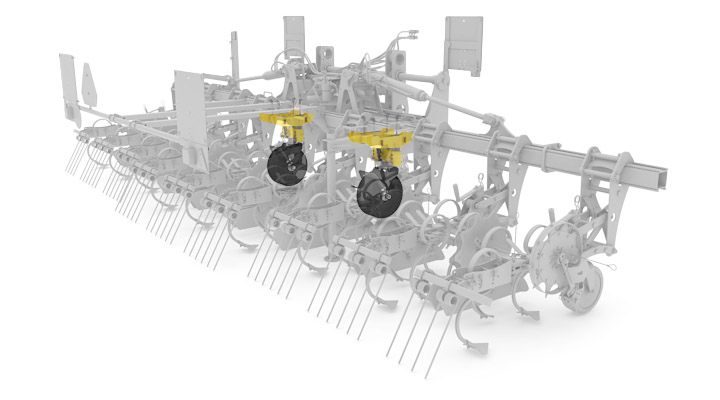

The ROW-MASTER RN cultivator is equipped with stabilising steel wheels of the side frames that keep the cultivator within the rows. Each row unit has its own support wheel that helps maintain the set working depth and contours the terrain.

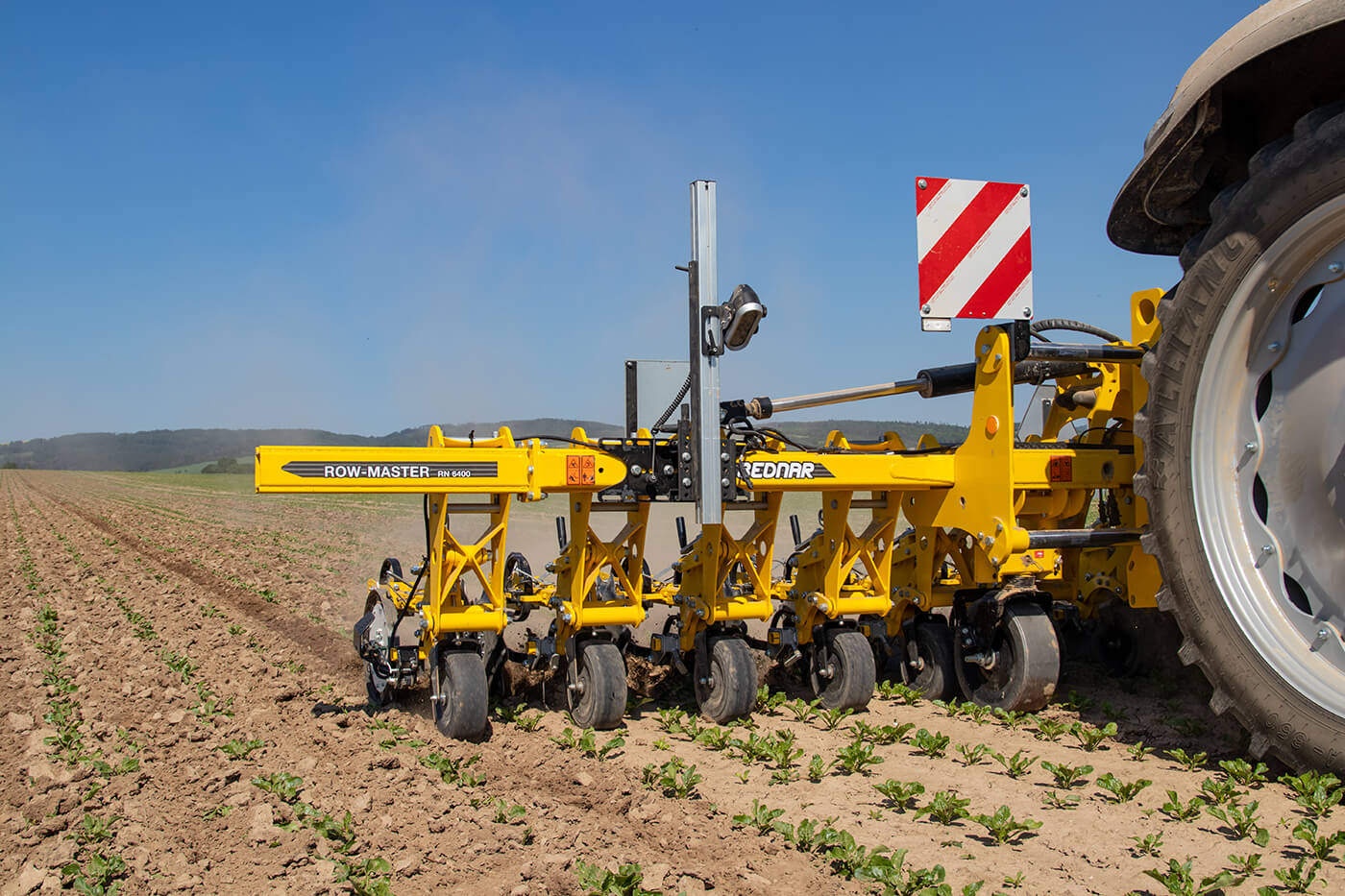

CULTICAM - AUTOMATED GUIDANCE SYSTEM

Minimising the risk of crops damages, high output and precise loosening, even at the early growth stage.

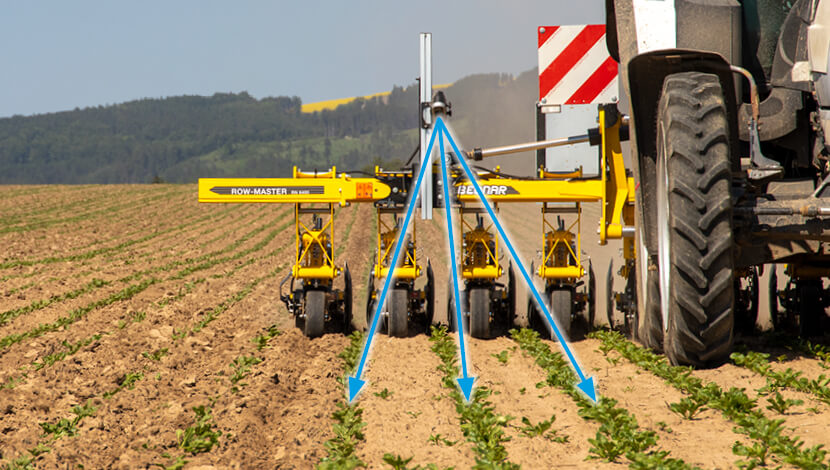

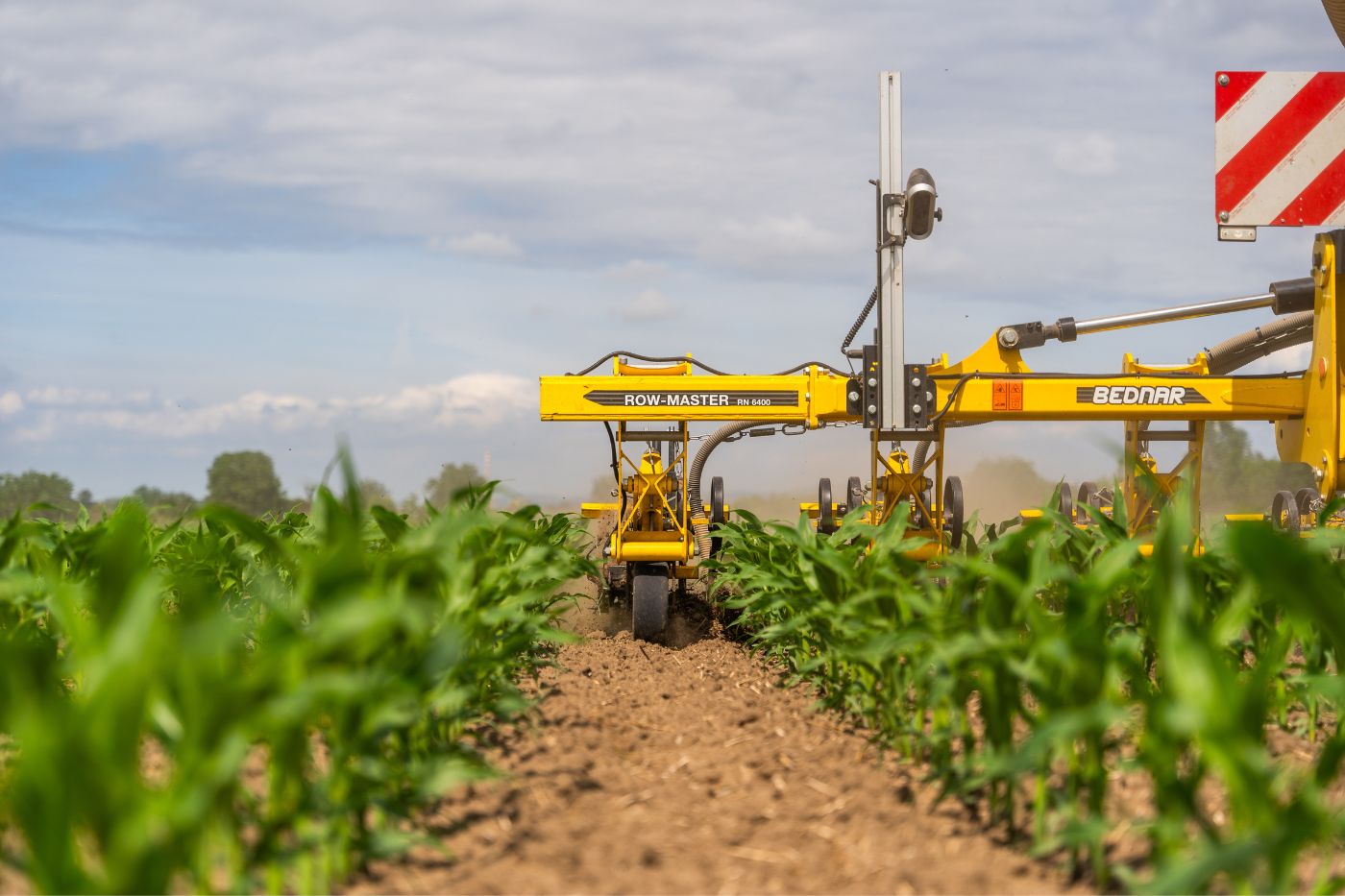

CultiCam, a guiding camera, reads the row lines, transfers the information to the system that sends data to the control unit, which transmits signals to the electric valves that move the frames to the left, or right. The camera can guides the row units from the very early stage of crop emergence and it considerably increases productivity and comfort of work.

MINERAL FERTILISER PLACEMENT

FERTI-BOX FB_F

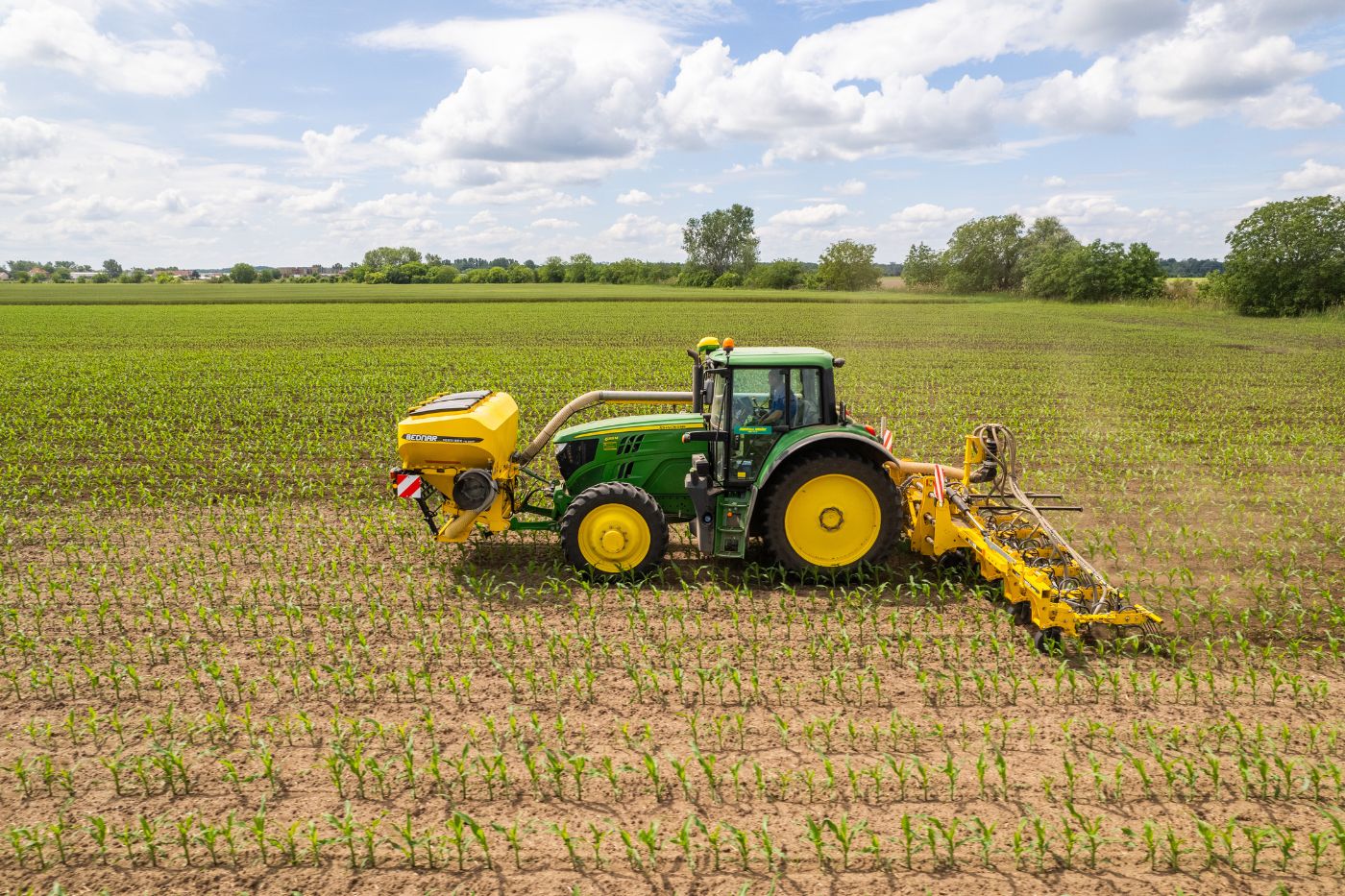

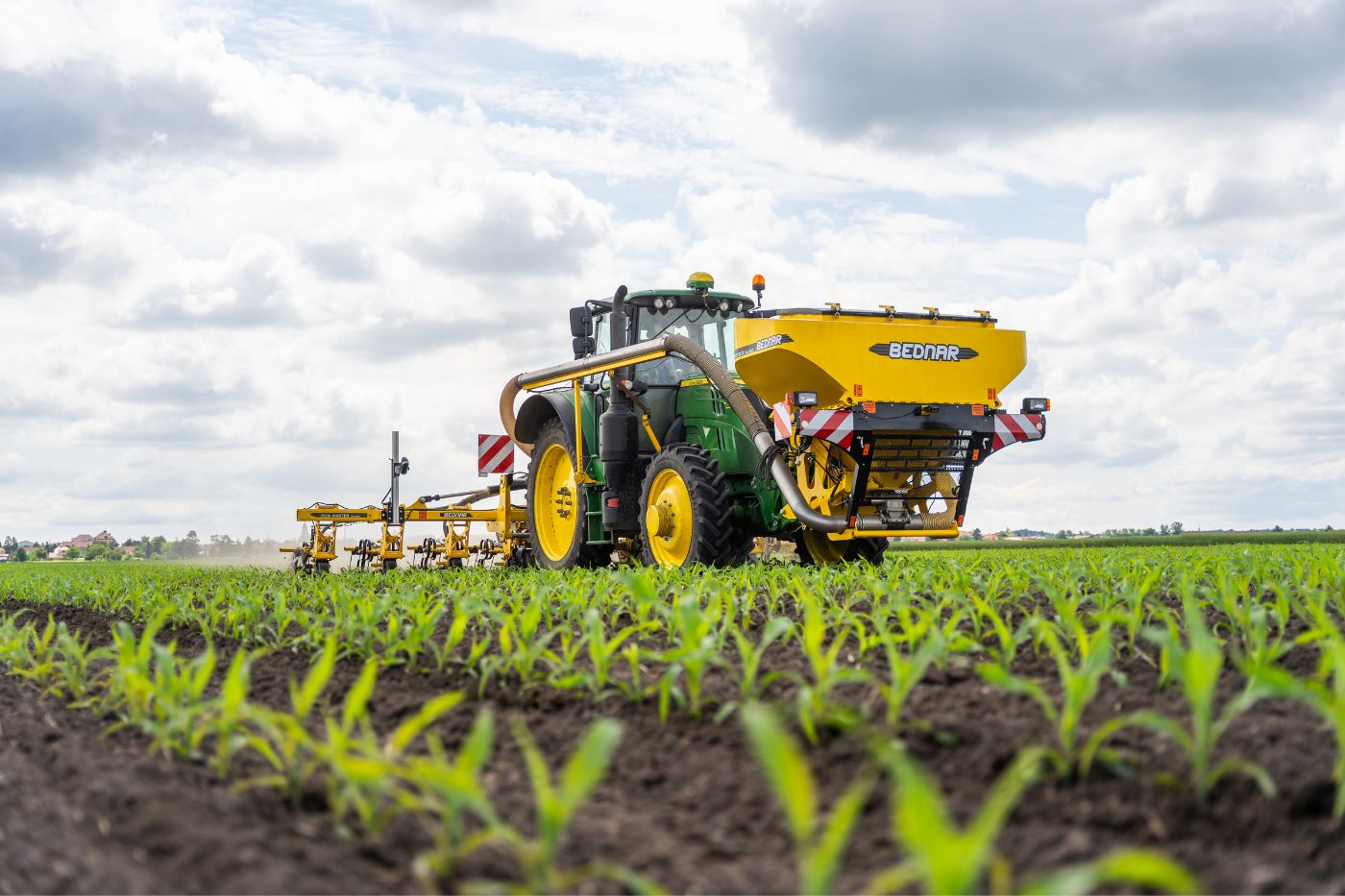

The FERTI-BOX FB_F front mounted hopper is designed for supplementary fertilisation in the soil profile and has a capacity of 1,900-2,200 litres. Fertiliser is pneumatically distributed from the front hopper to the distribution head mounted on the row-crop cultivator.

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Machine description

A concise summary of the main parts of the versatile row-crop cultivator.

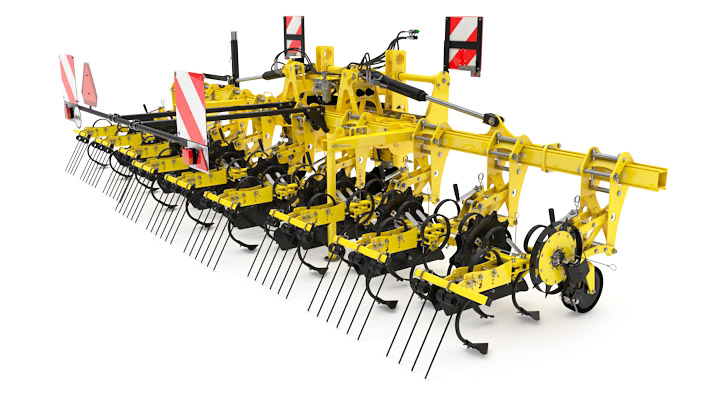

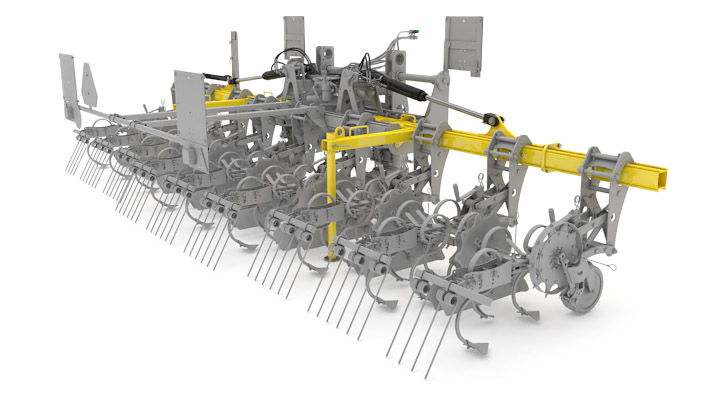

ROW-MASTER RN Row-Crop Cultivator

Take a look at your future machine.

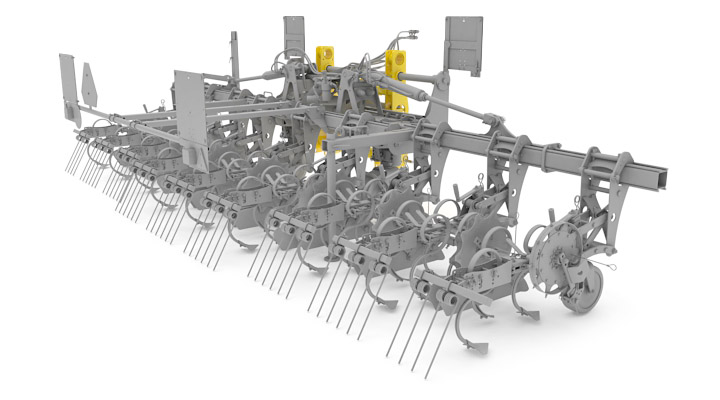

Three-point hitch

Easy connection to the three-point hitch of the tractor. Category II/III hitch.

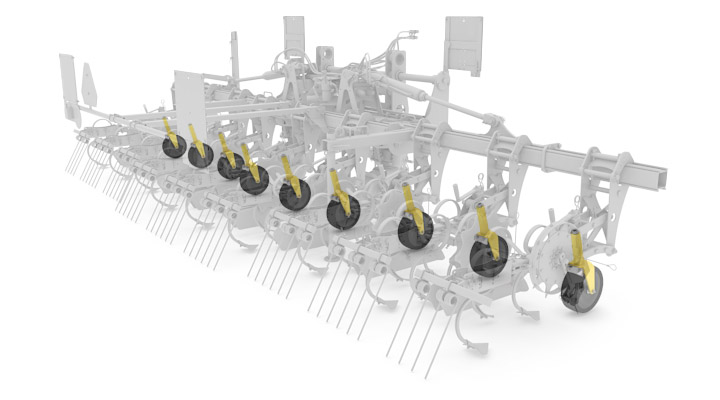

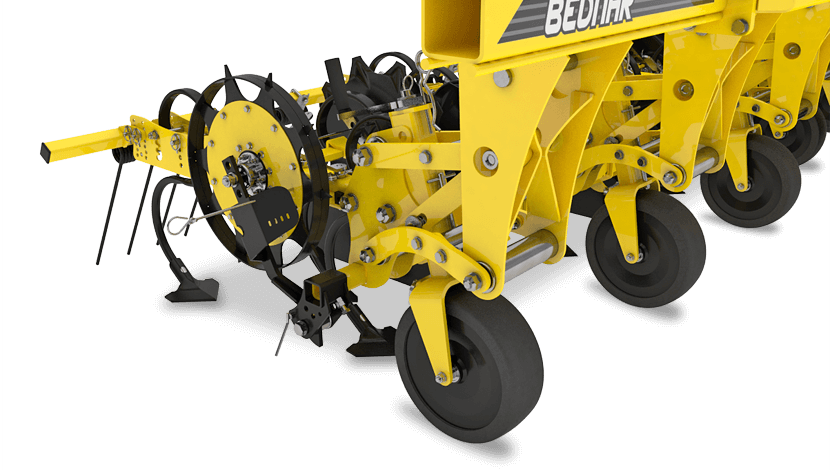

Support wheels

Maintain the set working depth and perfectly contour the terrain.

Stabilising wheels

Help guide the cultivator in the crop.

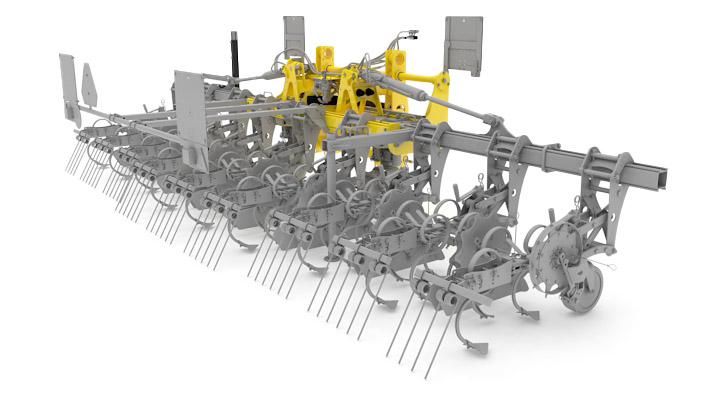

Hydraulic control

The system automatically moves the cultivator to the side based on data received from the CultiCam guidance system.

Frame

An extremely robust frame with clearance of 80 cm for weeding maize or sunflower crops.

Silent-block mounting of row units

The innovative design increases downforce and enables easy penetration of the row unit in the soil.

Row units are mounted via parallel linkage

The individual row units are mounted via parallel linkage. The system provides perfect terrain contouring and maintains the set working depth.

OUR INNOVATIVE TECHNOLOGIES

CULTICAM - AUTOMATED GUIDANCE

The system automatically guides the row-crop cultivator by reading the rows. The system then communicates with the hydraulic control (movement) that guides the row units between the rows.

$K:\1100_Marketing\WEB\Novy web - WordPress\2021\INOVATIVNI_TECHNOLOGIE\PNG_430X470$

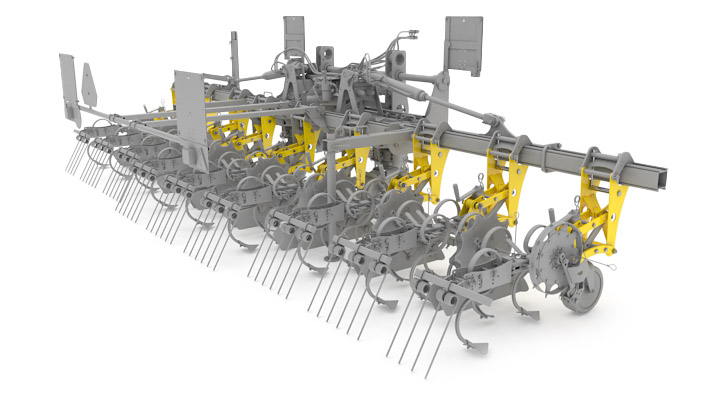

ROW UNITS MOUNTED VIA PARALLEL LINKAGE

The individual row units are mounted to the frame via parallel linkage. The design provides excellent terrain contouring and maintains the set working depth of the row units.

PARALELOGRAMOVÉ UCHYCENÍ PRACOVNÍCH JEDNOTEK

WHAT DO THE FARMERS HAVE TO SAY?

“We bought the ROW-MASTER RN 6400 row-crop cultivator by BEDNAR based on a selective procedure where the requirements for the machines equipment also included a system of automatic cultivator guidance. We implement row crop cultivation year by year as needed and according to the current conditions. Also, loosening provides for easy access of sugar beet roots to air.”

Ing. Martin Poisl,
ÚSOVSKO AGRO s.r.o.

Accessories

We know that everyone has different requirements for the optional machine equipment and its expected use. Therefore, you can specify your own ROW-MASTER RN row-crop cultivator to precisely match your needs.

Optional equipment for plant protection

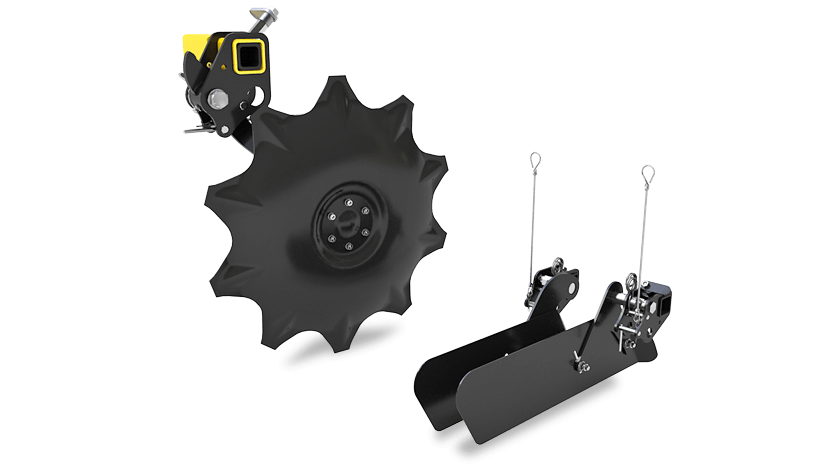

Protective discs

The specially shaped protective discs of the row units define the cultivation width – they protect leaves and roots. The discs also prevent covering crop rows with soil and weed seeds.

Protective shields

The shields define the cultivation width and protect leaves and roots. They prevent covering crop rows with soil and weed seeds.

Other

Automated guidance

CultiCam reads two or three rows (according to the crop) and assesses the vegetation, then transmits the information to the electronic system, which communicates with the hydraulic control of the cultivator. The control guides the row-crop cultivator so that the row units work in the inter-rows, right next to the plants.

Automatické naváděníAutomatické navádění

CONFIGURE YOUR OWN
ROW-MASTER RN Row-Crop Cultivator

You are one step closer to your new machine.
You can try all the optional equipment in our configurator,
or read more about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

ROW CROP CULTIVATION
Weeding improves the physical properties of soil nutrient intake by crops, and the condition of vegetation. Row crop cultivation has a weeding effect, which reduces the consumption of herbicides. Row cultivation also has a soil-protecting effect. The loosened soil layer in the row prevents fast drainage of surface water, and reduces the risk of water and air erosion. Liquid or solid fertilisers can be applied whilst weeding, thus improving the overall condition of the crop.

Advantages of row crop cultivation

Technical data

The table can be navigated by scrolling sideways.

ROW-MASTER RN		RN 4800	RN 6400	RN 9600
Working width	m	4,8	6,4	9,6
Transport width	m	3	3	3
Transport length	m	2,5	2,5	4,3
Transport height	m	2,8	3,6	3,6
Number of rows	pcs	8 / 7 / 6	12 / 9 / 8	18 / 11 / 12
Inter-row distance	cm	45 (50) / 60 / 75 (70 / 80)	45 (50) / 60 / 75 (70 / 80)	45 (50) / 60 / 75 (70 / 80)
Working depth*	cm	2 - 10	2 - 10	2 - 10
Frame clearance	cm	80	80	80
Camera guidance		yes	yes	yes
Power demand*	hp	60 - 80	80 - 100	100 - 150
Frame type		folding	folding	folding
Max. total weight**	kg	2000	2400	3400

* depends on soil conditions ** according to the machine equipment
