SONIQ ON is a mounted seeding combination with a tank located above the KATOR power harrows. The KATOR power harrows can be used independently without a hopper and seeder soil preparation. Effective seedbed preparation of the seedbed with power harrows and rear consolidation with a roller. This, together with precise placement of the seed at the required depth, thanks to the PSP2 drilling openers mounted on the parallelogram, guarantees you a perfect result, i.e. strong, healthy and consistent crop shortly after drilling.
3-3 ft
120-180 hp
28-44 bu
Mounted seeding combination for establishing crops in partially tilled soil or after plowing.
SONIQ ON is designed for farmers using standard tillage technology – plowing. The high number of rotors per meter of working width, combined with high circumferential speed, guarantees high-quality seedbed preparation. The seed has ideal contact with the soil and moisture for rapid development. For this purpose, we have specially developed a seed bar with a row spacing of 5″.
The seeding combination is also suitable for establishing crops in a minimum tillage system – for example, deep tillage using rippers or field cultivators. Power harrows ensure optimal seedbed preparation by breaking up clods, cutting roots and crop residues. The seeding combination with a row spacing of 6″ is ideal for conditions with a large amount of trash on the soil surface.
To make the most of the power harrows, the seed unit can be easily removed. Removing the seed unit attachment is quick, easy and does not require any special tools. KATOR KN power harrows can therefore be used separately, for example, for preparing the soil before planting potatoes or preparing the soil on difficult-to-work soils.
If you just need to prepare the land for seeding, you do not have to completely disconnect the seed unit. The advanced system of the SONIQ seeding combination allows the seed unit to be raised by 2.7″, which allows soil preparation to be carried out without seeding.
The SONIQ ON pneumatic seeding combination is quickly and easily connected to tractor via a 3-point hitch, cat. III.
On request, the seed drill combination can be equipped with track eradicators for loosening compacted soil in the line of the tractor wheels. The track eradicators are protected with a shear bolt.
KATOR power harrows are the standard preparation implement for SONIQ ON pneumatic seeding combinations. Power harrows create an evenly processed seedbed with a solid substrate for placing seeds or seedlings.
On request, individual models of power harrows can be equipped with a quick blade change system (QUICK CHANGE SYSTEM). This system is a quick and easy way to change blades. You just need to pull out the cotter pin, remove the pin and change the blade. This time-saving system designed to be used without the need for special tools.
For stony soils or extremely heavy soils, we recommend choosing LONG LIFE blades with carbide tips for greater durability.
The levelling bar is positioned very close to the rotors. Large clods of soil are constantly directed back to the rotors to be crushed. The levelling bar is controlled mechanically as standard.
Packer with excellent crumbling effect, suitable for heavy soils. Packer includes scrapers. Packer diameter 21.5″, weight 795 lb/ft.
Trapeze packer for precise and fine soil crumbling, ideal packer for light to medium-heavy soils. The packer includes scrapers. Packer diameter 19.5″, weight 904 lb/ft.

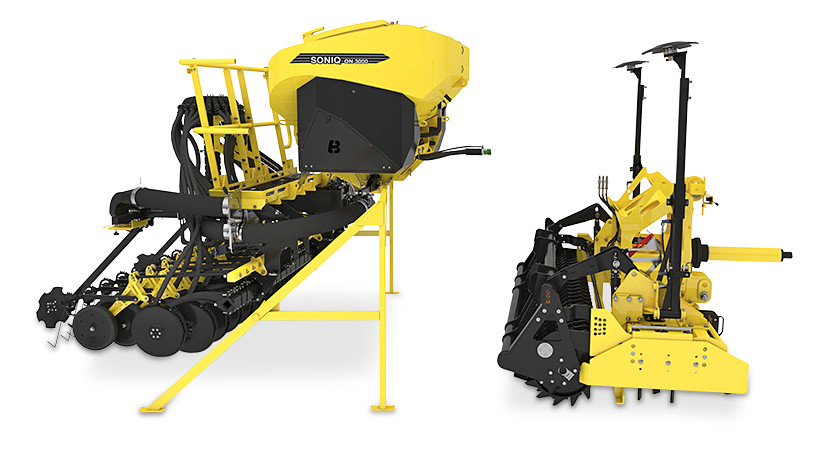

The power harrow can be easily and quickly detached from the hopper and the seed unit. The hopper and the seed unit have their own parking stand. The power harrow can be used separately for soil cultivation without seeding.
BEDNAR has developed a double disc opener for heavily loosened soil, exactly the kind that is created after tillage with implements such as power harrows. The PSP2 opener is based on the proven PSP opener, which BEDNAR has been using very successfully on OMEGA, EFECTA and MATADOR air drills for years. The PSP2 opener is lighter than the PSP opener with less downfroce per drill opener, which is 132 lb for the PSP2 opener.
The SONIQ ON seeding combination is equipped with drilling openers with a row spacing of 5″ as standard. This drilling opener spacing is suitable for systems with a high proportion of cereals in the crop rotation. A row spacing of 6″ is suitable for establishing crops on heavy soils or in minimum tillage systems.
The tine harrow with fine adjustment and curved tines ensures perfect seed coverage regardless of the amount of trash or whether the soil is light or heavy.
The SONIQ ON air drill has a single-chamber tank with a capacity of 28 bu or 44 bu. The tank can be conveniently accessed from the left side of the machine via steps and a platform. The tank is extended forward which gives optimal center of gravity positioning close to the tractor. Thanks to the contour of the tank, the seed is fed reliably to the metering unit.
The standard equipment of the SONIQ seeding combination is one distribution tower. For maximum precision in seeding and saving on seed costs, the seeding combination can be equipped with two distribution towers. In this case, the seed drill combination offers the possibility of switching off half of the working width of the implement.
Calibration is carried out in the rear part of the seeding combination (behind the drilling openers), where the distribution from the seeding system is brought. A very comfortable and easily accessible place for the operator. In the rear part, it is also possible to conveniently empty unsown seed from the tank back into the big bags.
Easy operation is a priority for today’s operators. The SONIQ ON seeding combination is equipped with the new BEDNAR EASY CONTROL control software, which guarantees easy and clear operation. The software offers clear, easy, and intuitive control of the seed drill.
Do not hesitate to contact us or find the dealer for your area.
Contact us Find a dealerEasily accessible three-point hitch cat. III for connection of a seeding combination to the rear three-point tractor hitch.
Proven KATOR KN power harrow with a high number of rotors per meter of working width for quality crumbling and tillage.
The robust gearbox for perfect power transfer ensures quality and reliable work of each individual rotor within the rotary harrow.
The rear packer helps in the final crumbling of clods and creates the seedbed structure.
The SONIQ ON seeding combination is equipped with a single-chamber, pressurized tank with a capacity of 28 bu or 44 bu. The SONIQ ON model has one metering unit
The seed unit is made up of the proven solution of PSP2 double disc openers, which work on a parallelogram. Optional row spacing of 5″ and 6″.
SONIQ ON comes with one distribution tower as standard. If it is necessary to switch off half of the working width, the SONIQ ON seeding combination can be equipped with two distribution towers.
These are used to mark a guide line for smoothly connecting individual passes if the tractor is not equipped with GPS navigation.
The PSP2 double disc opener is based on the proven PSP opener that BEDNAR uses on other seed drills. However, the PSP2 opener is lighter so the seed/fertilizer can be placed precisely in the worked soil after the power harrow. The PSP2 opener works on a parallelogram. This combination guarantees excellent placement accuracy.
Seeding combinations, like all other BEDNAR air drills, use an exclusively pressurized tank system. This guarantees maximum accuracy of the set doses.
Each rotor is equipped with three bearings (the shaft is mostly surrounded by bearings). This system provides for perfect rotor stability and protects gearwheels, shafts and gaskets from damage. The system provides perfect rotor stability and absolute protection from dust. No other competitor offers three bearings per rotor.
We recommend choosing the LONG-LIFE blades with carbide tips for higher resistance when used in rocky soils or extremely heavy soils.
You are one step closer to your new implement.
You can try all the implements in our configurator,
or read about it in the brochure.
CROP ESTABLISHMENT
Each crop requires specific conditions for its establishment, based on the selected soil cultivation technology and weather conditions. Generally, the crop should be established by the specified agronomic deadline to meet all the preconditions for achieving the required yield.
| SONIQ | ON 10' | |
|---|---|---|
| Working width | ft | 9' 10" |
| Transport width | ft | 9' 10" |
| Transport length | ft | 11' 10" |
| Transport height | ft | 7' 10" |
| Row spacing | in | 5" / 6" |
| Number of drill openers | pcs | 24 / 20 |
| Drill opener down pressure | lb | 132 |
| Number of rotors | pcs | 12 |
| PTO shaft RPM | RPM | 750 / 1000 |
| Rotor RPM | RPM | 346 / 462 |
| Distance between rotors | in | 9.65" |
| Max. working depth* | in | 10" |
| Tank capacity | bu | 28 (44) |
| Filling height | ft | 9' 10" |
| Frame type | folding | |
| Doporučený výkon | HP | 120-180 |
| Max. total weight** | lb | 7,539 |
* depends on soil conditions
** depending on implement equipment
