Excellent cutting and incorporation of crop residue using two rows of discs, 660 x 6 mm.

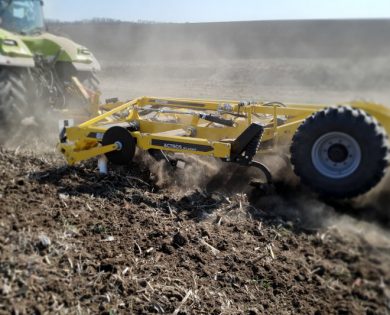

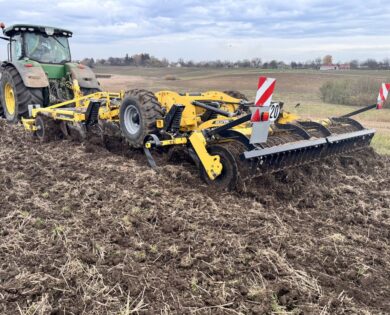

ACTROS RO Combined Cultivator
ACTROS RO is a robust combined (disc-share) machine that is capable of cutting and processing a large quantity of crop residue in a single pass and mix the crop residue effectively with loosened soil, up to a depth of 35 cm (Active-Mix tines), and disrupt soil layers using the zero-mix tines.
The machine can work without rear packers, there are shares behind the transport wheels. An ideal solution in extreme conditions.
The transport axle is located in the middle of the machine, which reduces the turning radius at headlands.
| MACHINE TYPE | semi-mounted combined cultivator |
|---|---|
| OPERATING COMPONENTS | two rows of discs 660 x 6 mm, two rows of shares, packers (V-ring roller, double V-ring roller,double U-ring roller, double segmented roller, Cutpack). Active-Mix tine chisels: 40mm and 80mm, Zero-Mix tine chisel: 40mm. |
| SECURING | rubber segments on discs; shares are protected with vertical, double-spring protection with a breaking force of 750kg. |
| USAGE | intense stubble cultivation and aeration in a single pass (Active-mix tines) or disruption of compacted layers (zero-mix tines). |
| WORKING OPERATIONS | cutting and incorporating crop residue, soil aeration, disruption of compacted layers, reverse soil consolidation using a packer |
Two rows of large discs 660 x 6 mm, ideal for cutting large quantities of crop residue.
Two options for exchangeable tines. Active-Mix for intense aeration. Zero-Mix for disrupting soil layers without mixing.
The integrated axle between shares provides the opportunity to work without rear packers and reduces the turning radius at headland.
| ACTROS | RO 3000 | RO 4000 R | |
|---|---|---|---|
| Max. disc working depth | cm | 12 | 12 |
| Disc spacing | cm | 42,5 | 42,5 |
| Max. share working depth* | cm | 35 | 35 |
*залежно від ґрунтових умов
РОБОЧІ ІНСТРУМЕНТИ
DISCS
• 660 × 6 mm
ПАКУВАЛЬНИКИ
V-RING PACKER
Heavy duty steel packer for all types of soils. Intensive crumbling and firming of the soil.
• weight: 176 kg/m (incl. Scrapers)
• diameter: 630 mm
ЗАМИНКА
TOWING EYE
40 mm • 51 mm • 80 mm
TOWING BRACKET
Attachment III. cat.
БАЗА
SPRING LEVELLERS
POINTS 60 MM
ОПЦІОНАЛЬНИЙ
WINGS
• 125 mm
• 185 mm
• 185 mm LONG LIFE (karbid)
CUTPACK
Heavy steel packer with powerful cutting capabilities suitable for heavy soils.
• weight: 235 kg/m
• diameter: 630 mm
POINTS WITH TWIST EFFECT – LONG LIFE
• 40 mm
• 80 mm
