A SINGLE-CHAMBER TRAILED AIR-CART FOR FERTILISER AND SEED APPLICATION IN ONE PASS

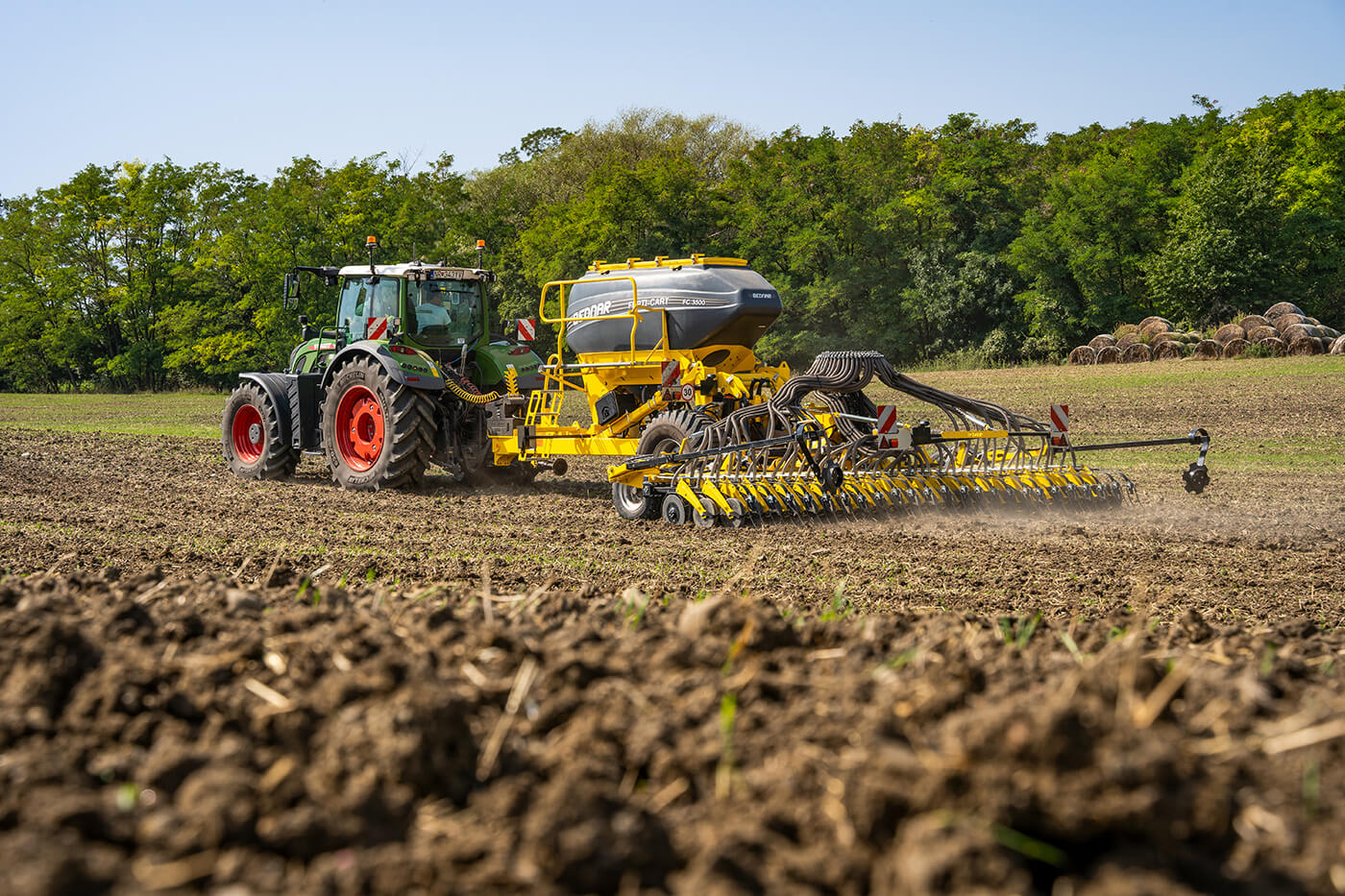

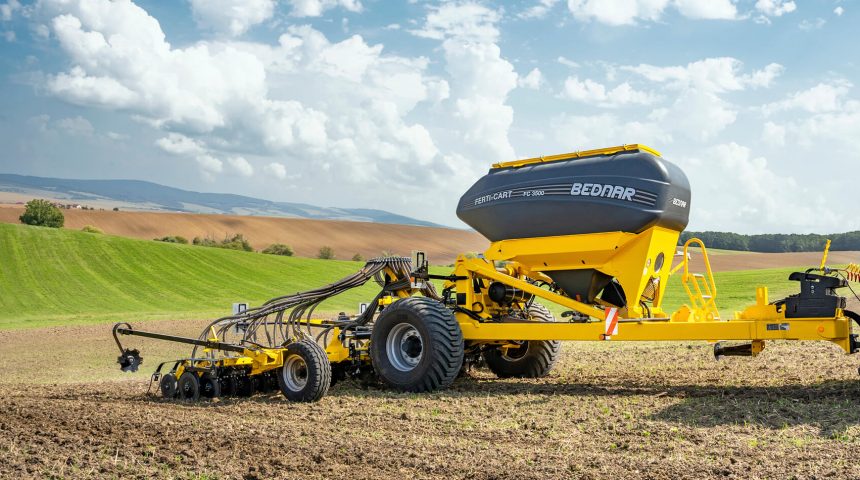

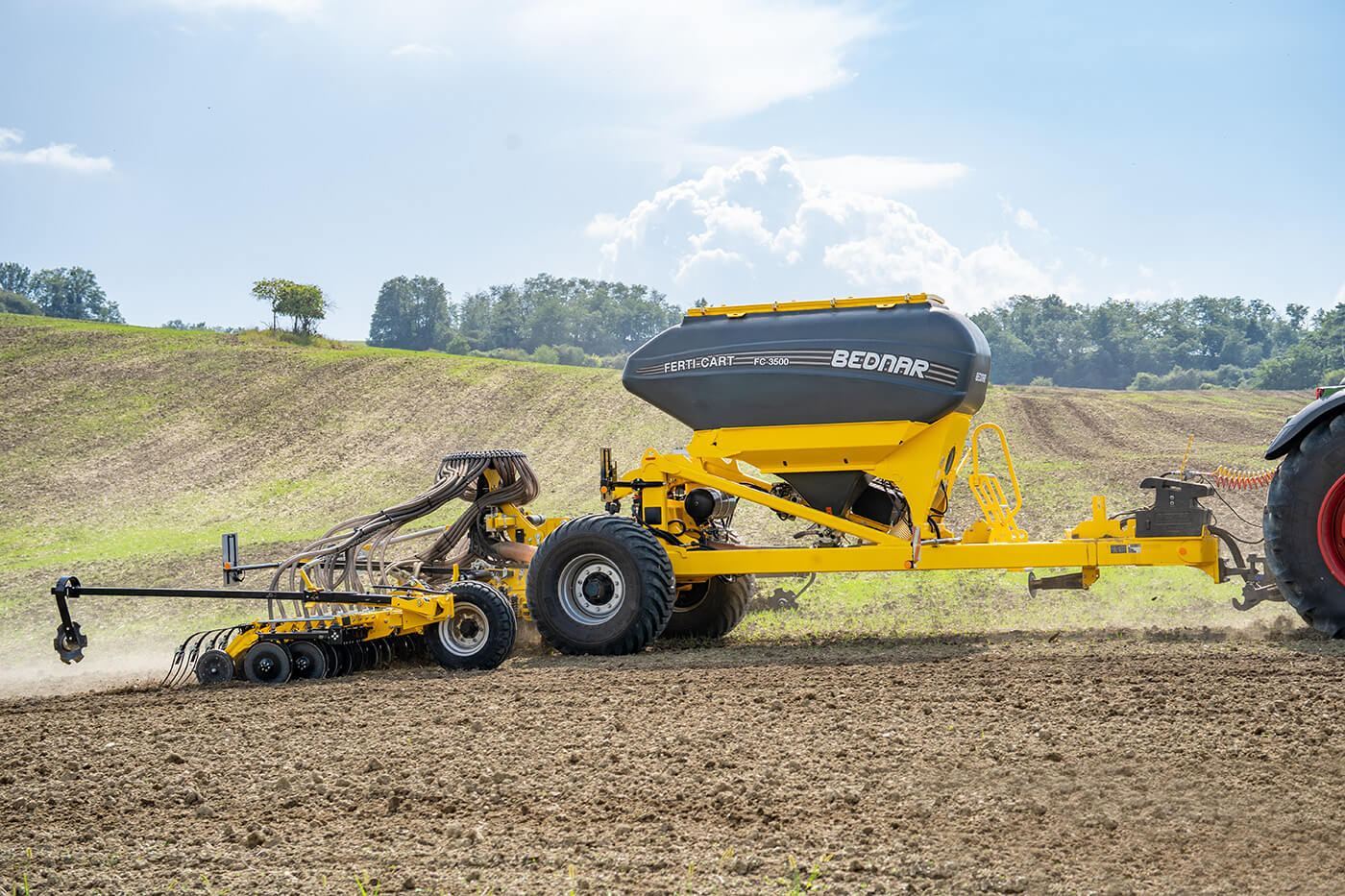

The FERTI-CART FC single-chamber trailed air-cart has a capacity of 3,500 litres. The FERTI-CART FC is primarily designed for supply fertilisation in combination with soil cultivators, such as FENIX FN, TERRALAND TN or TERRASTRIP ZN. It can also be used for seeding in combination with the CORSA CN seeding bar. The pressurised design provides quality application, even at high fertiliser amounts.

3500 l

Key properties

A single-chamber trailed air-cart for precise fertiliser application into soil during deep loosening and seed application in combination with seeding bar.

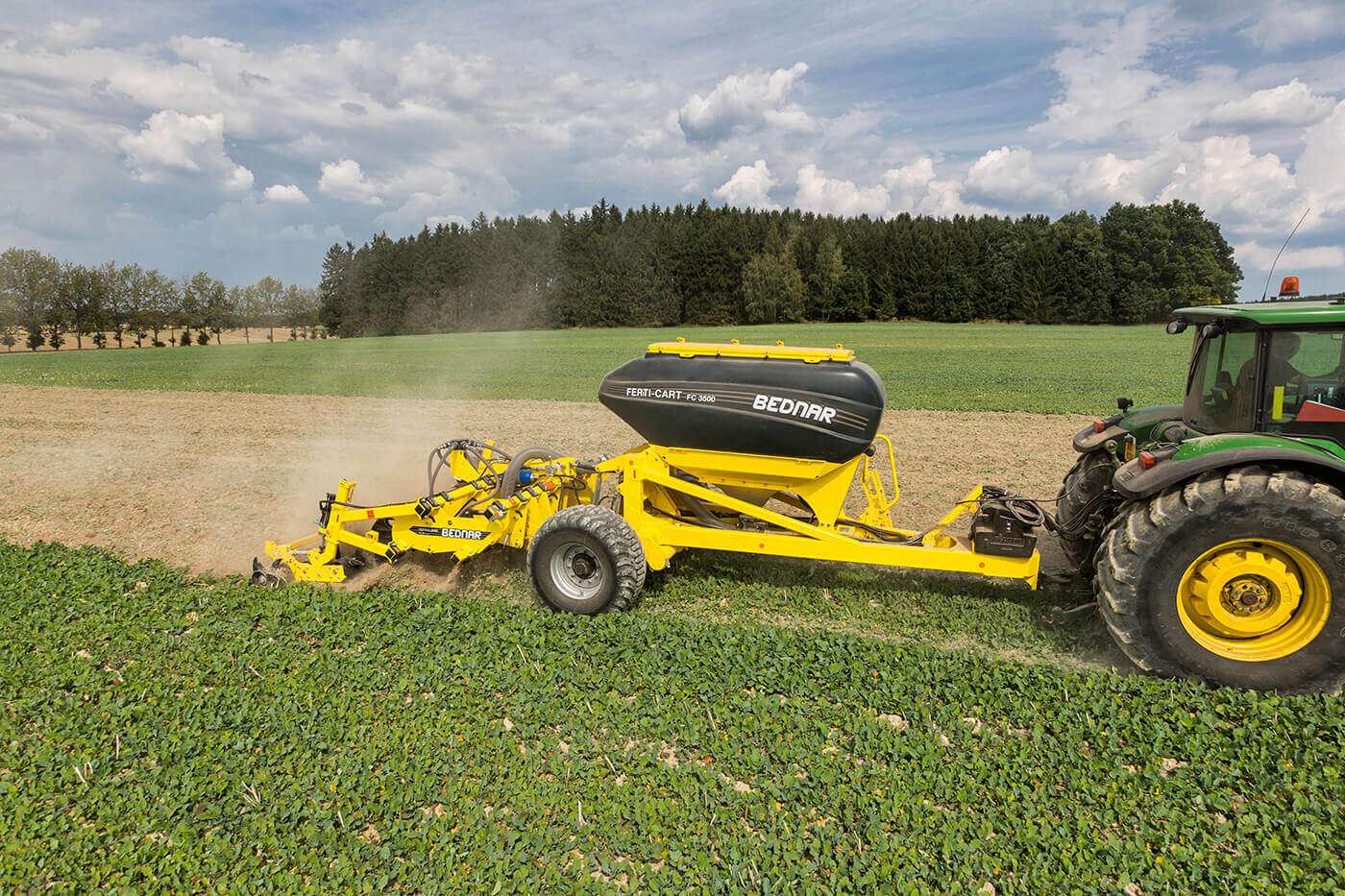

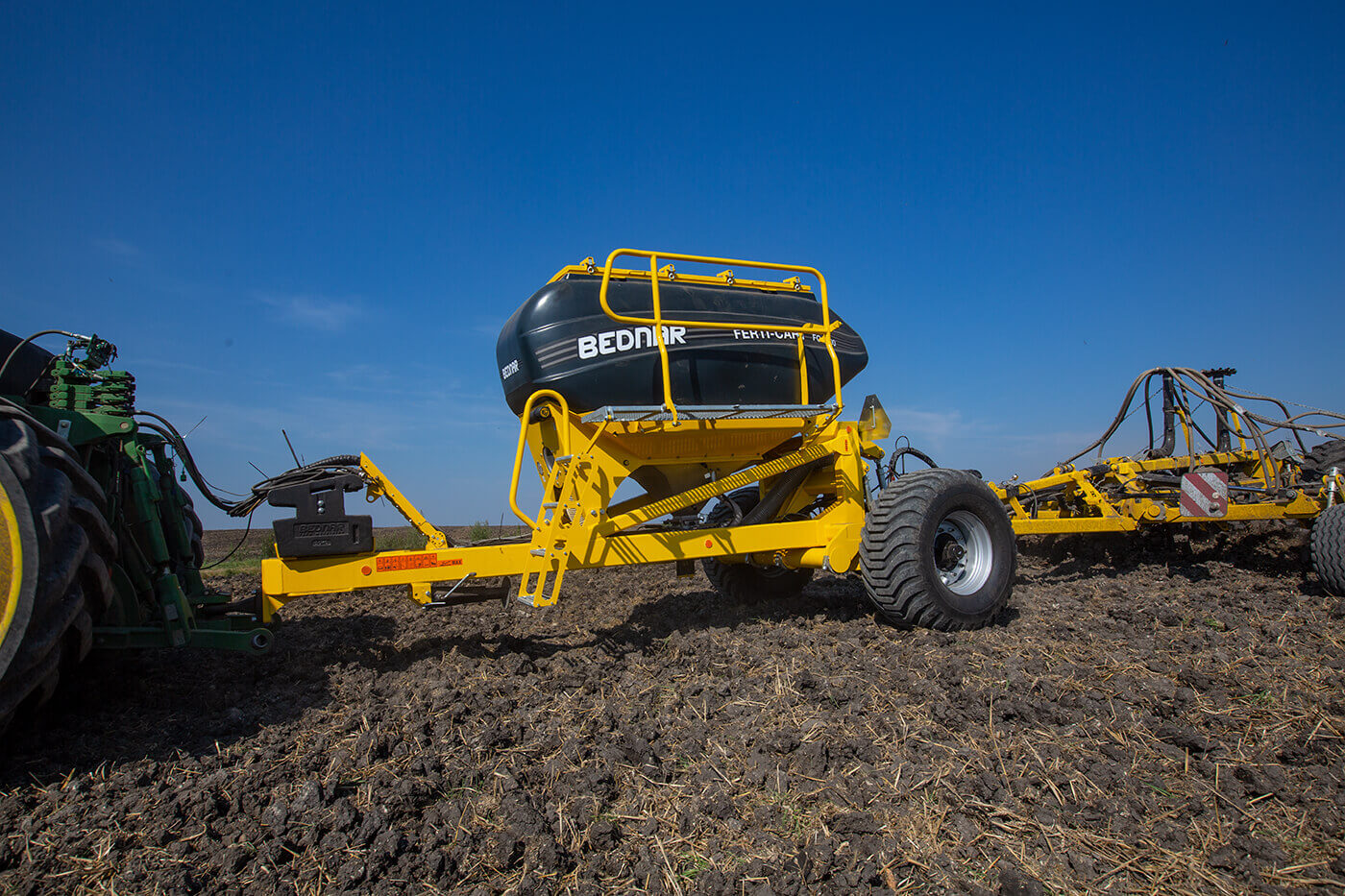

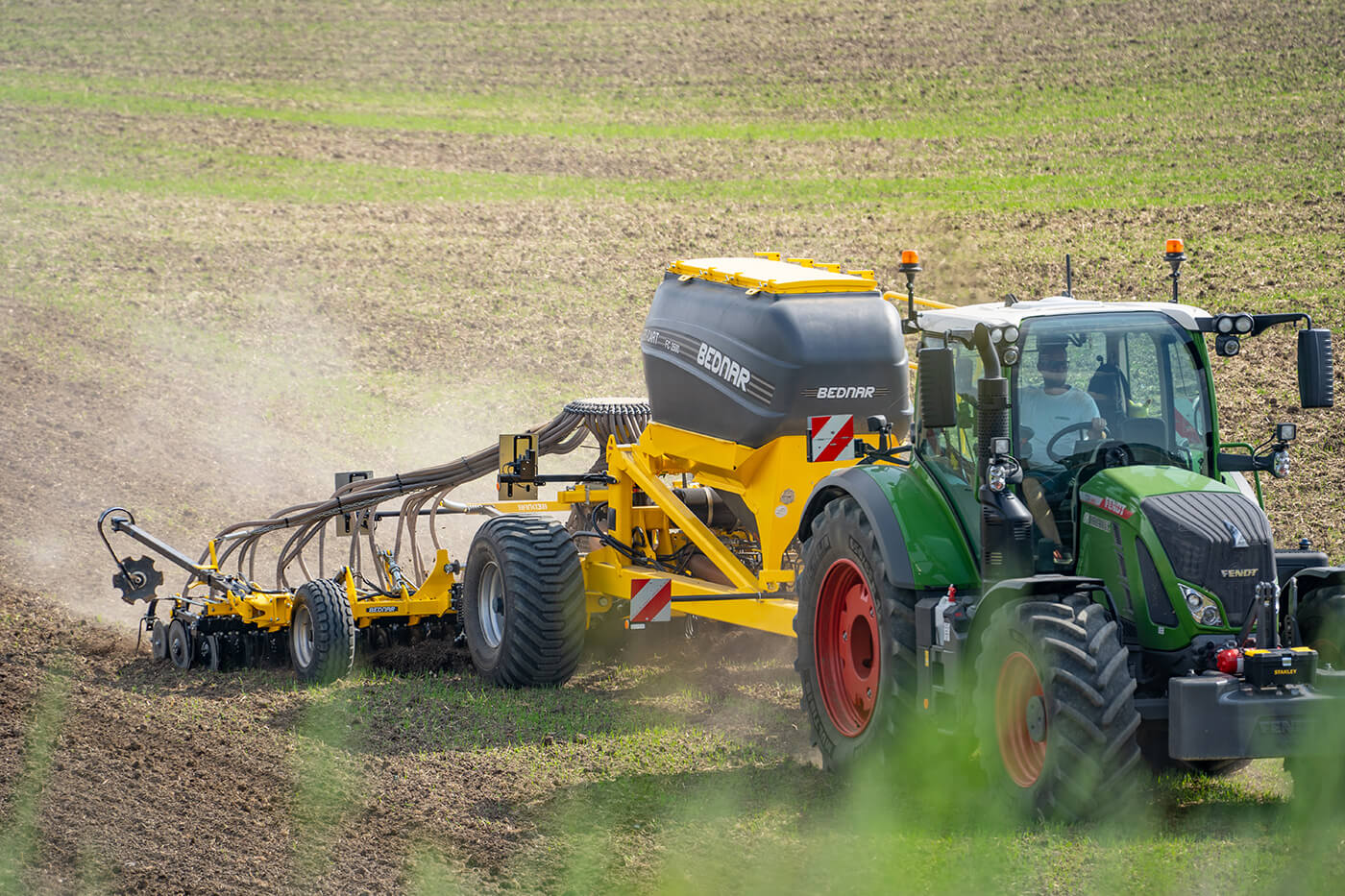

A TRAILED CART FOR SUPPLY FERTILISATION

Suitable for working with machines for deep soil cultivation.

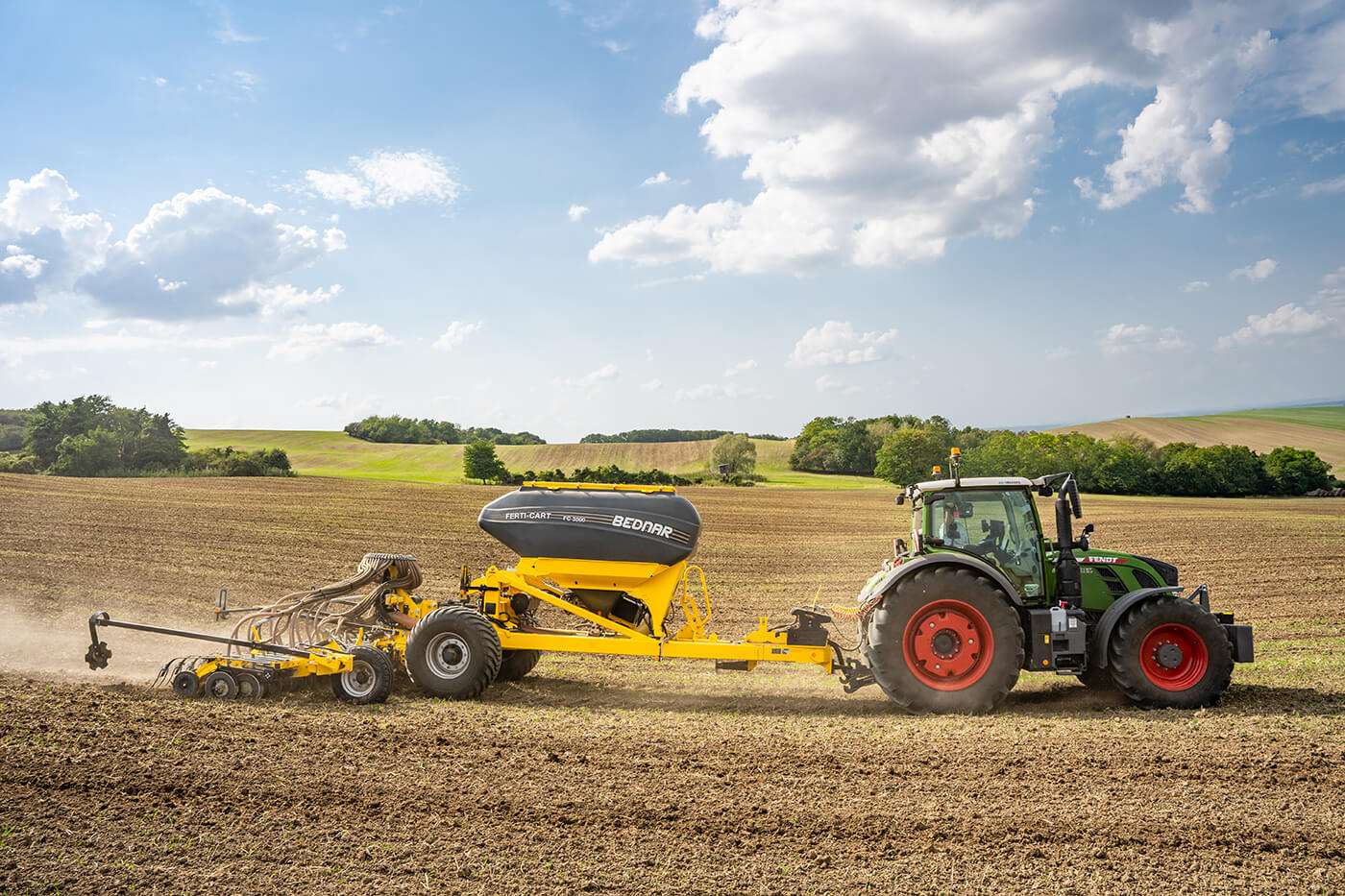

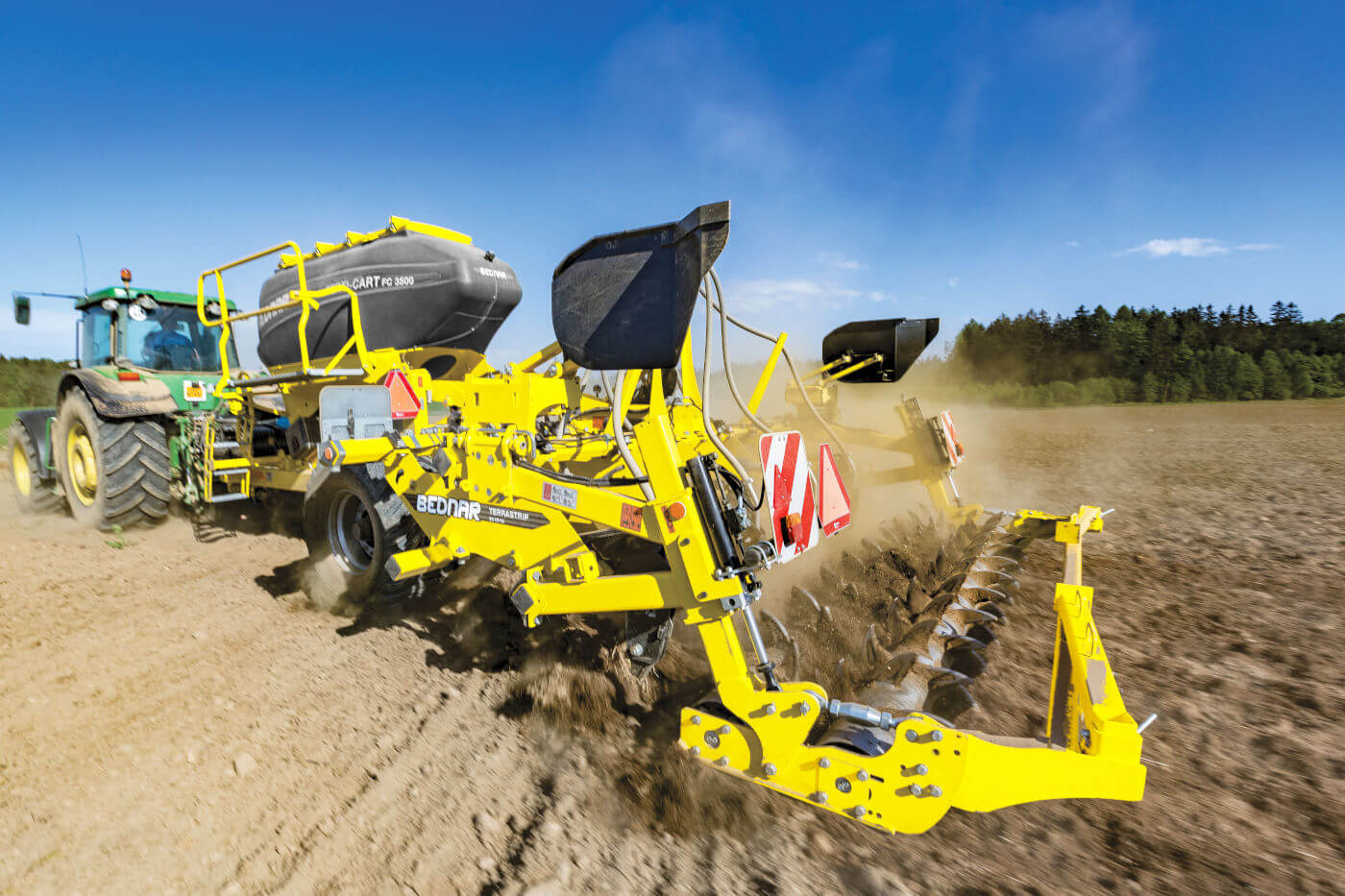

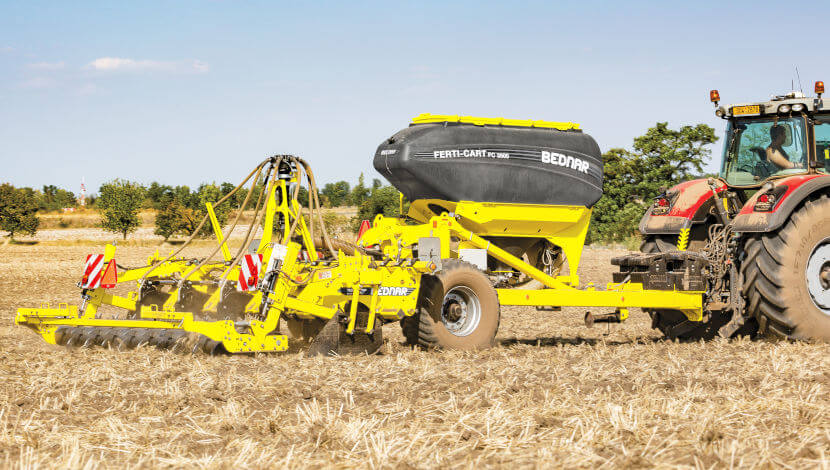

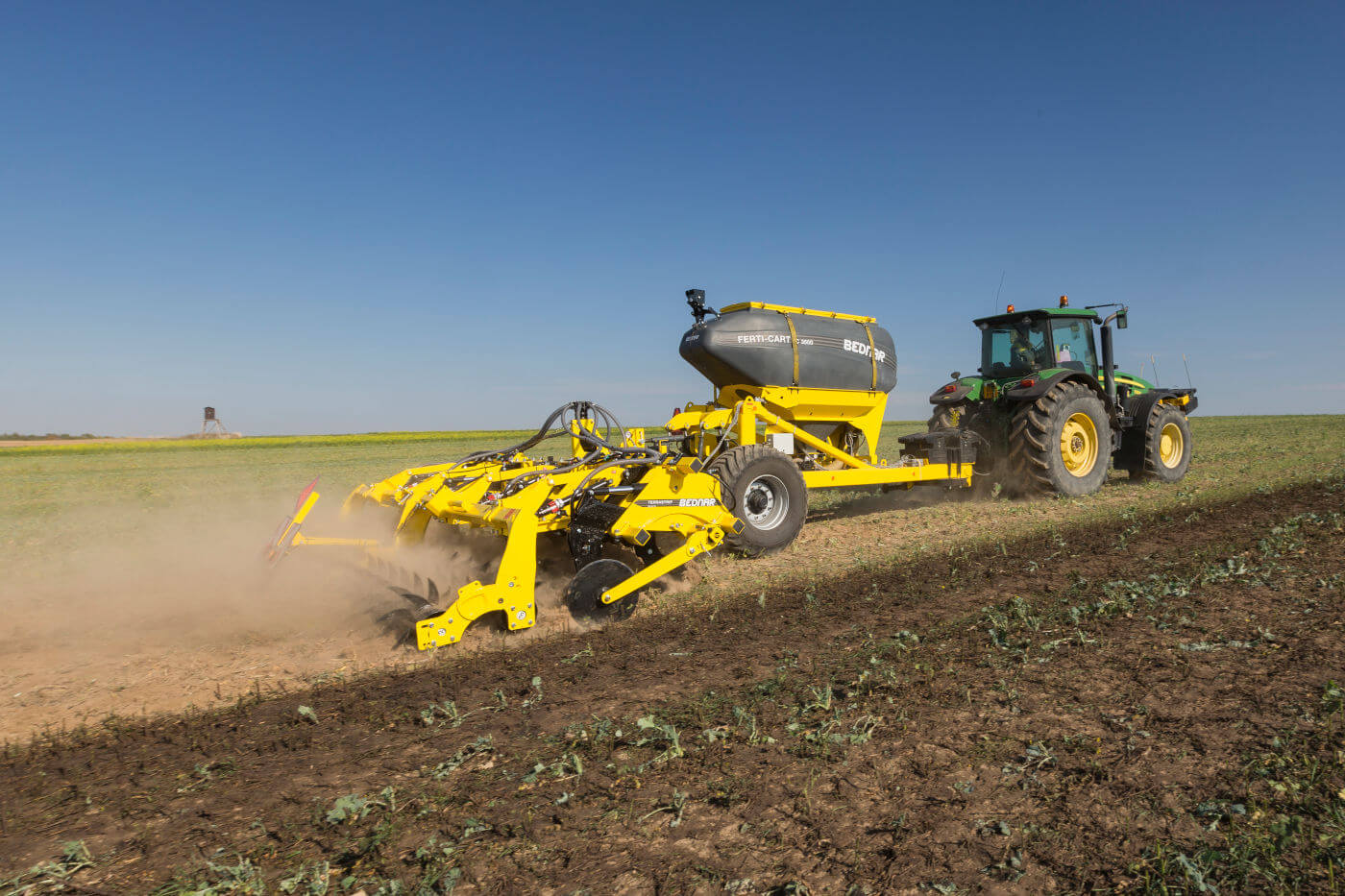

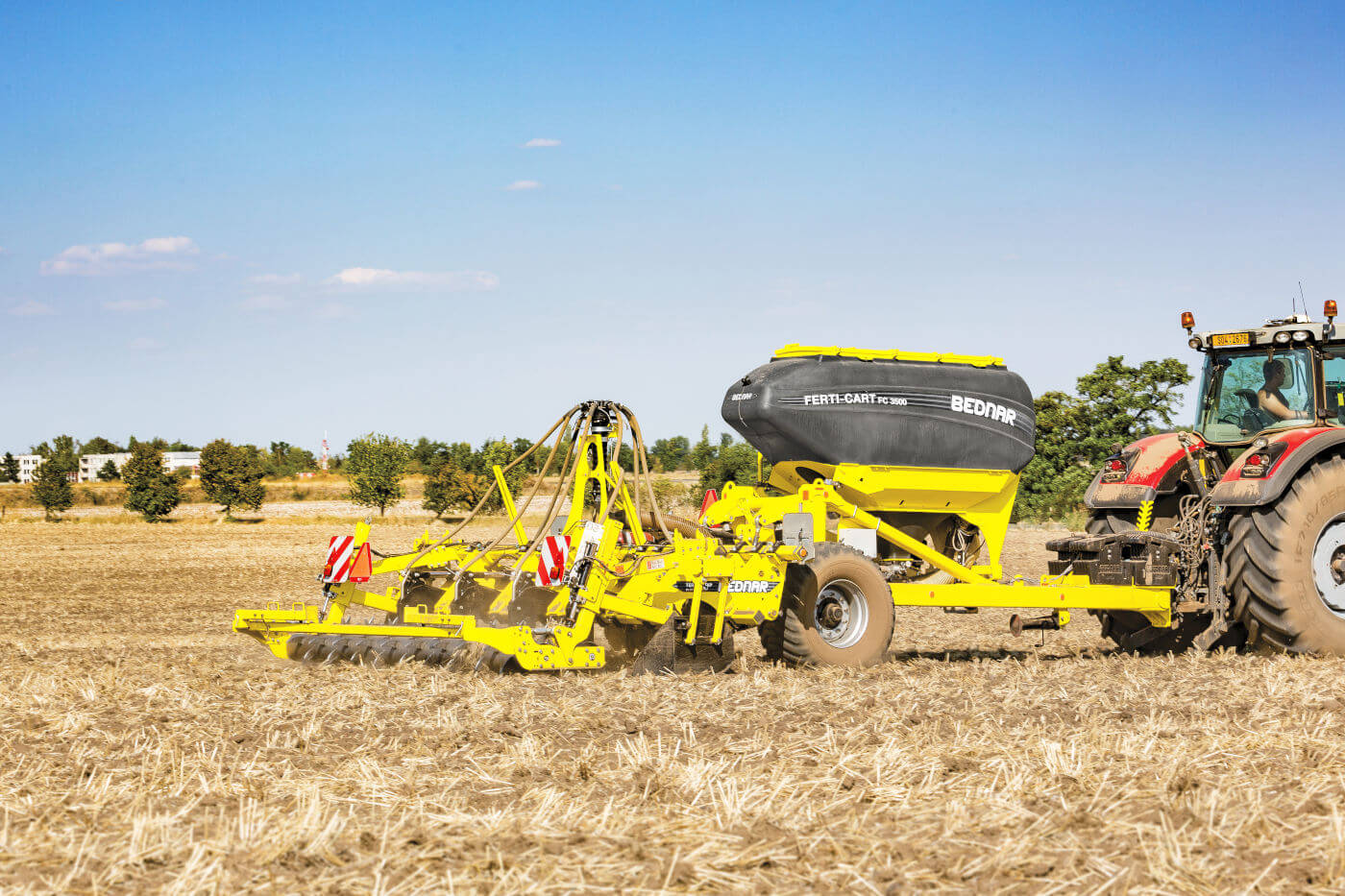

FERTI-CART FC is a single-chamber air-cart designed to work with machines for deep soil cultivation for supply fertilisation applied in one pass. The robust three-point hitch enables combination with the TERRALAND TN chisel plough, the TERRASTRIP ZN cultivator, or the versatile FENIX FN.

A TRAILED HOPPER FOR SUPPLY FERTILIZATION

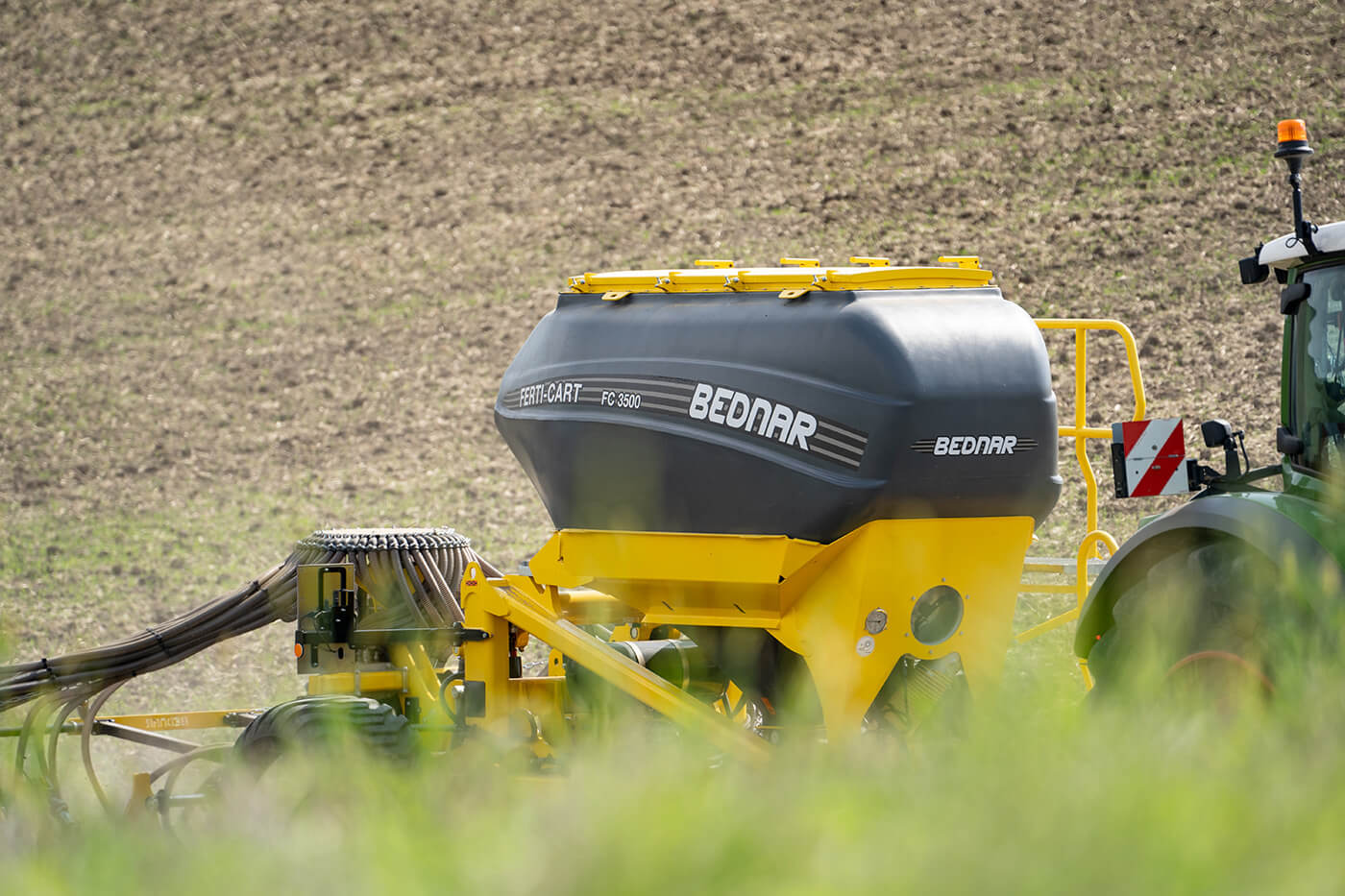

LARGE-CAPACITY TANK

High performance without the need of frequent refills.

The FERTI-CART FC has one chamber with a capacity of 3,500 litres. The tank is made of plastic and it is shaped to also enable application of lower-quality fertiliser.

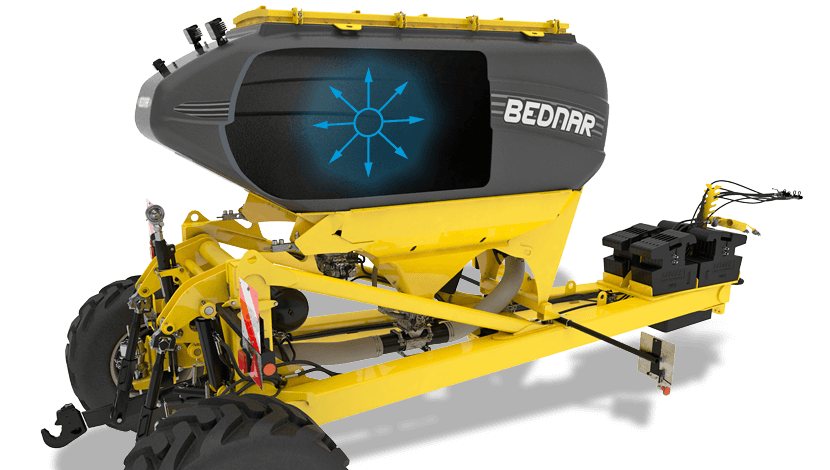

PRESSURISED HOPPER DESIGN

Increases accuracy and enables the application of even high doses.

The hopper of the FERTI-CART FC is pressurised. Thanks to the air-tight closure, overpressure is created in the hopper. This technical solution enables the application of large doses with high precision, regardless of the size of the seed/fertiliser granules.

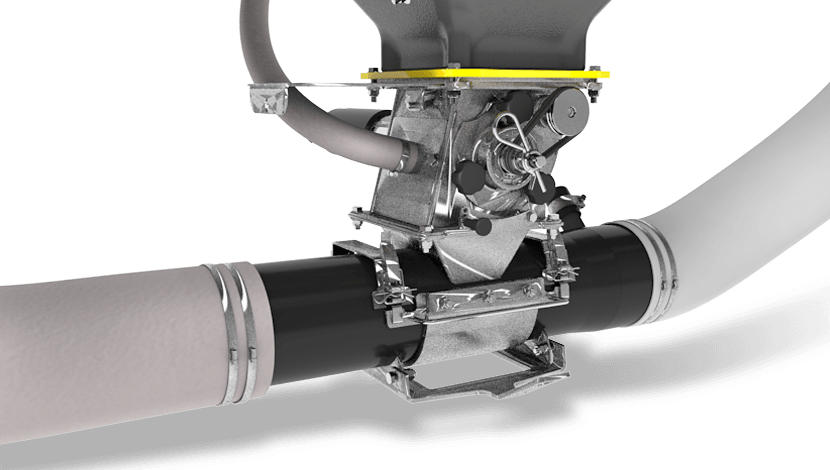

STAINLESS METERING UNIT

Batch size according to the agronomic needs.

The metering unit is made of stainless steel and driven by an electric motor, as a result of this the dispensed amount is precise at any speed. It is equipped with a GPS speed sensor.

VARIOUS TYPES OF

Seeding rollers.

Our product range includes various types of seeding rollers for the application of different fertiliser and seed sizes. We offer seeding rollers from 30 cm³ to 790 cm³.

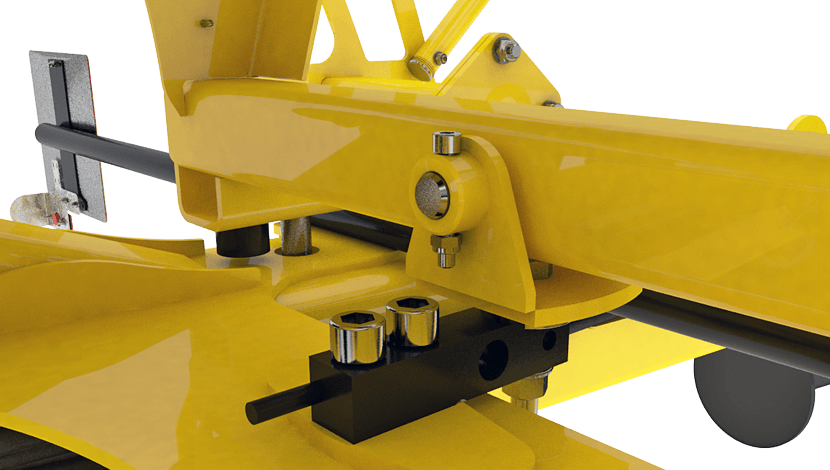

TENSOMETRIC WEIGHING SYSTEM

Precise information on the quantity of the used fertiliser or seeds with data transfer to the display.

The FERTI-CART FC can be equipped with a tensometric weighing system. The system is based on three tensometric weight sensors that provide information both on the quantity of fertiliser or seeds in the hopper, and on the already applied or seeded amount.

INTUITIVE AND CLEAR OPERATION

Fully ISOBUS-compatible mounted hopper.

The FERTI-CART FC trailed hopper enables connection to the tractor via ISOBUS technology or control via BEDNAR’s own ISOBUS monitor. A range of control monitors is available with basic or advanced control functions. FERTI-CART FC is supplied with BEDNAR EASY CONTROL software developed by BEDNAR engineers.

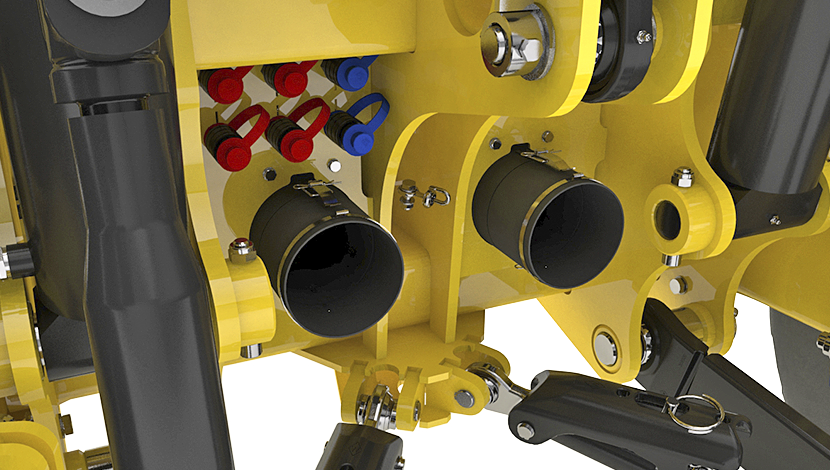

ONE CHAMBER, TWO OUTLETS

Maximum precision and savings.

In the basic equipment, the trailed air-cart is equipped with one outlet that does not allow the switching off of half of the working width as with, for example, the CORSA CN seeding bar. For maximum precision and economy of seed or fertiliser for connection to machines with half-working width shut-off, the FERTI-CART FC can be equipped with two outlets.

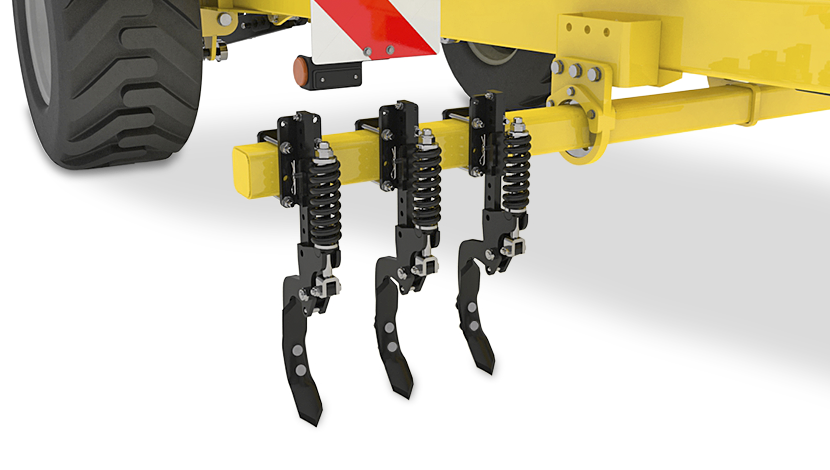

TRACTOR TRACK ERADICATORS

Hydraulically adjustable.

As an option, the FERTI-CART FC 3500 air-cart can be equipped with integrated tractor track eradicators. These cultivators are used for the loosening of compacted tracks created by the tractor. The track eradicator is equipped with double-sided chisels.

FERTI-CART_FC_3500_od_verze_DA_Kyprice_stop

CONVENIENT CALIBRATION

With the FARM LINK mobile app.

BEDNAR developers have designed a mobile phone app that makes it easy and simple to calibrate a trailed hopper right from your phone. The mobile app also includes a guide to help you choose the right seeding roller based on the seed/fertiliser type, working speed and seed rate.

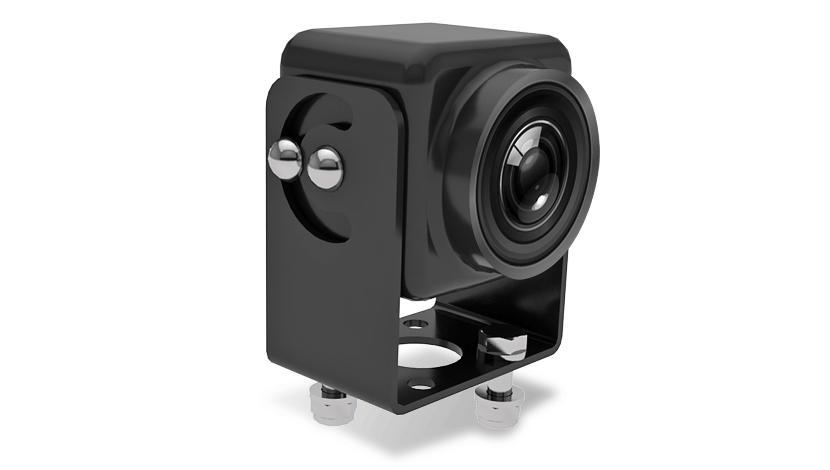

CAMERA SYSTEM

For perfect overview and safety at work.

The FERTI-CART FC can be equipped with a camera system that provides an overview of the connected equipment in the three-point hitch of the trailed hopper. In relation to the equipment, the camera image is shown on the tractor display or BEDNAR terminal.

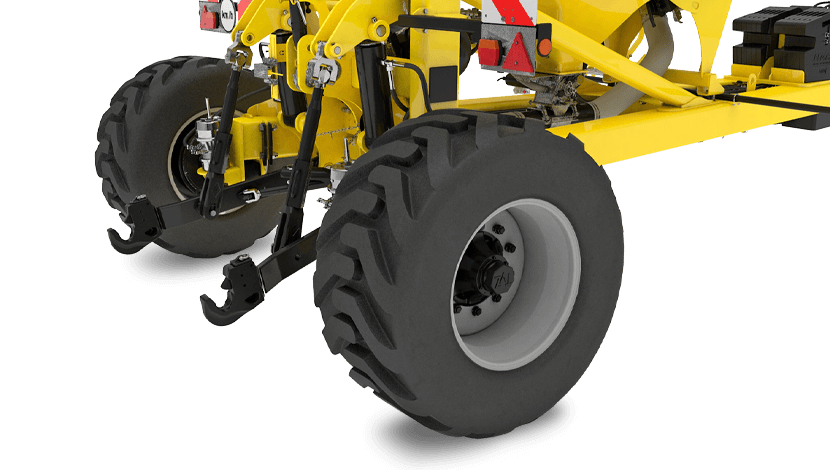

LARGE FLOATING TYRES

Prevent undesirable soil compaction.

The FERTI-CART FC trailed cart is equipped with large floating tyres with a dimension of 550/60-22,5. The floating tyres have a low specific pressure on soil, they prevent potential soil compaction, which most often occurs when the set turns at headland, or works in wet conditions.

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

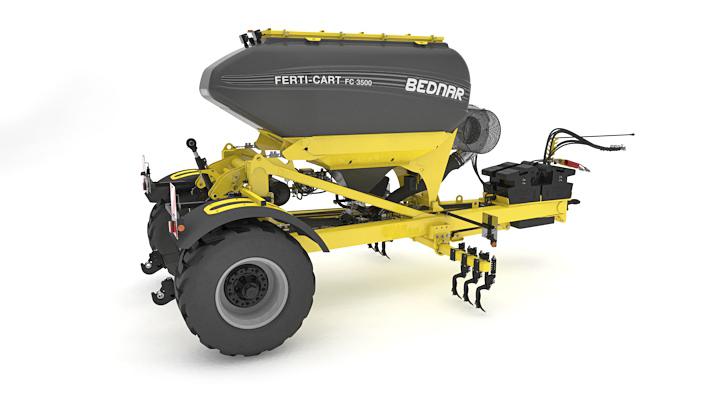

Machine description

A concise summary of the main working parts of the air-cart.

FERTI-CART FC Trailed Air-Cart

Take a look at your future machine.

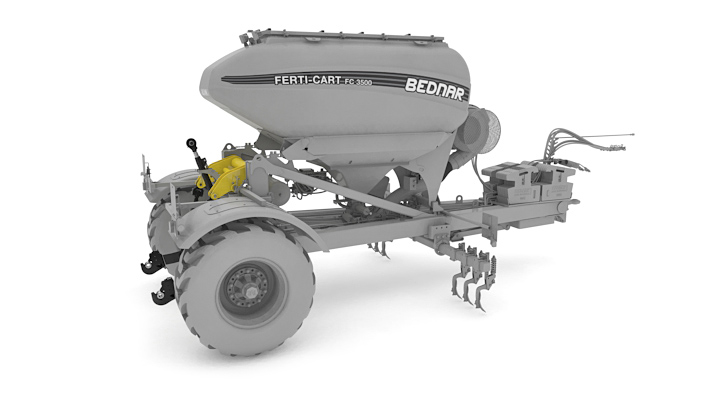

Three-point hitch

It is used for the connection of different types of mounted or semi-mounted machines.

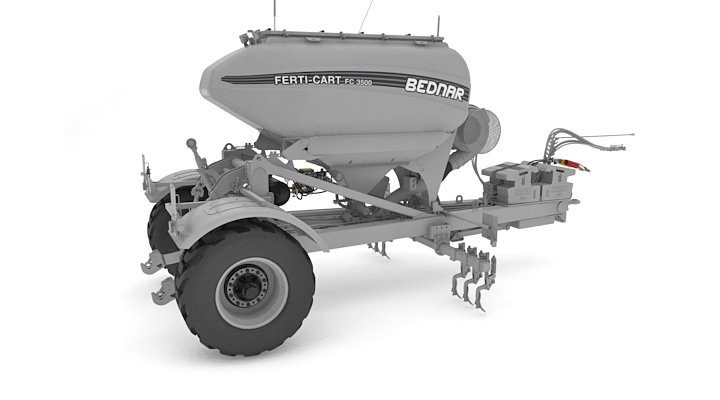

Transport axle

The transport axle is equipped with large floating tyres that reduce pressure on soil and provide stability during transport.

Weighing system

The tensometric weighing system provides overview of the quantity of fertiliser in the hopper and the applied quantity. The system allows easy data transfer to the tractor display.

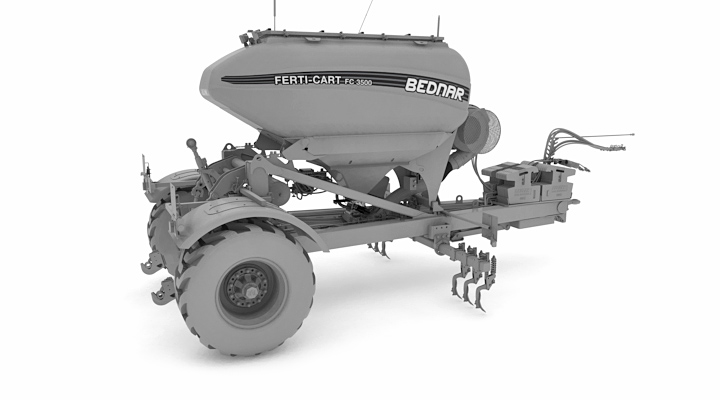

Metering unit

Driven by an electric motor, provides a high precision of batching.

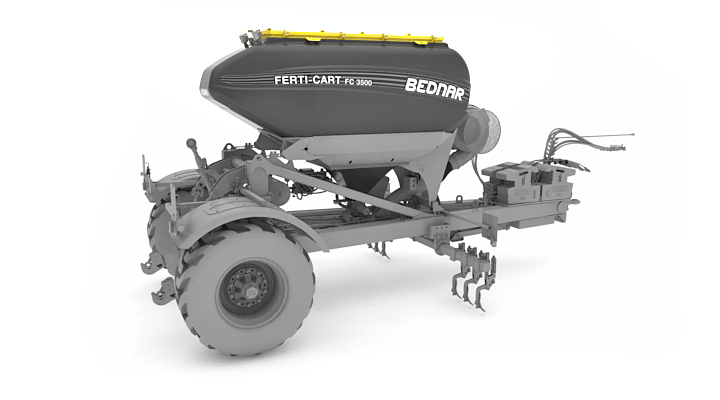

Pressurised hopper

The pressurised hopper ensures precise dosing of high application doses of fertiliser or seed, regardless of the size of the seed/fertiliser granules.

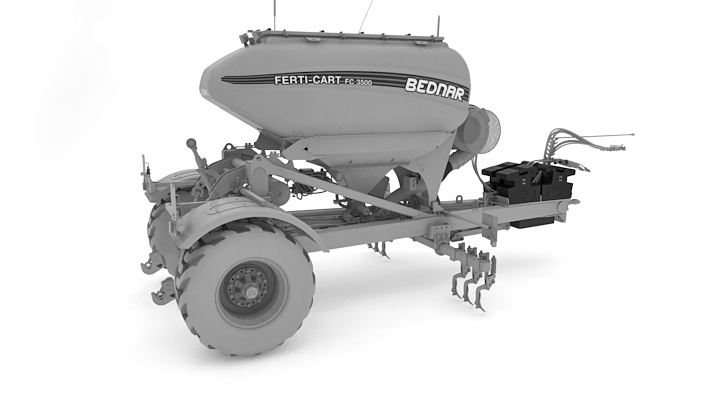

Additional weights

With weight of up to 1,500 kg, it adds extra weight to the rear axle of the tractor and improves its towing properties.

Tractor track eradicators

Equipment for the loosening of compacted tracks created by the tractor.

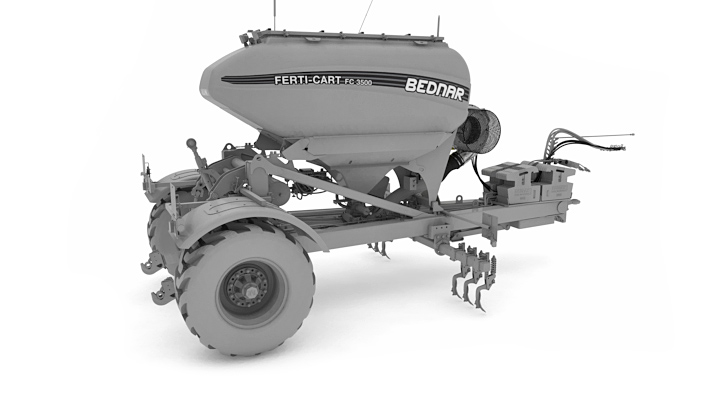

Fan

The fan is used to create an air flow that transports the fertiliser/seed to the distribution head of the tillage or seeding machine.

OUR INNOVATIVE TECHNOLOGIES

PRESSURISED TANK

The pressure pushes fertiliser through the metering unit. Thanks to this design, the storage tank can apply even lower-quality fertilisers or higher amounts of fertiliser in a better and more precise way.

REMOTE FARM LINK CALIBRATION

The BEDNAR FARM LINK mobile app allows operators to calibrate the metering mechanism and enter calibration values directly from the machine without having to enter the tractor cab and use the terminal.

WHAT DO THE FARMERS HAVE TO SAY?

“At the beginning, I was worried about how it would work. But I no longer worry. The setting is very easy. The NPK batching is precise. We even counted it and it matches. To me, it is a joy to drive this machine. Currently, I am working at a depth of 40 cm, travelling at a speed of 9 km/h. The NPK batch is set at 200 kg per hectare. I am able to do 25-30 hectares per day. It depends on the field.”

Martin Rajtr,
Farmer, Moravěves (district of Most, CZ)

CONFIGURE YOUR OWN
FERTI-CART FC Trailed Air-Cart

You are one step closer to your new machine.
You can try all the optional equipment in our configurator,
or read more about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

PROFILE FERTILISATION
The application of fertiliser into the soil environment known as profile fertilisation should be carried out together with depth loosening using FENIX cultivators, combined ACTROS cultivators or TERRALAND chisel ploughs. Such precisely placed fertiliser motivates the root system to grow faster and bigger which helps solve current issues with soil moisture. This fertiliser placement system is most often used for establishing deep-rooting crops such as corn, sugar beet or rape.

What are the possibilities of application?

Technical data

The table can be navigated by scrolling sideways.

FERTI-CART FC		FC 3500
Transport width	m	3
Transport length	m	6,6
Transport height	m	3,2
Hopper volume	l	3500
Number of metering units	pcs	1
Filling hole diameter	mm	2060 x 675
Filling height	m	3
Hitch type		towing eye 40, 51, 55, 58, 62, 71, 73
Weight of additional ballast	kg	600 / 1200 / 1500
Transport tyre dimensions		550/60-22,5
Max. total weight*	kg	3600
