MULCHER MZ

A three-rotor, rotary cutter

Configure Brochure Play video
MULCHER MZ
Home Crop residue management Rotary Cutters MULCHER MZ Rotary Cutter

HIGH DAILY OUTPUT IN COMBINATION WITH LOW COSTS

MULCHER MZ three-rotor, heavy duty rotary cutters with a working width of 14′ 9″ – 19′ are very popular cutters that combine high daily outputs with low power demand. The robust frame with hot-dipped galvanised frames predetermines the implement to work in the hardest conditions of agriculture over the long term.

#

14' 9" -19' ft

#

120-200 hp

Key properties

A rotary cutter with a working width of 14′ 9″ – 19′ designed for quality cutting of crop residue, unwanted tree seedlings and grasses, with a high daily output.

CUTTING

An essential operation in crop residue management.

  • Cutting permanent grassland, pastures and meadows
  • Cutting canola, cereal and corn stubble field
  • Cutting unwanted tree seedlings, seeding and land maintenance

Cutting vegetation contributes to a balanced growth of above ground matter, processing ungrazed grass (bad quality fodder not grazed by the cattle), it promotes grass offsetting, and also prevents the development of weeds.

In this case, the rotary cutters crushes, shortens and evenly distributes the mulched material, which is then better incorporated into the soil and also decomposed faster. Cutting is also important for mechanical prevention of diseases and elimination of pests, such as the European corn borer.

Weeds and dispersed tree seeds do well in maintained land. To reduce their occurrence, the land needs to be cutted well to prevent seeding and other unwanted spread.

ROBUSTNESS AND QUALITY OF WORK

Ensures high durability and safety at work.

The MULCHER MZ heavy duty rotary cutters are highly durable and designed for hard work. Hot-dipped galvanisation of the implement provides high resistance to vegetation sap, collision with rocks, or weather conditions.

TWO PAIRS OF BLADES

Perfect material cutting and disrupting in one pass.

Quality cutting requires a large rotor diameter and high circumferential speeds. The MULCHER MZ rotary cutter is equipped with two pairs of shaped blades on the rotor to ensure excellent quality of work. The blades can be used both for cutting grasses and processing crop residue.

SMOOTH SURFACE

Prevents dirt from sticking to the implement.

MULCHER MZ can be equipped with cover plates of the main frames. The plates are smooth and minimise the sticking of plant residue on the implement.

CENTRAL WALKING AXLE

For better terrain contouring

When compared with the standard model, MULCHER MZ can be equipped with a walking version of the central axle. The implement is then able to better contour any terrain unevenness and maintain the set cutting width. You can achieve an even better effect in combination with the tandem version of the side axles.

FRICTION CLUTCH

An effective protection of the gearbox.

The transmission part of the MULCHER MZ rotary cutter is protected against damage (for example, in the case of a collision with a rock, etc.) with a friction clutch that automatically stops all the transmission processes. The p.t.o. shaft connecting the tractor with the gearbox is equipped with a friction clutch.

HIGH-QUALITY P.T.O. SHAFT

By Walterscheid.

When manufacturing BEDNAR rotary cutters, we use high-quality p.t.o. shafts by Walterscheid.

EQUIPMENT FOR MAXIMUM WORK QUALITY

Front fixed blades, spreading deflector or armouring.

  • FRONT FIXED BLADES
  • SPREADING DEFLECTORS
  • ARMOURING

Fixed blades that provide the final cutting of the cutted material are installed in the front part of the cutting area to increase the crushing effect. That easily increases the quality of material cutting.

The spreading deflectors ensure that the rotary cutter works perfectly as they evenly spread the cutted material. They prevent the formation of plant clumps and larger amounts of matter in one place.

The MULCHER MZ rotary cutter is equipped with replaceable armoured plates that protect the implement frame from damages. Moreover, each rotor is protected with its own cover, which enables to work in an extremely low position above the ground.

TRASH-FAN

Implement cleaning equipment.

The main component is the fan that creates a stream of air and the wind straighteners direct air to the risk areas on the implement surface. The equipment prevents dirt and plant matter from sticking on the cutter surface. It improves work safety and reduces time spent with cleaning.

ARE YOU INTERESTED IN THIS IMPLEMENT? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Contact us Find a dealer

Machine description

A concise summary of the main working tools of the rotary cutter.

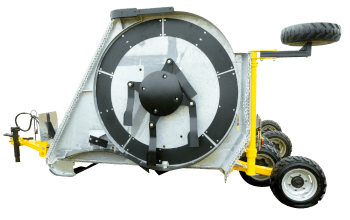

MULCHER MZ Rotary Cutter

Take a look at your future machine.

# # # # # # #
Drawbar

The rotary cutter is easily connected to the bottom or top tractor hitch. It can also be connected using the K80 ball pin.

Blades

Two pairs of bent blades provide an excellent cutting and crushing effect. There are two blade models available – grass and corn.

Axle

The central walking axle provides excellent terrain contouring, and even better contouring when compared with the standard model.

Frame covers

Smooth plates minimize the accumulation of plant residues on the rotary mower and facilitate cleaning.

SKID Plates

The skid plates and shoes maintain the set cutting height.

Hot-dipped galvanized frames

They provide an outstanding resistance to aggressive vegetable saps or mechanical damage (e.g., collision with a rock).

Trash-Fan for implement cleaning

It prevents dirt and plant matter from sticking on the implement surface and increases work safety.

WHAT DO THE FARMERS HAVE TO SAY?

“We decided to purchase the cutter after we saw a demonstration in a grain corn stubble field and meadow grass. We tried competitive cutters in the same conditions, but the quality of work did not meet our demands. Therefore, the MULCHER MZ 6000 was the obvious choice; it worked perfectly in the stubble field as well as in the meadows. Another decisive factor was that the rotary cutter, with a working width of 19 ft does not need such a towing power as the competitive implements.”

Pavel Jones,
Implement operator, ZOD Rasosky, Rasosky (district of Nachod, CZ)

Accessories

We know that everyone has different requirements for the optional implement equipment and its expected use. Therefore, you can specify your MULCHER MZ trailed rotary cutter to precisely match your needs.

CONFIGURE YOUR OWN
MULCHER MZ Rotary Cutter

You are one step closer to your new implement.
You can try all the implements in our configurator,
or read about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

CROP RESIDUE MANAGEMENT
Processing crop residue after harvest is important for several reasons. Crop residue is a source of organic matter therefore it is not desirable to simply leave it in the field without attention. Crop residue may be unevenly spread which aggravates tillage and the clumps facilitate the spread of diseases and breeding of pests.

How to work with crop residue?
The table can be navigated by scrolling sideways.
MULCHER MZMZ 15' MZ 15' MZ 20'
Cutting widthft14' 9" 14' 9" 19'
Transport widthft7' 3" 7' 3" 7' 10"
Transport lengthft18' 8" 18' 8" 19' 8"
Transport heightft7' 7" 7' 7" 9' 2"
Power take-off speedRPM5401 0001 000
Rotor protectionfriction clutchfriction clutchfriction clutch
Rotation axisverticalverticalvertical
Number of rotorspcs333
Number of blades / rotorpcs444
Peripheral speed of bladesft/min7086 7086 7086
Maximum cutted material diameter in2" 2" 2"
Working angle of side frames−15° do +45°−15° do +45°−15° do +45°
Horsepower requirement*hp120 - 140120 - 140150 - 200
Frame typefoldingfoldingfolding
Hitch typelug 40, 50 / K80lug 40, 50 / K80lug 40, 50 / K80
Tire size 27x8,5-15 27x8,5-15 27x8,5-15
Max. total weight**lb6,966 6,966 8,309

*according to the machine equipment

At BEDNAR we work continuously to keep the information on this website accurate, up-to-date and useful. As we are dedicated to improving your experience and best farming performance, some specifications may be enhanced beyond what is currently shown. Complete technical specifications will be confirmed with your authorized BEDNAR representative at the time of ordering.
