VERSATILL VO_L

A semi-mounted cultivator for shallow soil cultivation after harvest and seedbed preparation.

LIGHT TINE CULTIVATOR FOR A VERSATILE USE

The VERSATILL VO_L semi-mounted cultivator is designed for seedbed cultivation, also in conditions with crop residues on the surface. Its low weight makes it ideal for early spring soil cultivation. The machine can also be used for the first stubble cultivation after harvest in lighter soils.

#

2-15 cm

#

5,8-7,5 m

#

200-400 hp

Key properties

A semi-mounted tine cultivator with a wide range of uses throughout the year for shallow stubble cultivation, seedbed preparation and mechanical weeding.

WORKING TINES IN FIVE ROWS

Excellent soil profile cultivation along the entire working width.

The VERSATILL VO_L semi-mounted cultivator provides excellent throughput thanks to tines arranged in five rows. The spacing between the individual tines is 17 centimetres, thanks to which the machine can also be used in conditions with high quantities of crop residue. 100% tine overlapping provides excellent undercutting of the soil profile and even cultivation along the entire working width of the machine.

VERSATILL_VO_6000_LIGHT_Slupice
VERSATILE SEEDBED CULTIVATOR

Ideal for creating a fine seedbed structure.

The light and yet robust frame makes VERSATILL VO_L suitable for early spring seedbed cultivation. Five rows of tines can be equipped with different types of chisels or sweeps. Levelling section or the Crushbar levelling bar can be installed behind the main section in combination with rear packers, or the machine can be equipped with a three-row harrow.

versatill vo_l seedbed cultivator ideal for creating a fine seedbed structure
WORKING TINES

Standard or reinforced.

The semi-mounted VERSATILL VO_L tine cultivator is fitted with single-spring tines in the Hercules configuration. These tines are suitable for lighter soils. In case of heavier soils or intense use of the machine for shallow stubble cultivation up to 10 cm, we recommend using the reinforced Hercules tines (reinforced double-spring tines).

RŮZNÉ TYPY SLUPIC
CHISELS OR SHARES?

Choose the ideal equipment for stubble cultivation or seedbed cultivation.

Tines can be equipped with shares or chisels according to the expected application. Shares are available in 200 mm and they guarantee 100% overlapping; the 200 mm LONG LIFE sweep has carbide cutting edges that increase its service life. The 60 mm double-sided chisels are suitable for early spring soil preparation or stubble cultivation in lighter soils. We also offer 50 mm LONG LIFE chisels with carbide cutting edges.

VERSATILL_Radlicky_dlata
HYDRAULICALLY-CONTROLLED LEVELLING BAR

A perfectly prepared field in one pass.

Soil should be moved as few times as possible, especially during spring cultivation to preserve the winter moisture in soil. The VERSATILL VO_L cultivator can be equipped with the hydraulically-controlled Crushbar levelling bar in the front, the working angle of which can be comfortably controlled from the tractor cabin during work. The machine can be equipped with a second Crushbar levelling bar on request, installed before the rear packers.

versatill vo_l seedbed cultivator hydraulically controlled levelling bar a perfectly prepared field in one pass.
EXCELLENT FOR CULTIVATING A STUBBLE FIELD

VERSATILL VO_L in combination with the Trash Cutter cutting roller.

The VERSATILL VO_L cultivator can be used for shallow and quick stubble cultivation after harvest. Thanks to the perfect overlapping of the shares, the field is undercut evenly. For intense crop residue processing, namely sunflower or winter rapeseed, we recommend adding the Trash Cutter cutting roller to VERSATILL VO_L. The small diameter of the cutting roller offers a high circumferential speed, providing a perfect cutting and crushing effect.

VERSATILL_VO_6000_LIGHT_Trash_Cutter
CONVENIENT HYDRAULIC CONTROL

For easy working depth setting in the basic equipment.

The working depth is adjusted via hydraulics from the comfort of the driver’s cab. Hydraulic working depth adjustment is included as standard. The working depth of the VERSATILL VO_L tine cultivator is adjusted on the transport axle of the machine and on the axles of the side frames by inserting the necessary number of hydroclips.

A_VERSATILL_VO_6000_LIGHT_Hydraulicke_nastaveni_naparava
INTEGRATED TRANSPORT AXLE

Work completely without using the rear packers.

The transport axle is mounted at the centre of the machine, which reduces the turning radius at headland, but above all, allows for work without the rear packers. Instead of the rear packers, the machine can be equipped with a three-row harrow with mechanical or hydraulic adjustment of the working angle. An ideal machine for mechanical weeding.

versatill vo_l seedbed cultivator integrated transport axle work completely without using the rear packers.

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Contact us Find a dealer

Machine description

A concise summary of the main working parts of semi-mounted seedbed cultivator.

VERSATILL VO_L Semi-Mounted Tine Seedbed Cultivator

Take a look at your future machine.

# # # # # # # # #
Tractor track eradicators

Used for loosening hardened tractor tracks.

Hydraulic drawbar

Provides excellent terrain contouring and easy connection to various types of tractor hitches.

Crushbar levelling bar

The hydraulically adjustable paddle levelling board is used for breaking the rough furrow and for initial levelling of terrain unevenness.

Chisel working section

Ensures excellent undercutting and mixing of crop residue with soil. There are four types of working parts available (chisels or sweeps) to adjust the machine to the operation needed.

Integrated transport axle

Reduces the turning radius at headland and increases machine stability during transport.

Support wheels

Located on the side frames, they are used to perfectly follow the terrain and maintain the set working depth.

Levelling section

Guarantees even soil levelling behind the tine section. The levelling section angle is set mechanically.

Rear packers

Create an ideal fine soil structure and close the soil surface to prevent evaporation.

OUR INNOVATIVE TECHNOLOGIES

LONG-LIFE CHISELS

The reinforced LONG-LIFE chisels with an extended service life are fitted with carbide tips. The durability of such chisels is multiple times longer, namely in abrasive soils. The time spent replacing chisels can be thus used more efficiently.

LONG-LIFE CHISELS

HYDRAULIC DRAWBAR

The hydraulic cylinder of the drawbar provides excellent terrain contouring. It removes tension affecting the machine drawbar and absorbs shocks, even at high working speed

HYDRAULIC DRAWBAR

Accessories

We know that everyone has different requirements for the optional machine equipment and its expected use. Therefore, you can specify your own VERSATILL VO_L semi-mounted tine cultivator to precisely match your needs.

Front equipment

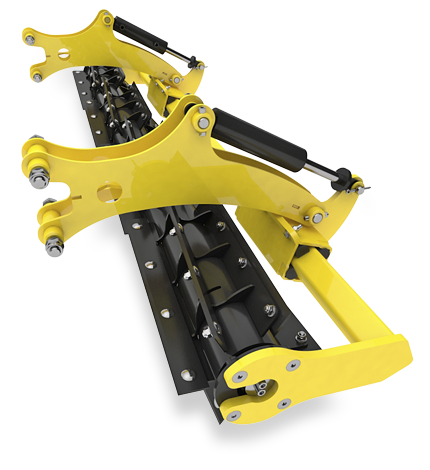

Front cutting roller Trash Cutter

The front, screw-shaped Trash Cutter roller is equipped with sharp blades. The small roller diameter enables to achieve a high circumferential speed. The roller provides an excellent cutting effect in processing the stalks of oilseed rape, sunflower, or catch crop. Thanks to that, the crop residue is mixed with soil better, which accelerates its decomposition. The down pressure of the roller is controlled hydraulically from the tractor cabin.

Tractor track eradicators

It is used for loosening hardened tractor tracks.

VERSATILL_VO_6000_LIGHT_Kyprice_stop_polovinaVERSATILL_VO_6000_LIGHT_Kyprice_stop_polovina

Support wheels

Maintain the set working depth and prevent swaying of the machine. The support wheels are set mechanically.

VERSATILL_VO_6000_LIGHT_Podperna_kolaVERSATILL_VO_6000_LIGHT_Podperna_kola

Optional equipment to be mounted in front of the packers

Crushbar levelling bar

The levelling bar before the rear packers is used for levelling off any unevenness after the chisel section. The packers then consolidates the soil but do not level it. The outcome is a perfectly levelled field.

VERSATILL_VO_6000_LIGHT_Paskovy_symk_predniVERSATILL_VO_6000_LIGHT_Paskovy_symk_predni

Levelling spring section

The backfilling rods along the entire working width of the machine are used for levelling the surface before the rear packer. Suitable equipment for machines used in lighter soils. The rod angle is set mechanically.

VERSATILL_VO_6000_LIGHT_Zahrnovaci_hokejky_celeVERSATILL_VO_6000_LIGHT_Zahrnovaci_hokejky_cele

Levelling spring section – edge

The backfilling rods on the edge of the machines prevent the formation of ridges that occur during follow-up passes.

VERSATILL_VO_6000_LIGHT_Zahrnovaci_hokejky_bocniVERSATILL_VO_6000_LIGHT_Zahrnovaci_hokejky_bocni

Other

Three-row harrow

The three-row harrow is suitable for the final seedbed cultivation. It is especially recommended for spring soil cultivation. The working angle can be controlled mechanically or hydraulically.

VERSATILL_VO_6000_LIGHT_ZavlacovacVERSATILL_VO_6000_LIGHT_Zavlacovac

Rollers and packers

Double U-RING Packer (500 mm)

The U-RING packer is a double-row steel packer. The rows are offset, which provides an excellent self-cleaning effect. The packer is great for crumbling, and the U-shape rings and the low risk of clogging make it suitable for work in wet conditions. The double packer increases machine stability at work. Packer diameter 500 mm.

Double U-RING PackerDouble U-RING Packer

AGRONOMICAL GUIDE

SEEDBED CULTIVATION
Soil preparation is an important operation for the formation of a uniform and balanced seedbed prior to crop establishment. Each crop and field requires different soil preparation based on the climate, or the chosen date of cultivation. The aim of the seedbed cultivation is to create an ideal soil structure in the field, with a harder bottom and loose top soil layer, to level the field after previous operations, and to open, warm up and aerate the soil profile for even crop emergence.

Do you know how to prepare soil properly?

Technical data

The table can be navigated by scrolling sideways.
VERSATILL VO_LVO 6000 L VO 7500 L
Working widthm5,87,5
Transport widthm33
Transport lengthm7,37,3
Transport heightm3,34
Number of tinespcs3344
Working depth*cm1515
Type of tine protectionpružné slupicepružné slupice
Tine spacingcm1717
Tine distance in a rowcm6868
Frame clearancecm6262
Hitch typecrossbar cat. III / towing eye 40, 51, 71 / K80crossbar cat. III / towing eye 40, 51, 71 / K80
Maximum axle loadkg2 230 - 5 7802 470 - 6 350
Maximum hitch loadkg550 - 750630 - 960
Transport tyre dimensions15.0/55-1715.0/55-17
Support wheel dimensions23x8.5-1223x8.5-12
Power demandhp200 - 350250 - 400
Total weight**kg2 780 - 6 5303 100 - 7 310

* depends on soil conditions ** according to the machine equipment
