STRIEGEL-PRO PN

A universal straw harrow for year-round application

MOUNTED STRAW HARROW FOR CROP RESIDUE MANAGEMENT AND SOIL CULTIVATION

The STRIEGEL-PRO PN straw harrow is a universal model of the popular straw harrow with five rows of rods, available in working widths of 6-9 metres. The lightweight straw harrow model is suitable for aggregation with tractors with horsepower from 80. The wide variability of front equipment makes the straw harrow suitable for use throughout the whole year.

#

0-4 cm

#

6-9 m

#

80-220 hp

Key properties

A mounted straw harrow for crop residue management, light soil cultivation, as well as treatment of permanent grassland.

STRIEGEL-PRO PN STRAW HARROW

A simple machine with many agronomic advantages.

The lightweight STRIEGEL-PRO PN straw harrow brings many agronomic advantages and offers a wide range of applications. It is primarily designed for even distribution of crop residue after harvest and for starting the growth of unwanted cereal seeds. However, it can also be used in light spring soil cultivation, aeration of cereal crop, permanent grassland, including the option of supplementary fertilization, or establishment of catch crop.

The lightweight STRIEGEL-PRO PN straw harrow brings many agronomic advantages and offers a wide range of applications. It is primarily designed for even distribution of crop residue after harvest and for starting the growth of unwanted cereal seeds. However, it can also be used in light spring soil cultivation, aeration of cereal crop, permanent grassland, including the option of supplementary fertilization, or establishment of catch crop.

The lightweight STRIEGEL-PRO PN straw harrow brings many agronomic advantages and offers a wide range of applications. It is primarily designed for even distribution of crop residue after harvest and for starting the growth of unwanted cereal seeds. However, it can also be used in light spring soil cultivation, aeration of cereal crop, permanent grassland, including the option of supplementary fertilization, or establishment of catch crop.

The lightweight STRIEGEL-PRO PN straw harrow brings many agronomic advantages and offers a wide range of applications. It is primarily designed for even distribution of crop residue after harvest and for starting the growth of unwanted cereal seeds. However, it can also be used in light spring soil cultivation, aeration of cereal crop, permanent grassland, including the option of supplementary fertilization, or establishment of catch crop.

Soil cultivation Maintenance of meadows and pastures Disruption of soil crust Rozprostření posklizňových zbytků
FIVE-ROW ROD SECTION

For intense working effect.

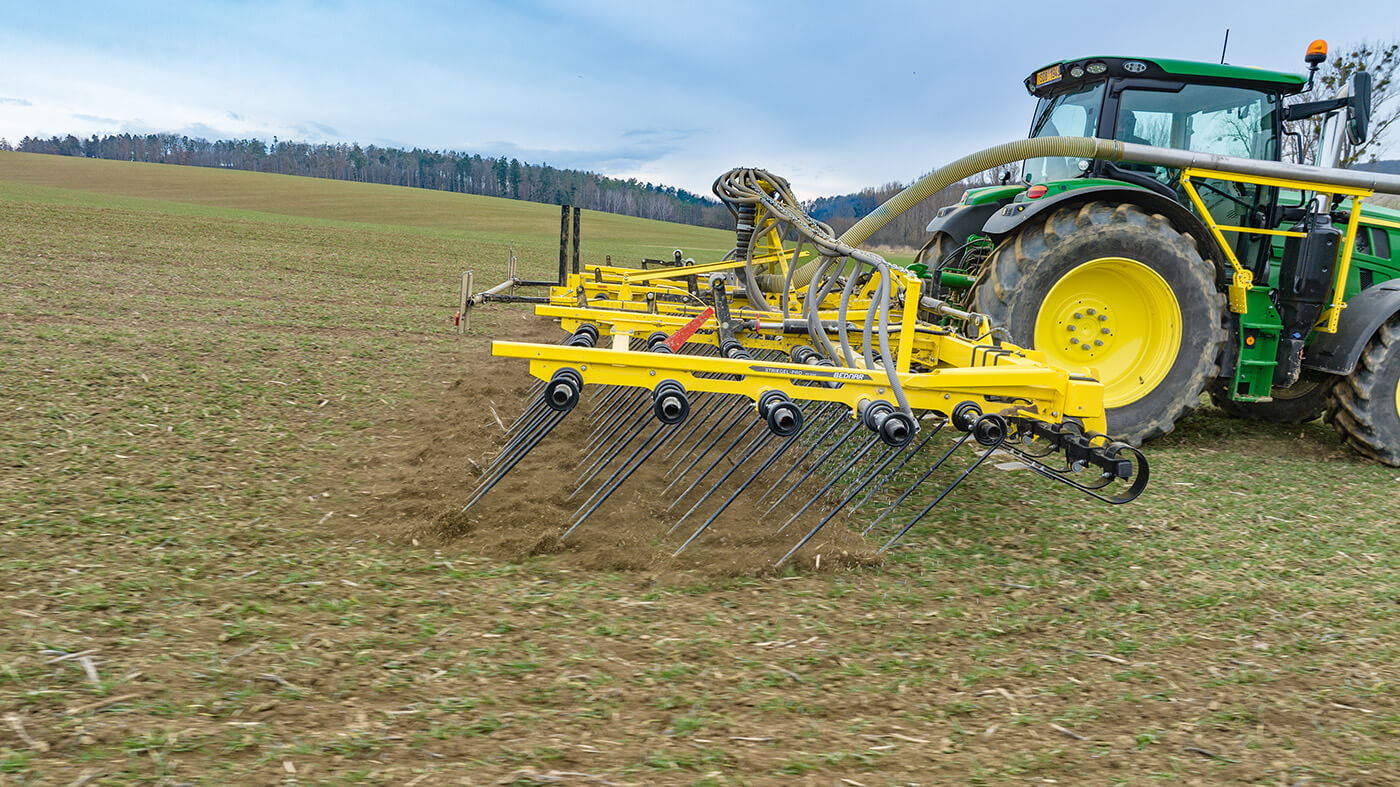

The semi-mounted STRIEGEL-PRO PN harrow excels in a simple machine design with a five-row rod section, with individual rods measuring 16 × 700 mm. This arrangement provides for a large overlap of the individual rods. The rod section can be easily set from the tractor cabin using the hydraulics. The working angle of the two rear rows can be adjusted mechanically and completely independently on the angle of the first three rows.

FIVE-ROW ROD SECTION
FRONT EQUIPMENT

A wide equipment variability for perfect machine modification.

The hydraulically controlled Crushbar leveller is especially suitable for spring soil cultivation, initial surface levelling, and breaking the rough furrow. The individual leveller strips are reinforced and 80 mm wide. The leveller is easily controlled using the hydraulic circuit from the comfort of the cabin.

The specially shaped TURBO coulter is made of a cutting disc with a sharp edge that easily penetrates soil. The coulter only brings a small amount of soil up. The sharp edge is suitable for reducing the stalk length of cereals, oilseed crop, or for aerating grassland.

The front, screw-shaped Trash Cutter roller is equipped with sharp blades. The small roller diameter enables it to achieve a high circumferential speed. The roller provides an excellent cutting effect in processing the stalks of oilseed rape, sunflower, or catch crop. Thanks to that, the crop residue is mixed with soil better, which accelerates its decomposition. The down pressure of the roller is controlled hydraulically from the tractor cabin.

Crush bar leveller Cutting TURBO coulters Trash Cutter roller
ALFA-DRILL SEEDING UNIT

Establishing catch crop in one pass.

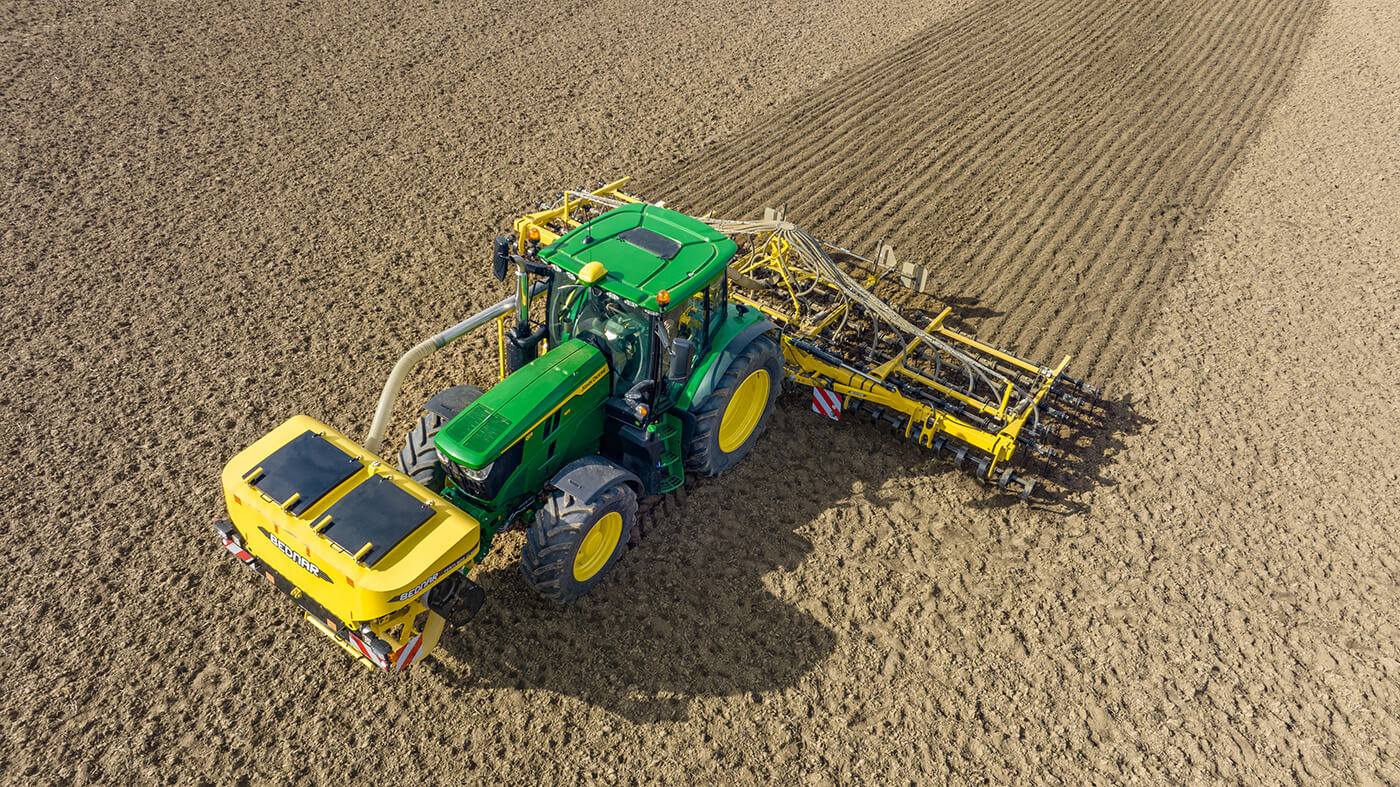

The STRIEGEL-PRO PN mounted straw harrow can be equipped with the BEDNAR ALFA DRILL seeding unit while in production, for seeding catch crop, small-seed crop, or for applying micro-granulate in crop residue management in one pass. The time and fuel savings are considerable. The seeding unit has a capacity of 400 or 800 litres.

Výsevní jednotka ALFA DRILL
LONG-LIFE RODS

Up to 10 times longer service life than the standard version.

The rods may get worn faster especially when working in stubble fields in the dry season, therefore, we recommend equipping the straw harrow with LONG LIFE rods that have carbide tips. The LONG LIFE rods have a longer service life. The quality of work does not change in relation to the wear when using the LONG LIFE rods.

PRUTY LONG LIFE

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Contact us Find a dealer

Machine description

A concise summary of the main working parts of the mounted straw harrow.

STRIEGEL-PRO PN Straw Harrow

Take a look at your future machine.

# # # #
Three-point hitch

The mounted straw harrow is easily aggregated using the tractor three-point hitch.

Trash Cutter roller

Cuts crop residue, namely the stalks of sunflower, corn or oilseed rape, and facilitates their incorporation and mixing with soil. The optimal size of crop residue accelerates decomposition.

Rod section

The five-row rod working section provides perfect overlapping of the individual rods for an intense working effect. Rods with a dimension of 16 × 700 mm.

OUR INNOVATIVE TECHNOLOGIES

LONG-LIFE RODS

The LONG-LIFE rods for the straw harrow are made of spring steel with a diameter of 16 mm, and their tips are fitted with carbide. The LONG-LIFE rods increase quality of work and provide an outstanding durability.

LONG LIFE PRUTY
STRIEGEL-PRO PN

WHAT DO THE FARMERS HAVE TO SAY?

“I use the STRIEGEL‑PRO straw harrow for even distribution of crop residue in the stubble field. The cereal stubble breaking is better. STRIEGEL‑PRO is ideal for fast emergence of the unwanted rape seeds.”

Petr Korous,
a co-owner, Poplze (district of Litoměřice, CZ)

Accessories

We know that everyone has different requirements for the optional machine equipment and its expected use. Therefore, you can specify your STRIEGEL-PRO PN mounted straw harrow to precisely match your needs.

Front equipment

Crushbar leveller

The hydraulically controlled Crushbar leveller is especially suitable for spring soil cultivation, initial surface levelling, and breaking the rough furrow. The individual leveller strips are reinforced and 80 mm wide. It is easily controlled using the hydraulic circuit from the comfort of the cabin.

CRUSHBAR LEVELLERCRUSHBAR LEVELLER

TURBO coulter section

The specially shaped TURBO coulter is made of a cutting disc with a sharp edge that easily penetrates soil. The coulter only brings a small amount of soil up. The sharp edge is suitable for reducing the stalk length of cereals, oilseed crop, or for aerating grassland.

TURBO coulter sectionTURBO coulter section

Front cutting roller Trash Cutter

The front, screw-shaped Trash Cutter roller is equipped with sharp blades. The small roller diameter enables to achieve a high circumferential speed. The roller provides an excellent cutting effect in processing the stalks of oilseed rape, sunflower, or catch crop. Thanks to that, the crop residue is mixed with soil better, which accelerates its decomposition. The down pressure of the roller is controlled hydraulically from the tractor cabin.

Front cutting roller Trash CutterFront cutting roller Trash Cutter

Other

ALFA-DRILL seeding unit

It is used for planting catch crop, grasses, or for all-area fertiliser application. You can do two operations in one pass and reduce your costs.

ALFA-DRILL seeding unitALFA-DRILL seeding unit

CONFIGURE YOUR OWN
STRIEGEL-PRO PN Straw Harrow

You are one step closer to your new machine.
You can try all the equipment in our configurator,
or read about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

CROP RESIDUE MANAGEMENT
Processing crop residue after harvest is important for several reasons. Crop residue is a source of organic matter therefore it is not desirable to simply leave it in the field without attention. Crop residue may be unevenly spread which aggravates soil cultivation and the clumps facilitate the spread of diseases and breeding of pests.

How to work with crop residue?

Technical data

The table can be navigated by scrolling sideways.
STRIEGEL-PRO PNPN 6000PN 7500PN 9000
Working widthm67,59
Transport widthm2,82,83
Transport lengthm3,53,53,6
Transport heightm3,13,83,7
Working depthcm0 - 40 - 40 - 4
Number of tinespcs555
Tine diametermm161616
Tine lengthmm 707070
Tine spacingcm666
Tine angle controlhydraulichydraulichydraulic
Frame typefoldingfoldingfolding
Recommended towing engine horsepowerhp80 - 120140 - 180180 - 220
Max. total weight*kg1 590 - 2 9301 780 - 3 3002 090 - 3 800

*according to the machine equipment
