ATLAS AN_PROFI

A robust mounted disc harrow for processing large quantities of crop residue

ROBUST MOUNTED DISC HARROW

The robust construction of the AN_PROFI mounted disc harrow is the guarantee for easy penetration into the soil and incorporation of large amounts of crop residues together with the large diameter of the discs (620 × 6 mm). The AN_PROFI mounted disc harrow is particularly suitable for smaller farmers who want to perform tillage to a depth of up to 16 centimeters.

#

6-16 cm

#

3-3,5 m

#

150-260 hp

Key properties

A robust frame of compact disc harrow designed for tillage to a depth of 16 centimeters and incorporation of large amounts of crop residues.

DISCS WITH A LARGE DIAMETER 620 × 6 MM

Excellent cutting, mixing and incorporation of matter.

The main advantage of ATLAS AN_PROFI compact disc harrows is the disc section equipped with large diameter discs measuring 620 × 6 mm. The mounting of individual discs ensures precise and consistent guidance of the discs in the soil, resulting in uniform processing of the soil profile. The disc section can be fitted with notched discs or aggressive discs. Aggressive discs offer a specially profiled shape that contributes to better penetration into the soil and, above all, have a better cutting and mixing effect.

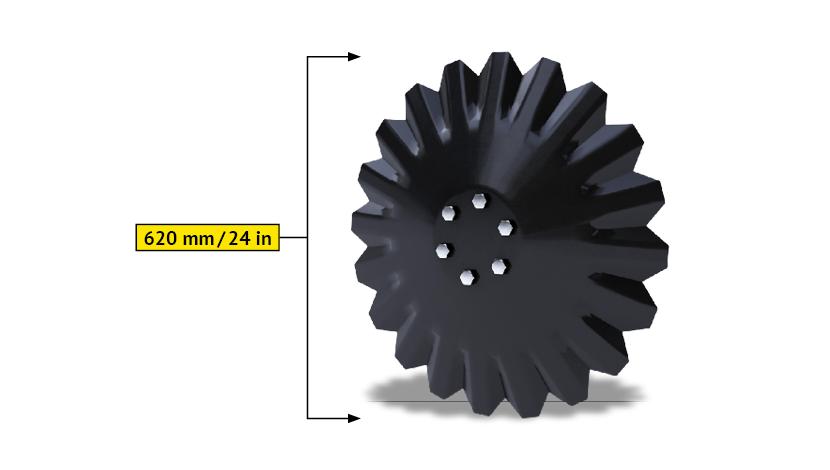

ATLAS_AN_Aggresive_Discs_Diameter_cm_in
OUTSTANDING CLEARANCE

Provides trouble-free work with large quantities of crop residue.

ATLAS AN_PROFI machines offer excellent frame clearance, which allows these robust disc harrows to mix and incorporate large amounts of organic matter, crop residues, or catch crops with outstanding results.

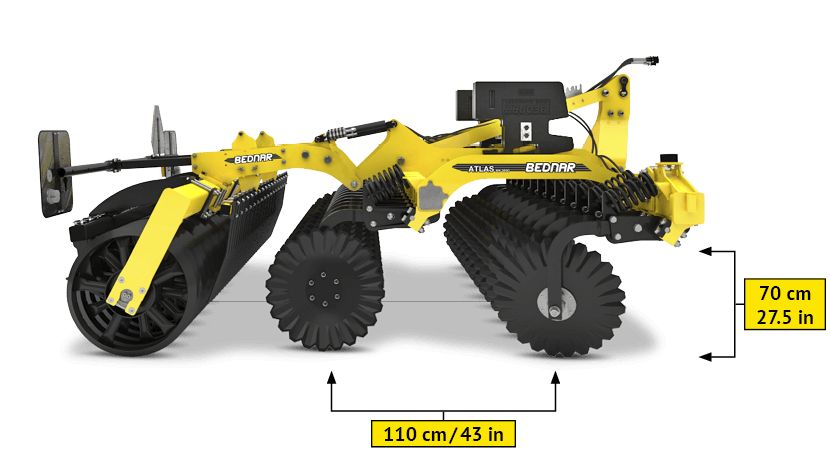

ATLAS_AN_3000_PROFI_Space_Between_Sections_Frame_Clearance

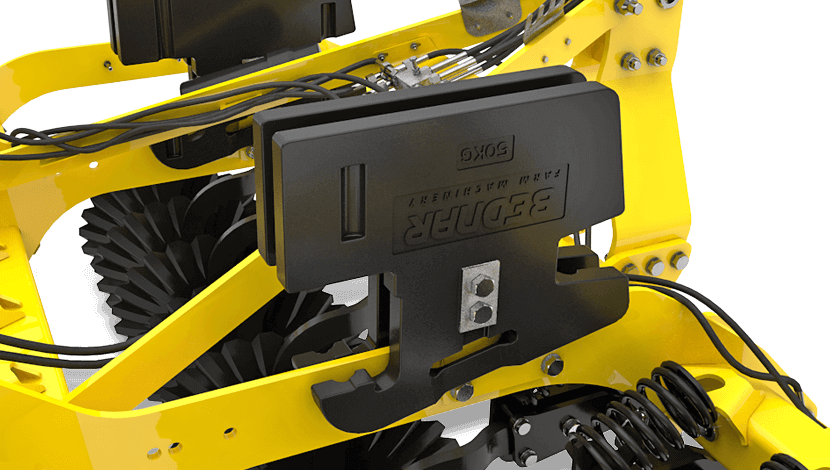

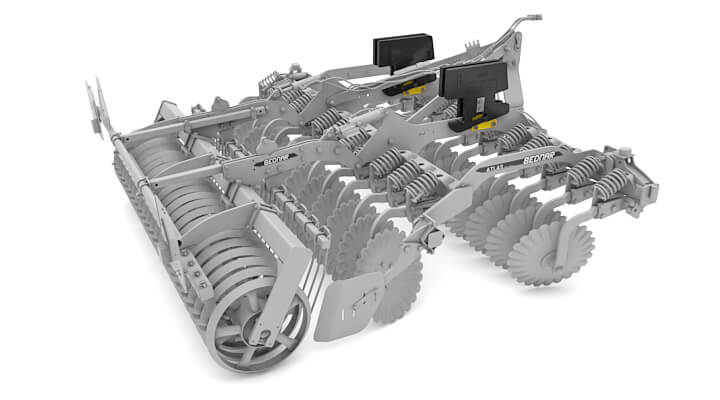

ADDITIONAL WEIGHT

Facilitates soil penetration and improves work during drought.

The total weight of up to 3,350 kilograms, combined with a robust frame, allows AN_PROFI models to be equipped with additional weights with a total weight of up to 200 kg. The weights increase the pressure on the disc sections, facilitating penetration into the soil, which can be particularly problematic when working in dry conditions.

PŘÍDAVNÉ ZÁVAŽÍ

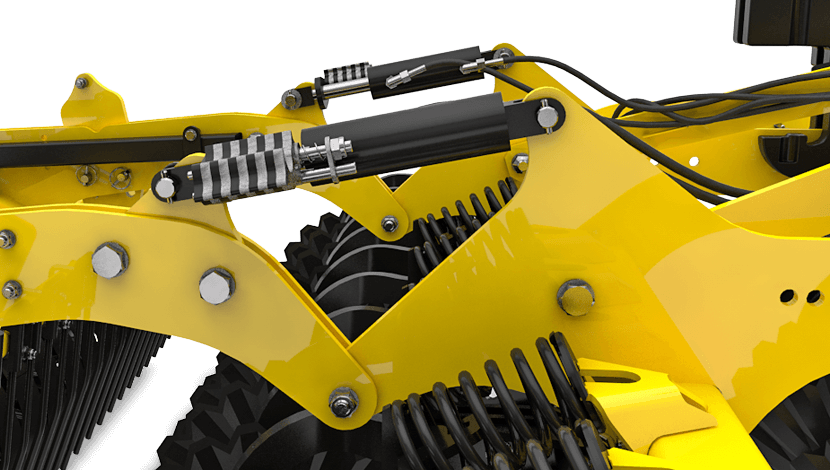

HYDRAULIC ADJUSTMENT

Allows easy adjustment of working depth.

Setting the working depth of the machine is simple and convenient thanks to the flip-over hydraulic spacers located on the rear hydraulic cylinders, which connect the machine frame to the frame of the consolidation and crumbling rammers.

HYDRAULICKÉ NASTAVENÍ

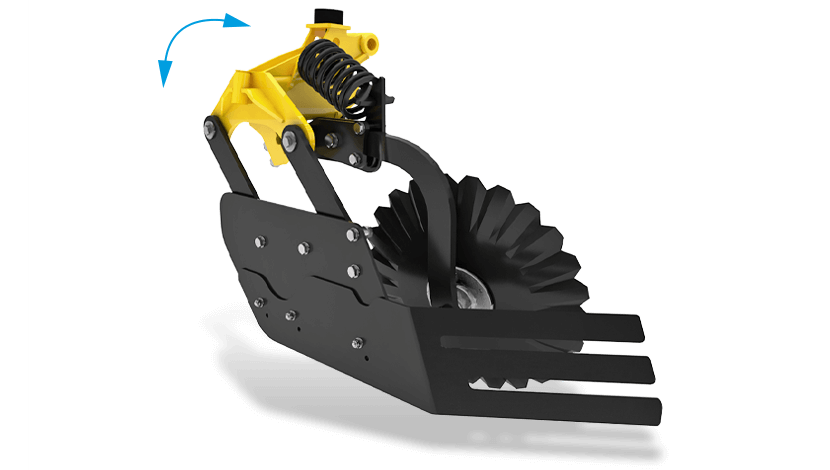

FOLDING SIDE DISCS

For a full working width and safe transport.

To ensure safe transport, the side discs are folded upwards. The discs can be folded mechanically or conveniently hydraulically from the cab. The hydraulic solution is particularly suitable for frequent road transport. Folding the side discs into the working position allows the full working width of the machine (three meters) to be utilized.

SKLÁPĚNÉ BOČNÍ DISKY

ARE YOU INTERESTED IN THIS MACHINE? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Contact us Find a dealer

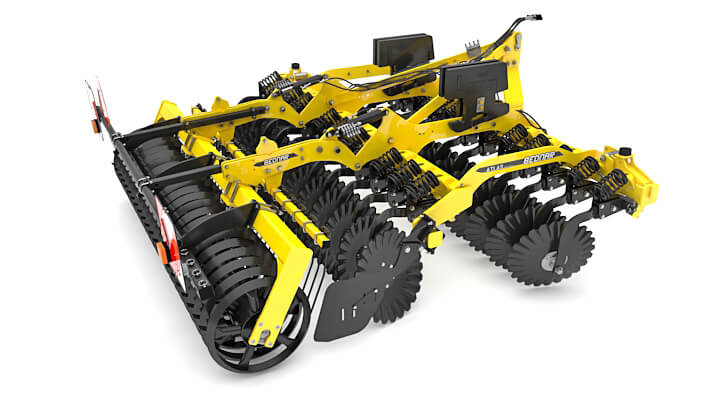

Machine description

A concise summary of the main working parts of the disc harrow.

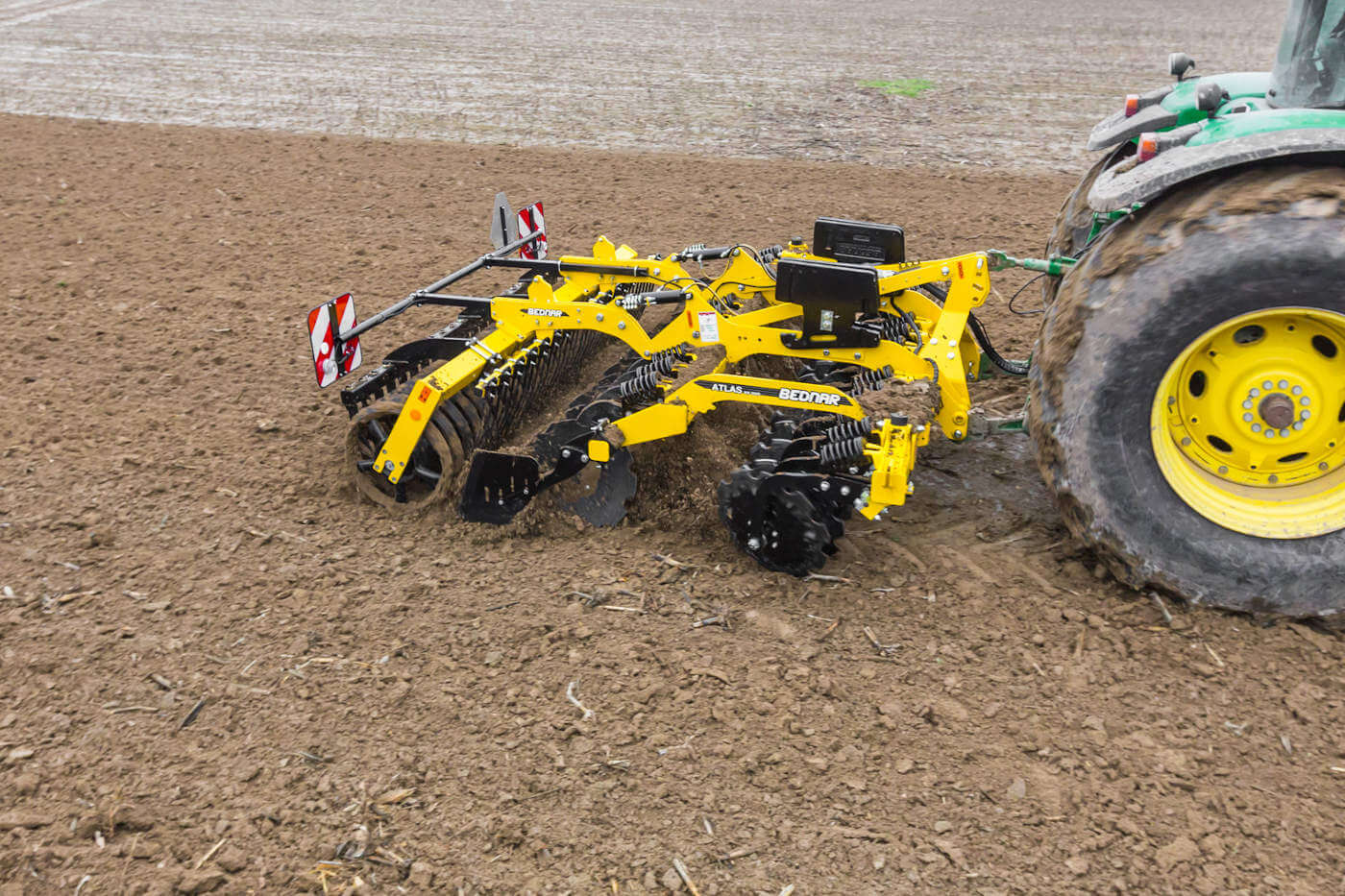

ATLAS AN_PROFI Mounted Disc Harrow

Take a look at your future machine.

# # # # # # #

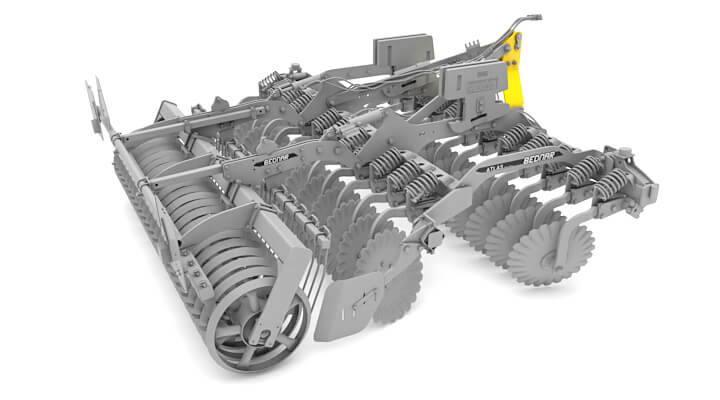

Three-point hitch

Easy connection to the three-point hitch of the tractor. Category II/III hitch

Working depth adjustment

Comfortable hydraulic working depth adjustment from the tractor cabin.

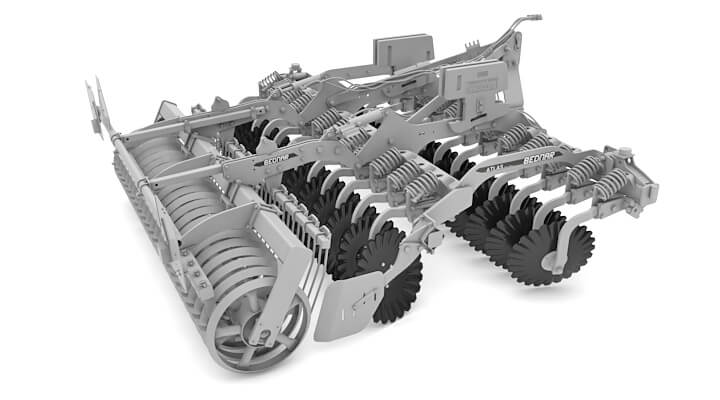

Disc section

Disc section design with notched or aggressive discs with a diameter of 620 × 6 mm with an auto-reset spring protection system.

Robust frame

Provides high clearance in conditions with larger quantities of crop residue and the use of optional ballast weight.



Ballast weight

Adds weight to the machine frame and facilitates disc penetration of soil.

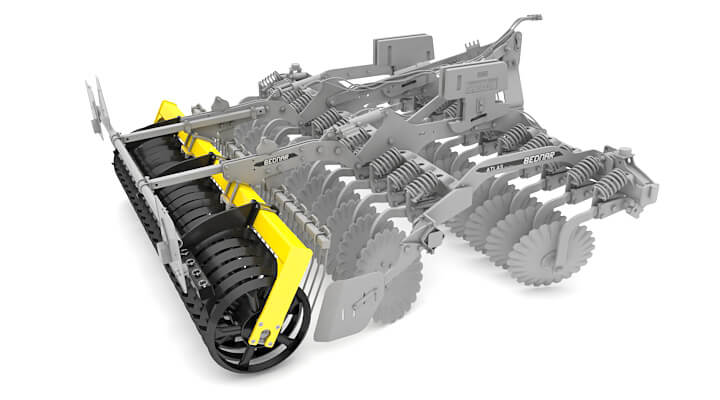

Rear packers

They ensure the consolidation and closure of the soil profile for uniform emergence of seedlings and reduction of soil moisture evaporation.

OUR INNOVATIVE TECHNOLOGIES

HORIZONTAL AUTO-RESET ARMS PROTECTION

AUTO-RESET arms protection is provided by a horizontal spring, which provides ideal digging force of each disc. It is designed especially for heavier and dry soils.

DVĚ PRACOVNÍ OPERACE ŠETŘÍ ČAS A PENÍZE

FLEXI-BOX MOUNTING OF ARMS TO THE FRAME

FLEXI-BOX provides a maintenance-free mounting of arms to the frame. Each pin is fixed in a casing with special segments. The design does not require any lubrication, and it also reduces micro-vibrations transmitted from the discs to the frame.

FLEXI-BOX MOUNTING OF TINES TO THE FRAME

MAINTENANCE-FREE BEARING DESIGN

The discs are placed in maintenance-free ball bearings with lifelong charge. The tightness of the bearing is ensured by a cartridge git seal. They are oversized, which ensures trouble-free operation.

BEZÚDRŽBOVÉ ŘEŠENÍ LOŽISEK

WHAT DO THE FARMERS HAVE TO SAY?

“We bought the ATLAS AN_PROFI to replace our old cultivator. We were convinced by the 620 mm diameter discs, spring protection, but above all by the hydraulically folding side discs and hydraulic depth control. With this compact disc harrow, we no longer need to get out of the tractor.“

Eta Selvia Patrick,
Francie

Accessories

We know that everyone has different requirements for machine equipment and its intended use. That is why we allow you to customize your ATLAS AN_PROFI compact disc harrow exactly as you require.

Disc section

Aggressive discs

The specially shaped discs offer superior cutting and mixing effect, penetrating dry soil effectively. With aggressive edges along the circumference, they seamlessly incorporate a large quantity of crop residue. Sharp blades efficiently cut through residue, and the profiled shape ensures optimal soil residue mixing. Available in a diameter of 620 x 6 mm.

Aggressive discsAggressive discs

Notched discs

The disc section is usually equipped with notched discs, with a diameter of 620 × 6 mm.

Serrated discsSerrated discs

Rollers and packers

U-RING Packer

U-RING is a steel packer suitable for all types of soil with quality crumbling and low stickiness. The individual rings are U-shaped. Packer diameter 500 mm. Weight: 122 kg/m.

U-RING PackerU-RING Packer

DOUBLE-ROLLER Packer

This packer consists of a tube and slatted packer with different diameters. The packer is suitable for cultivating medium and light types of soil in drier conditions. Packer diameter 470 and 370 mm. Weight: 132 kg/m.

DOUBLE-ROLLER PackerDOUBLE-ROLLER Packer

V-RING Packer + scrapers

V-RING is a heavy steel packer suitable for intense crumbling and reverse soil consolidation. The packer is suitable for all types of soil. Packer diameter 630 mm. Weight: 169 kg/m (including scrapers).

V-RING Packer + scrapersV-RING Packer + scrapers

Steel Ring Packer + scrapers

The segmented packer is made of massive steel parts for perfect consolidation, suitable for all types of soil. The individual segments perfectly crumble clods. Packer diameter 530 mm. Weight: 202 kg/m (including scrapers).

SEGMENTED Packer + scrapersSEGMENTED Packer + scrapers

CAGE Packer

The cage packer is made of massive steel rods with a good crumbling effect, particularly when reaching higher working speed. Packer diameter 630 mm. A suitable design for light soils. Weight: 121 kg/m.

TUBE PackerTUBE Packer

CONFIGURE YOUR OWN
ATLAS AN_PROFI Mounted Disc Harrow

You are one step closer to your new machine.
You can try all the optional equipment in our configurator,
or read more about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

STUBBLE CULTIVATION
Quality and fast stubble cultivation is one of the most important operation. According to good agrotechnical practices, it should be carried out as soon as possible after the harvest. This will ensure the optimization of soil moisture management, the rapid emergence of weeds and thus prevent the later weeding of land.

Technical data

The table can be navigated by scrolling sideways.
ATLAS AN_PROFIAN 3000 PROFI AN 3500 PROFI
Working widthm33,5
Transport widthm33,5
Transport lengthm3,3 3,3
Transport heightm1,8 1,8
Number of discspcs24 28
Working depth of discs*cm6 - 166 - 16
Working angle of discs°front 18 / rear 15front 18 / rear 15
Disc diametermm620620
Disc thicknessmm6 6
Type of disc protectionindividual springindividual spring
Disc spacingcm2525
Distance between two rows of discscm110110
Frame clearancecm70 70
Power demand*HP150 - 240170 - 260
Frame typerigidrigid
Max. total weight**kg2 8003 350

*depends on soil conditions ** depends on the equipment
