FENIX FO – Universal Cultivator

  • Intense and precise stubble cultivation and deep loosening up to 35 cm.

  • Reinforced tractor traction thanks to the hydraulic cylinder with an accumulator on the tow bar.

  • Non-stop protection of each unit against overload.

  • A single last row of shares = increased work quality.

  • High frame clearance – 86 cm.

  • Long Life chisels (40mm/80mm).

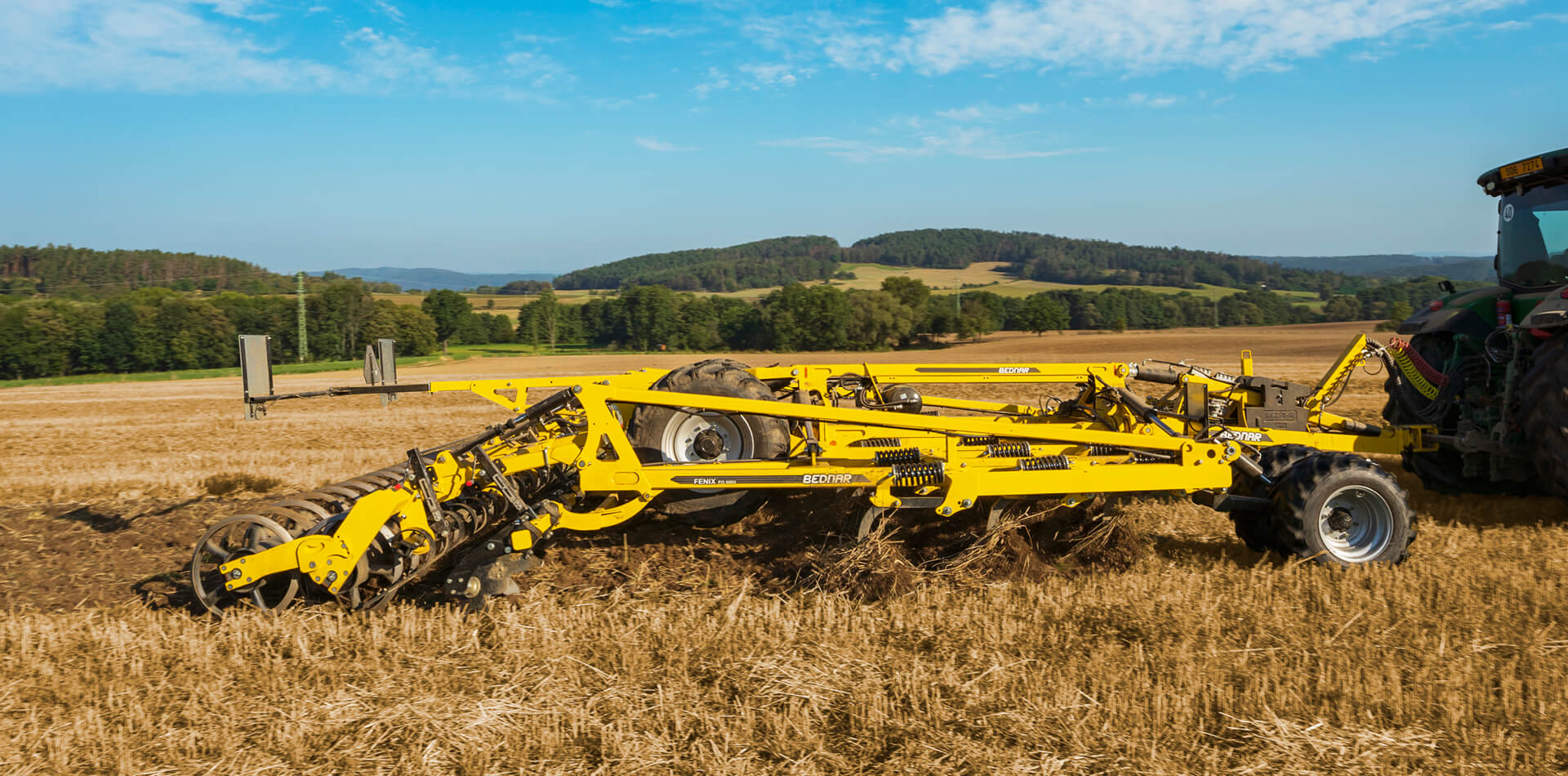

The FENIX FO is a 3row and 4row universal cultivator with an integrated axle that substantially reduces the turning radius at headlands. The last row of shares is arranged in a single line, which increases the quality of work of the FENIX machine by multiple times. The loosened material is spread uniformly in front of the rear compacting packer.

The constant geometry of each tine ensures easy soil penetration. The machine is equipped with reinforced tractor traction thanks to the hydraulic cylinder with an accumulator on the tow bar of the machine.The FENIX can  also be connected to tractors in a lower output class, while still achieving excellent work and mixing quality.

MASKINE TYPEsemi-mounted universal cultivator
HARVENS KOMPONENTER3 and 4 rows of shares, back fillers / levelling discs, packers
STENSIKRINGindividual horizontal non-stop protection
ANVENDELSEstubble cultivation from 5cm to loosening of up to 35 cm
FUNKTIONstubble field cultivation, mixing and loosening, reverse compaction
Ruedas frontales gemelas, ajuste hidráulico

Front double supporting, hydraulically-controlled wheels.

Sistema de protección non-stop con una fuerza de 450 Kg.

Horizontal non-stop protection with a release force of 450kg.

Incremento de tracción del tractor gracias al cilindro hidráulico de la lanza con acumulador de presión.

Reinforced tractor traction thanks to a hydraulic cylinder and accumulator on the tractor tow bar.

FENIXFO 5003FO 6003
WORKING WIDTHm5,275,89
TRANSPORT WIDTHm33
TRANSPORT LENGTHm9,039,03
WORKING DEPTH*cm5-355-35
NUMBER OF TINESpcs1719
SPACING OF TINEScm310310
RECOMMENDED OUTPUT*HP300 – 350450 – 550
TOTAL WEIGHT**kg59006300+

*afhænger af jordtype og terræn **afhængig af maskinens udstyr

EN

PAKKERE

V-ring pěch

V-RING PAKKER

• vægt: 176 kg / m (incl. afskrabere)
• diameter: 630 mm

Pneumatikový pěch

STEELRING PAKKER

• vægt: 177 kg / m (incl. afskrabere)
• diameter: 525 mm

DVOJITÝ U-RING PĚCH

DOBBELT U-RING VALSE

• vægt 230 kg / m
• diameter: 600 mm

BASIS

Horizontální NON-STOP systém [Fenix FN_L]

HORIZONTAL NON-STOP SYSTEM

Podpěrná kola

FRONT BÆREHJUL

FJEDERJÆVNERE

TRÆK

3-punkts liftophæng

3-PUNKTS LIFTOPHÆNG

TAŽNÉ PRAVÍTKO

BÆREARM

TOWING EYE

TRÆKØJE

• 35 mm 40 mm • 51 mm • K80

TILVALG

Spids med TWIST effekt - LONG LIFE

SPIDS MED TWIST EFFEKT – LONG LIFE

• 40 mm LONG LIFE (karbid)
• 80 mm LONG LIFE (karbid)

SPIDS

• 80 mm
• 60 mm

PŘÍDAVNÉ ZÁVAŽÍ

TILLÆGSVÆGT

• 200 kg
• 400 kg

Vingeskær

VINGESKÆR

• 125 mm
• 185 mm
• 185 mm LONG LIFE (karbid)

Tand efterharve

TAND EFTERHARVE
