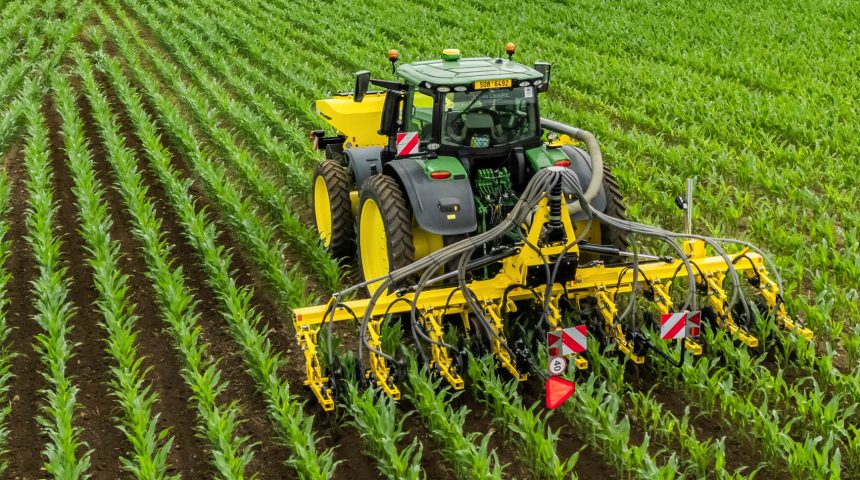

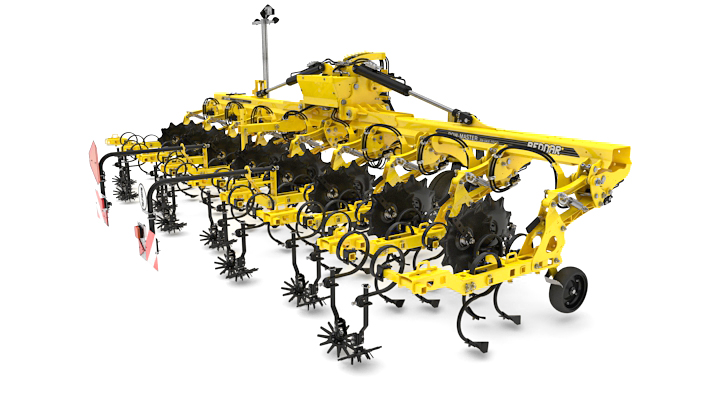

The ROW-MASTER RN_PROFI cultivator represents a new generation of the popular BEDNAR row crop cultivators. It now offers the function of ROW-UNIT CONTROL that provides independent control of each row unit. Thanks to the high frame clearance increased to 35.5″, the variability of the equipment of row units and the professional CultiCam/Tillett & Hague guidance system, the ROW-MASTER RN_PROFI brings new equipment options.
0.5"-4" in
15' 9" -31' 6" ft
100-250 hp

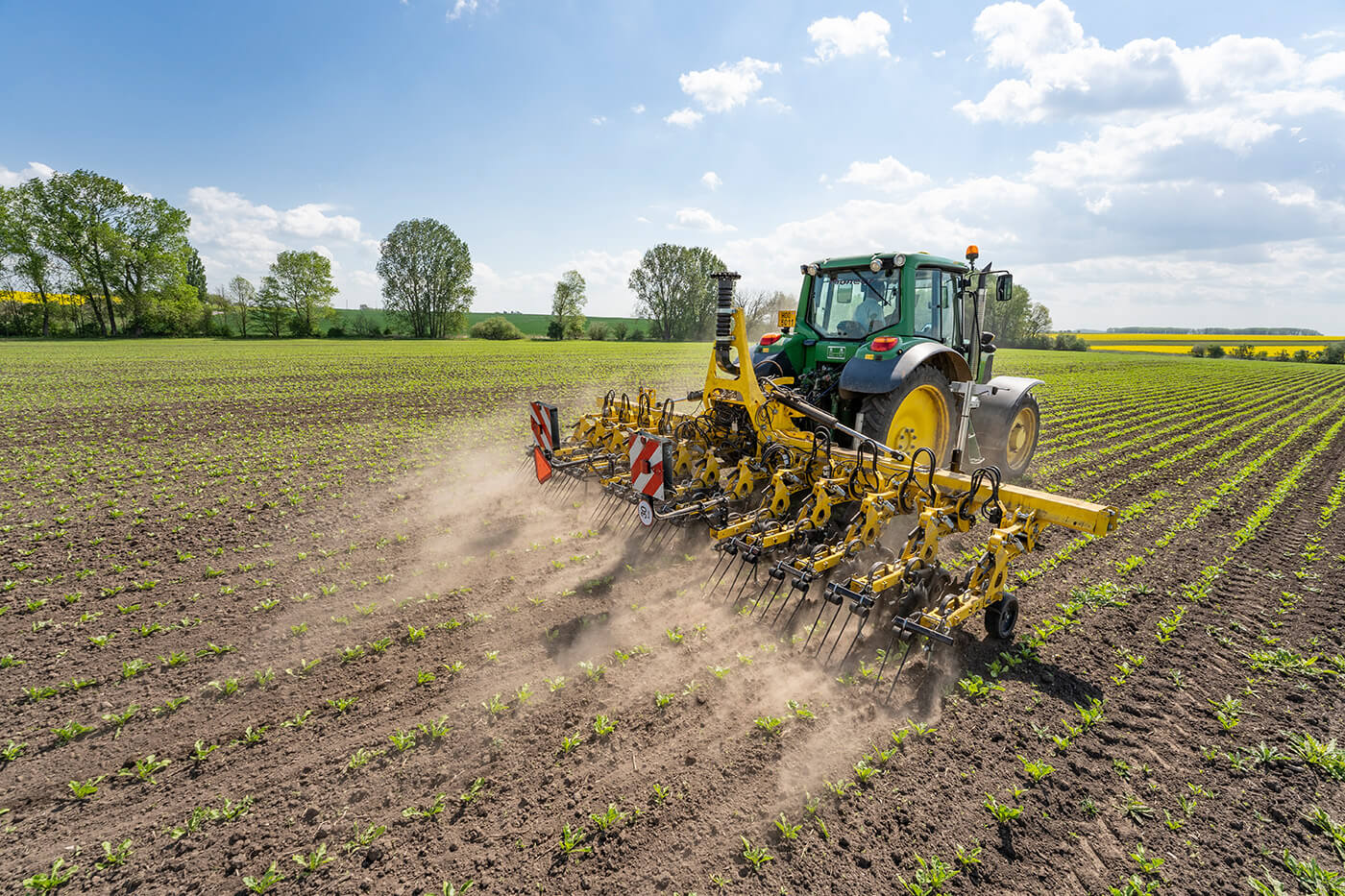

A professional row crop cultivator for the elimination of the soil crust, disruption of the growth of weeds and establishment of an insulation layer in the mid rows of row crops.

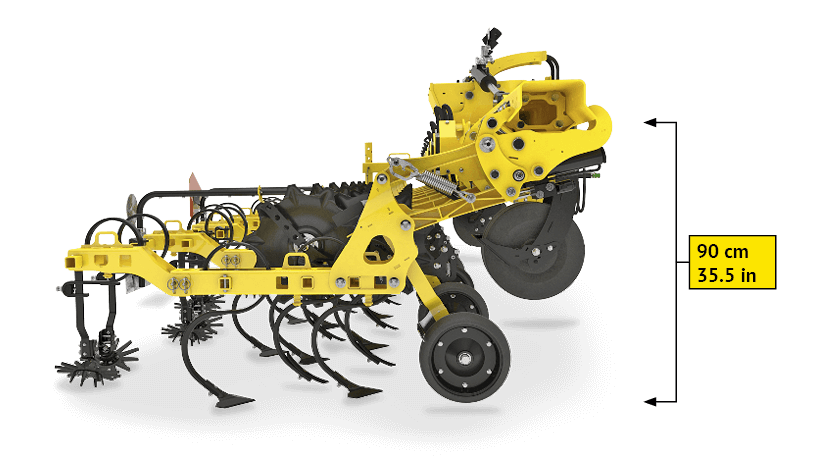

When compared with standard ROW-MASTER RN models with a underframe clearance of 32″, the new generation of ROW-MASTER RN_PROFI offers an unparalleled underframe clearance at 35.5″. It allows the implement to weed row crops, such as sunflower or corn, even at the high growth stage without any problems.

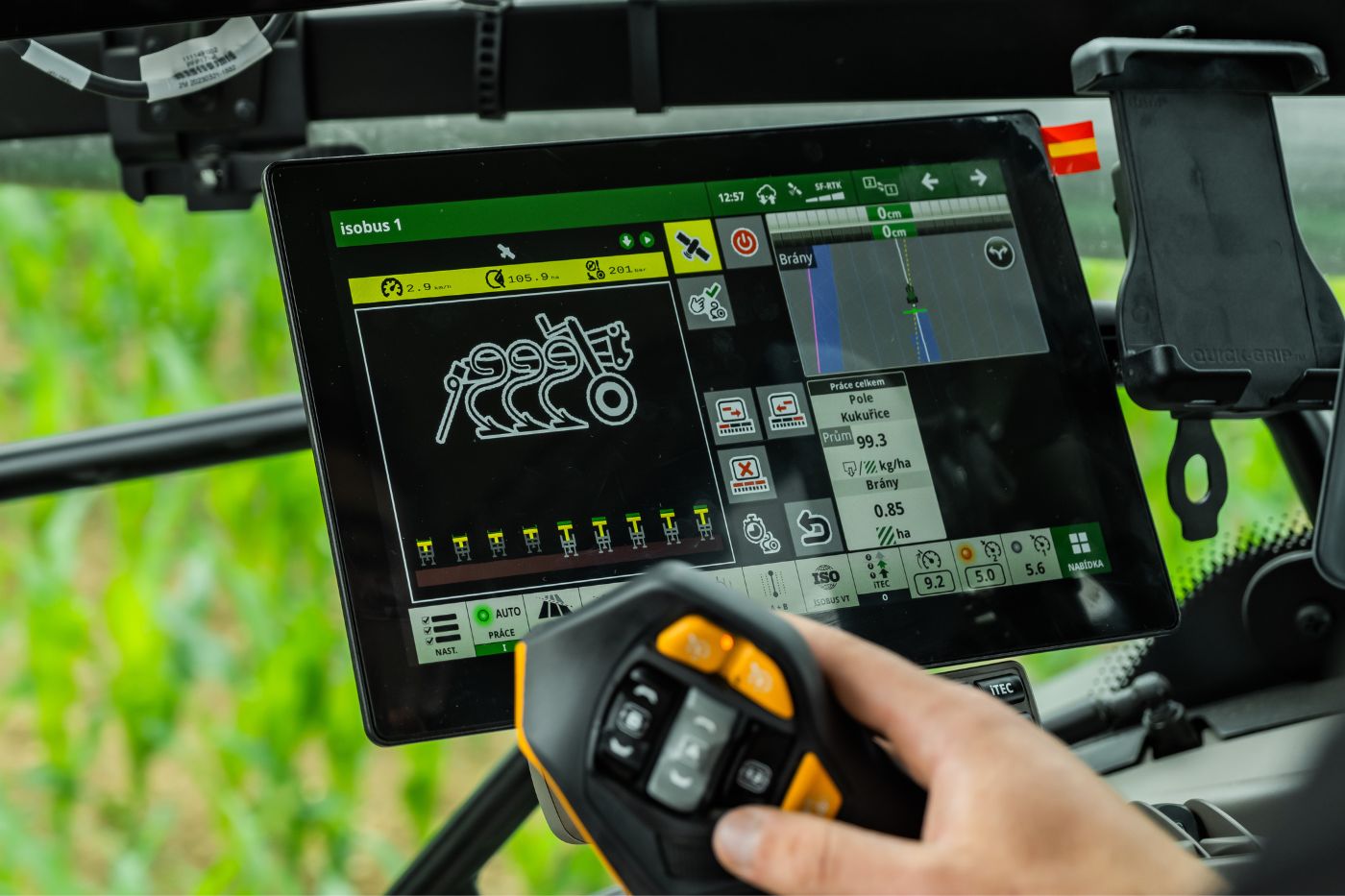

The ROW-MASTER RN_PROFI cultivator is equipped with section control for each row unit. Based on the data from the navigation system, the individual row units are gradually lifted and lowered.
Main advantages:
Minimization of overlapping and crop damage at headland and along the field border
Lower demands on the operator and elimination of errors
Higher productivity under various conditions (day and night, fog)
Height of the lift of the individual row units: 18″

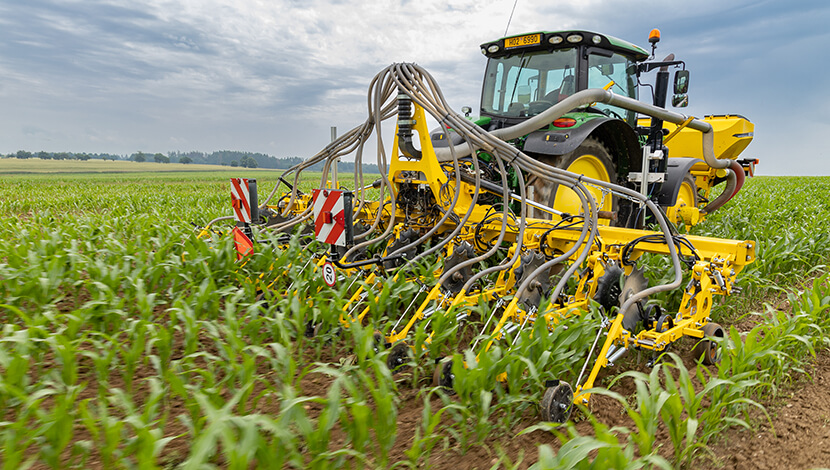

The ROW-MASTER RN_PROFI cultivator can be equipped with seeding openers on request for cover crop seeding in the mid rows of the main crop. The cover crop provides the best protection against erosion. Moreover, it increases the stability of the harvesting equipment in case of increased humidity.

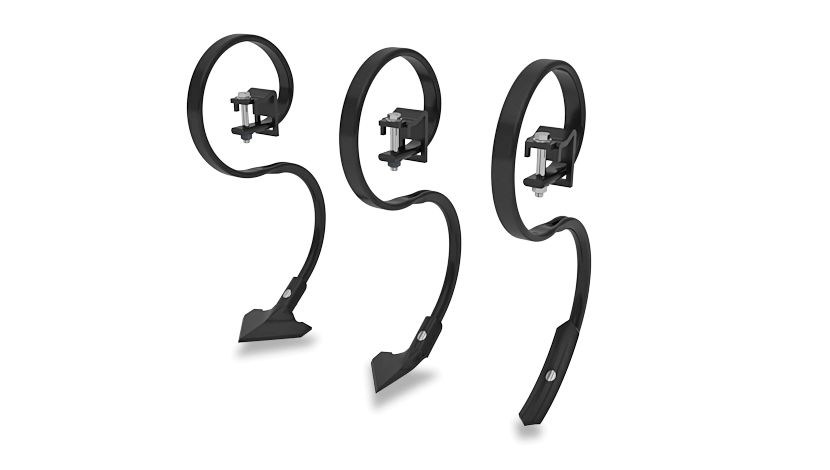

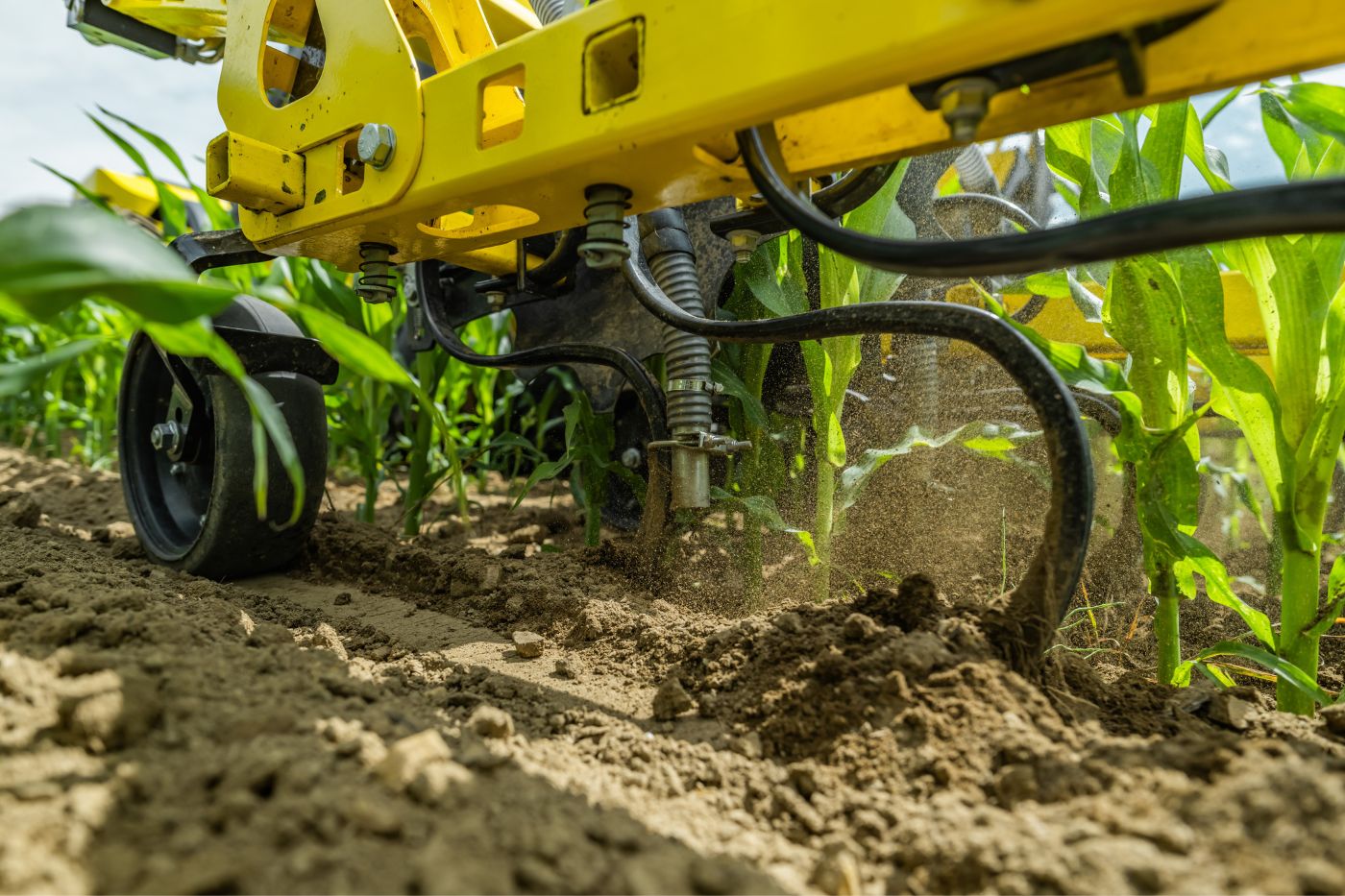

The new ROW-MASTER RN_PROFI model offers even more options for row units. You can choose from sweeps with a width of 6″/5″, chisels with a width of 1.6″ or special angle knifes that offer excellent aeration right next to the rows of crop without damaging it. The special rubber finger equipment allows weeding in the crop rows.

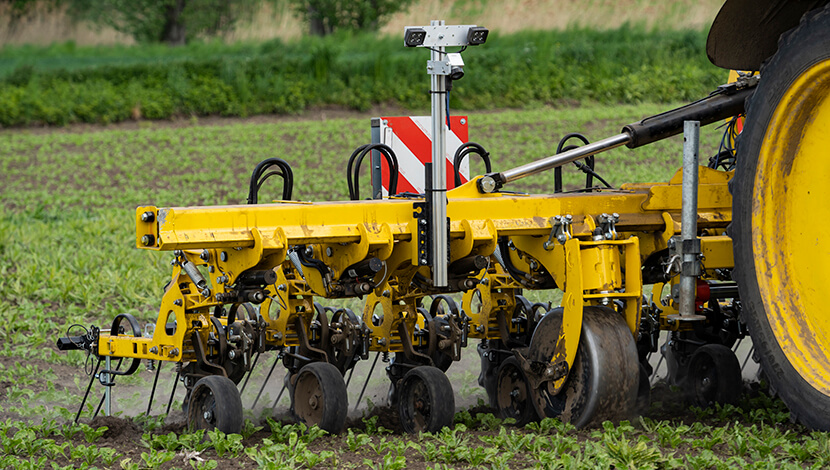

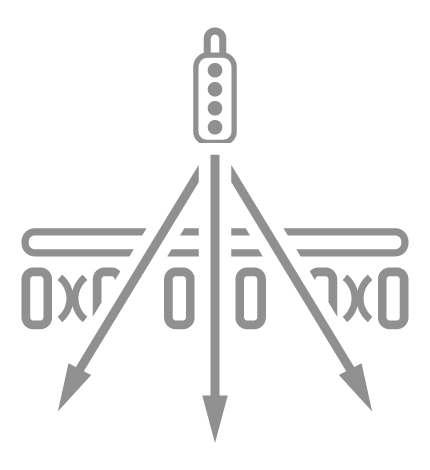

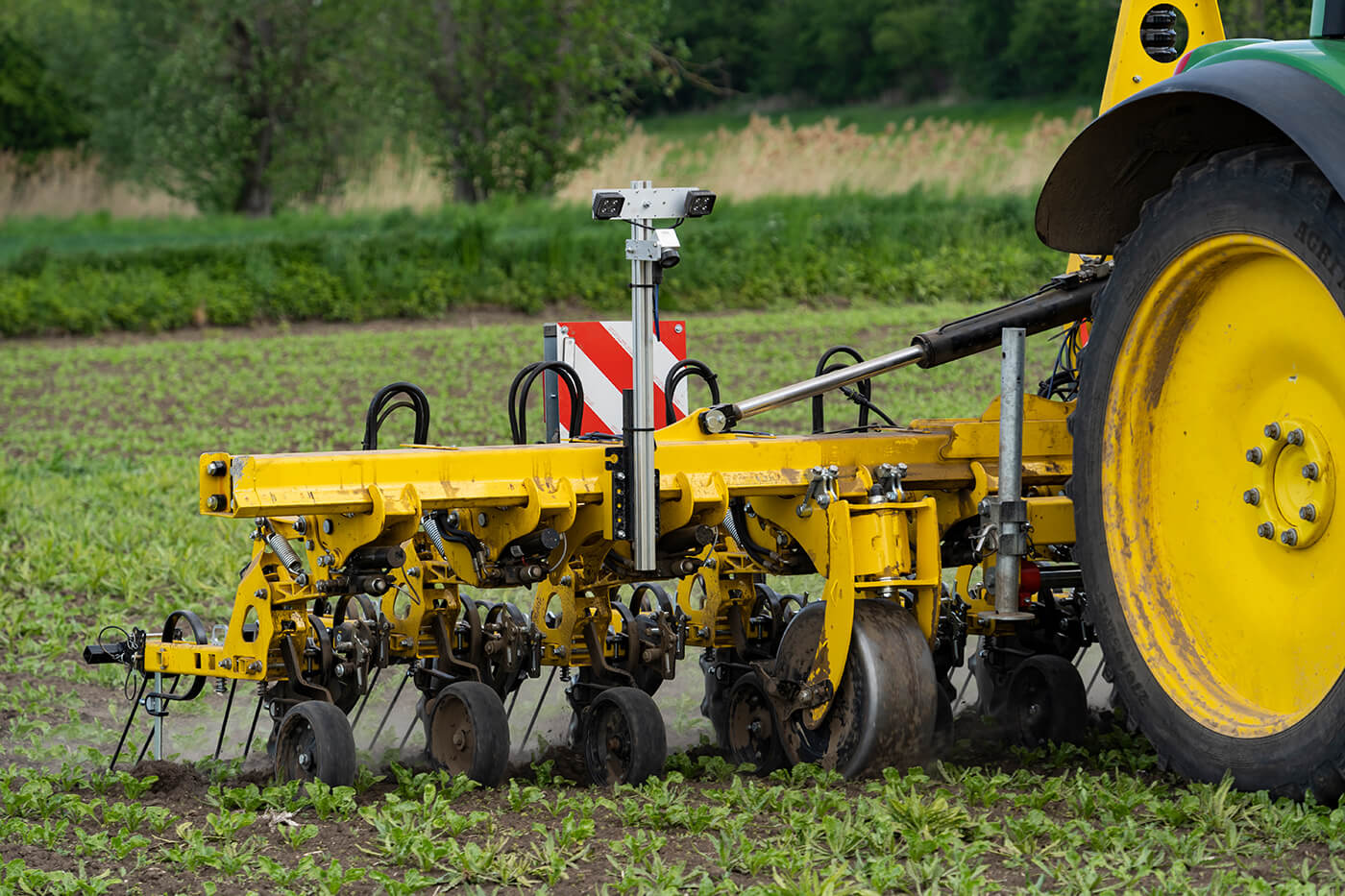

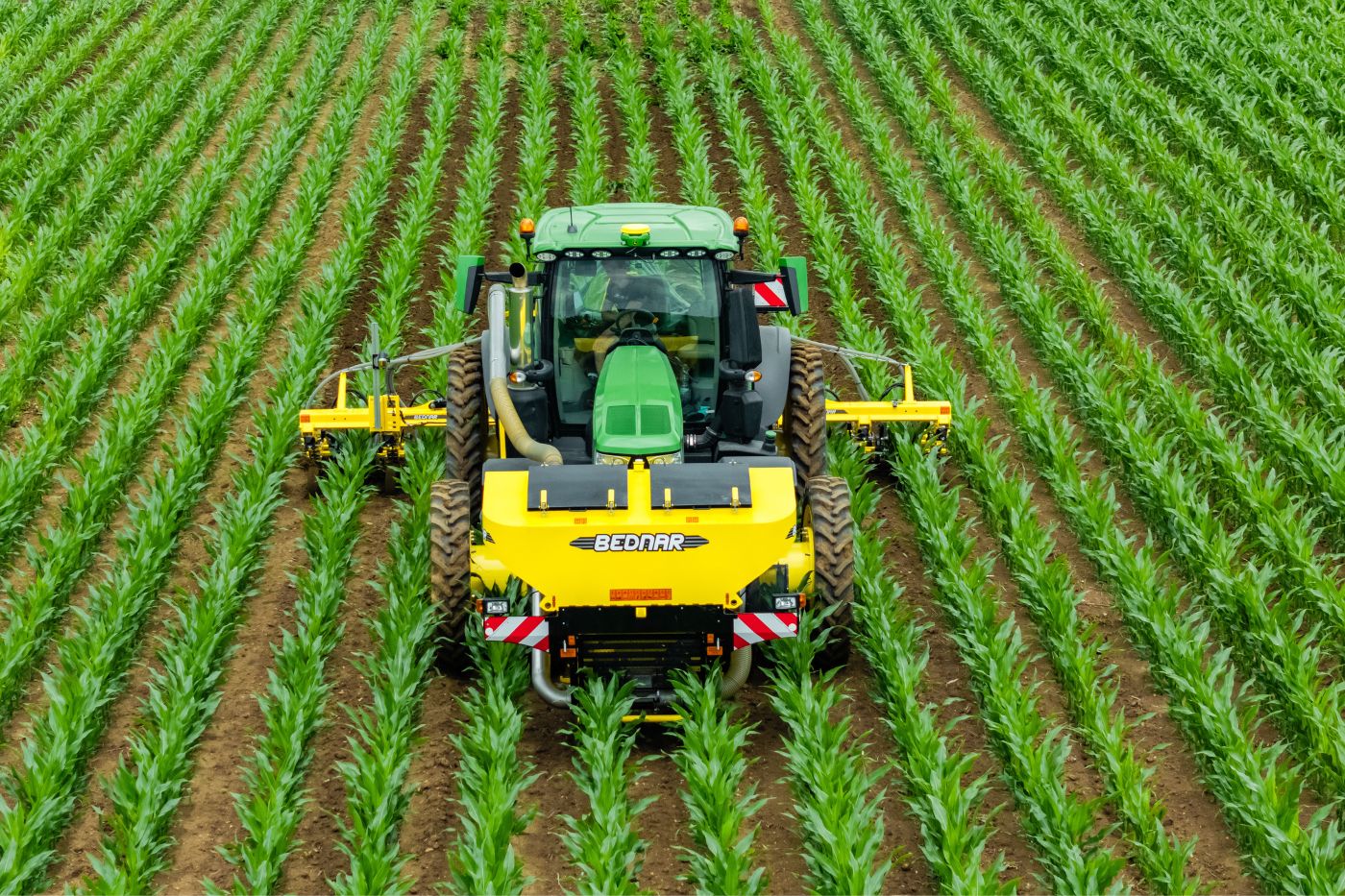

CultiCam/Tillett & Hague reads the individual rows and assesses the vegetation, then transmits the information to the electronic system, which communicates with the hydraulic control of the cultivator. The control guides the cultivator so that the working units work in the mid rows, right next to the crop.

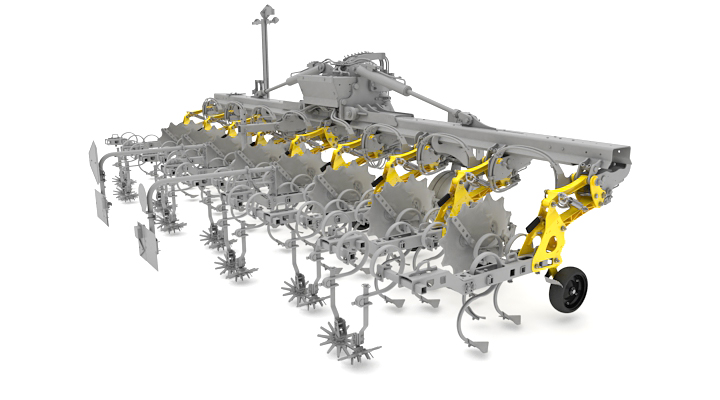

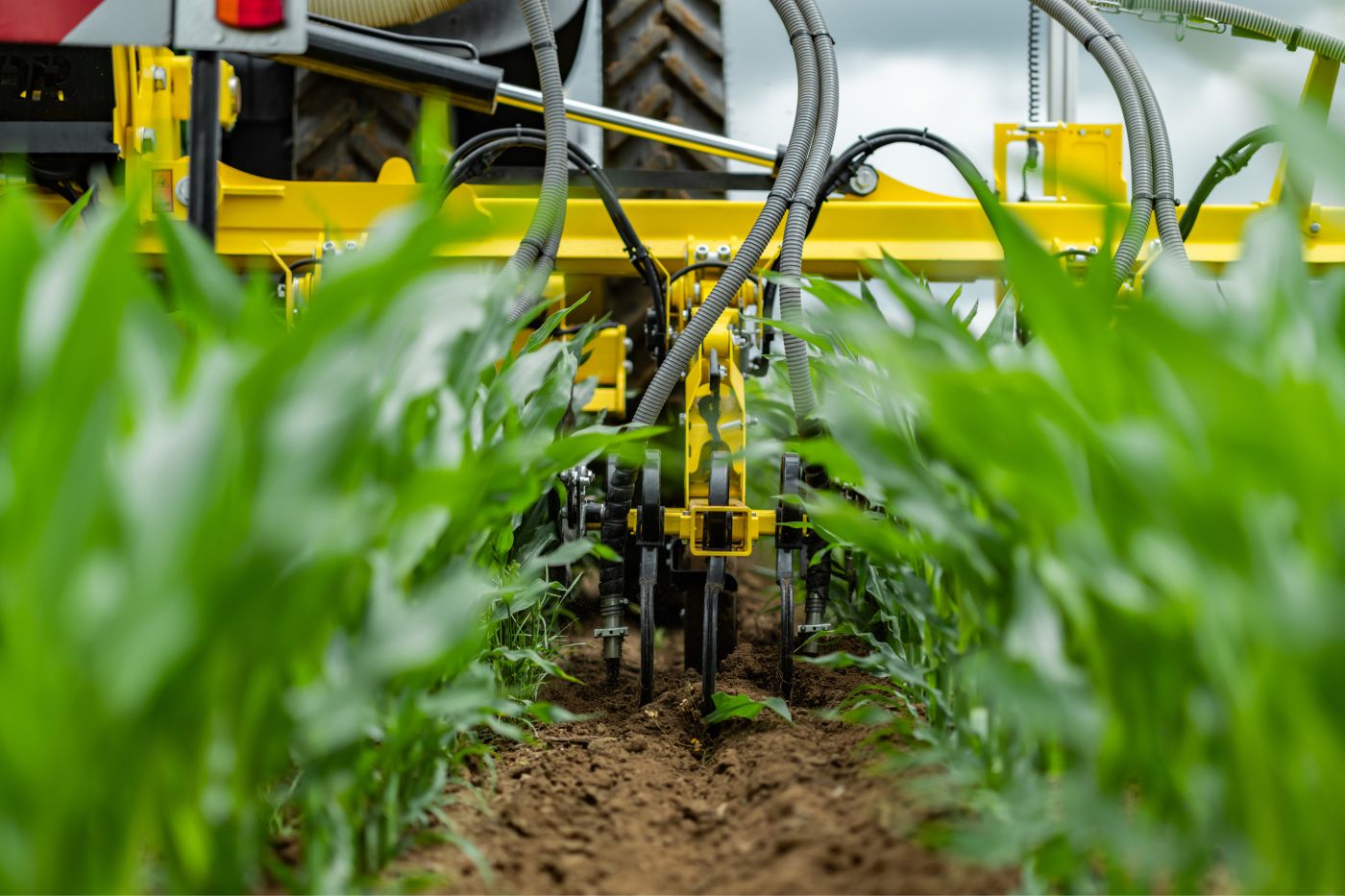

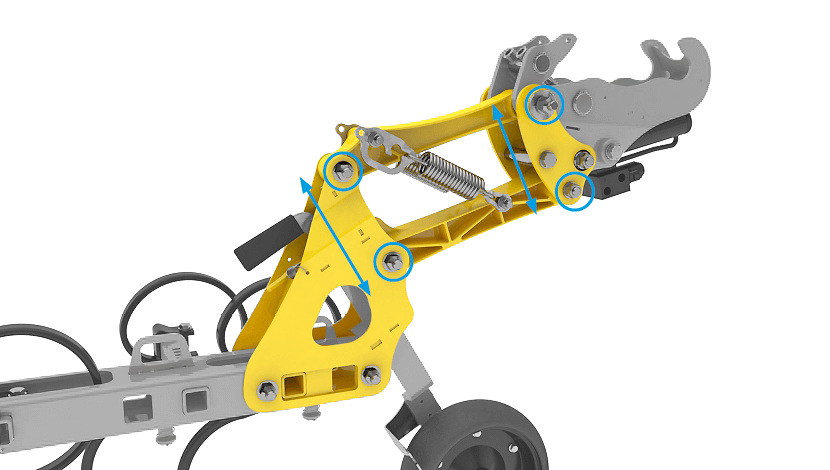

Each row unit is mounted to the frame with a clip. The row unit includes a parallel likage. The parallel linage contours the terrain and maintains the set working depth of the row units in a precise way. The parallelogram completely eliminates movements caused by unevenness.

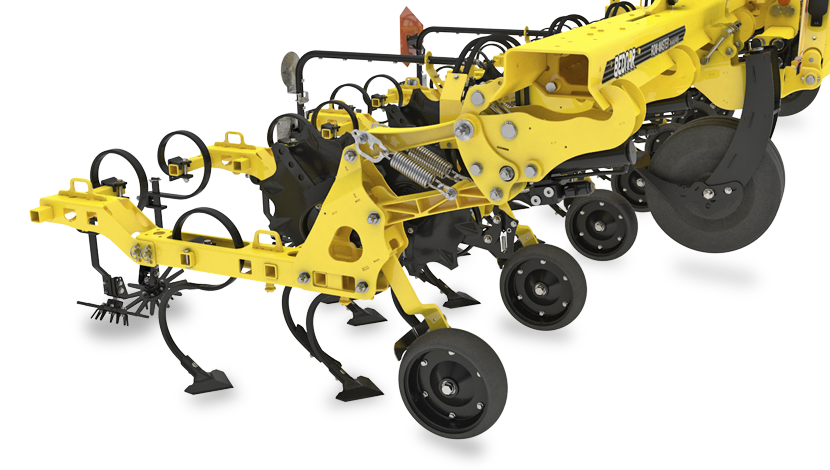

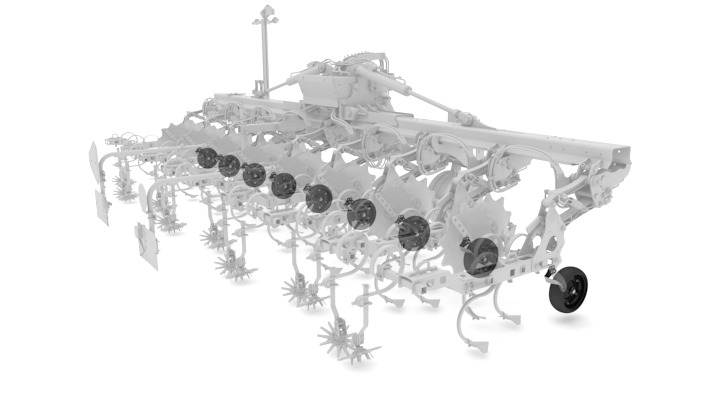

The ROW-MASTER RN_PROFI cultivator has steel gauge wheels. Each row unit has its own gauge wheel that helps maintain the set working depth and contour the terrain.

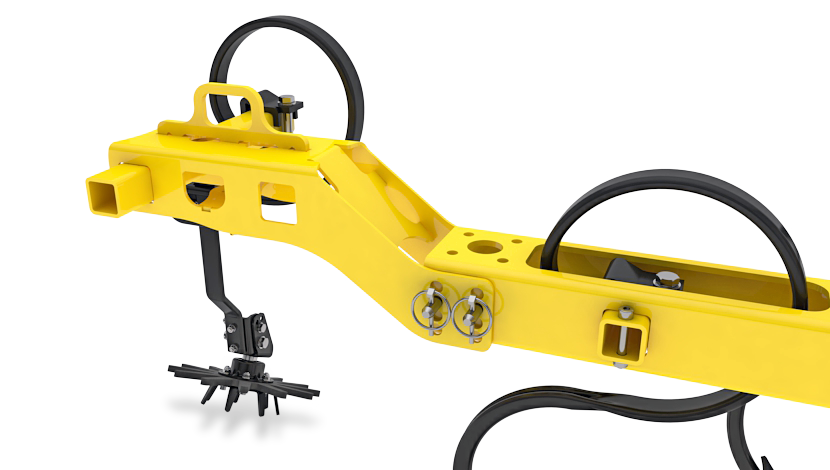

The row spacing is set by simply moving the individual row units on the frame. The chisels, levellers, sweeps, gauge wheels, side shields can be easily set using axle pins and levers without the need for any special tools.

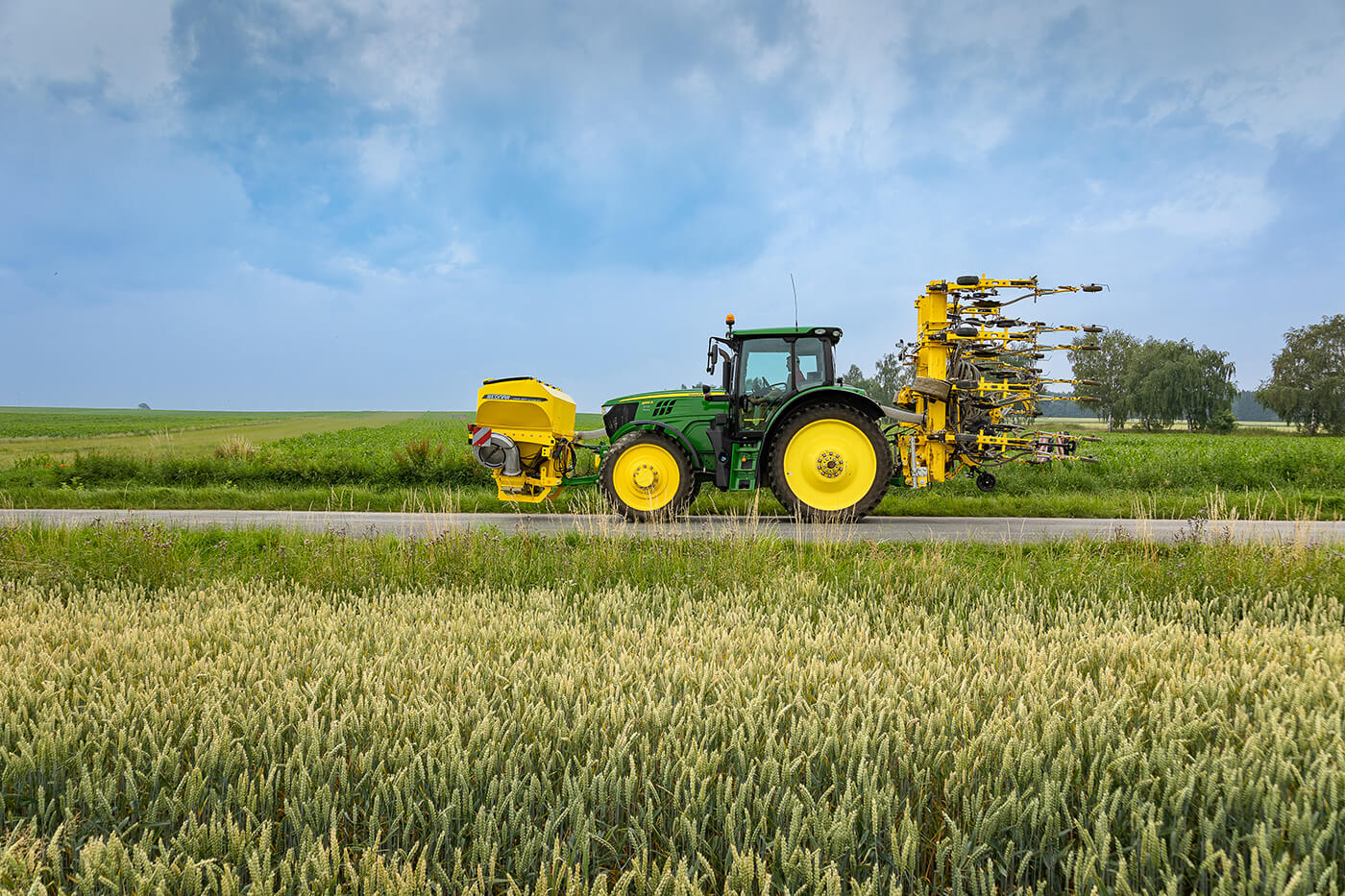

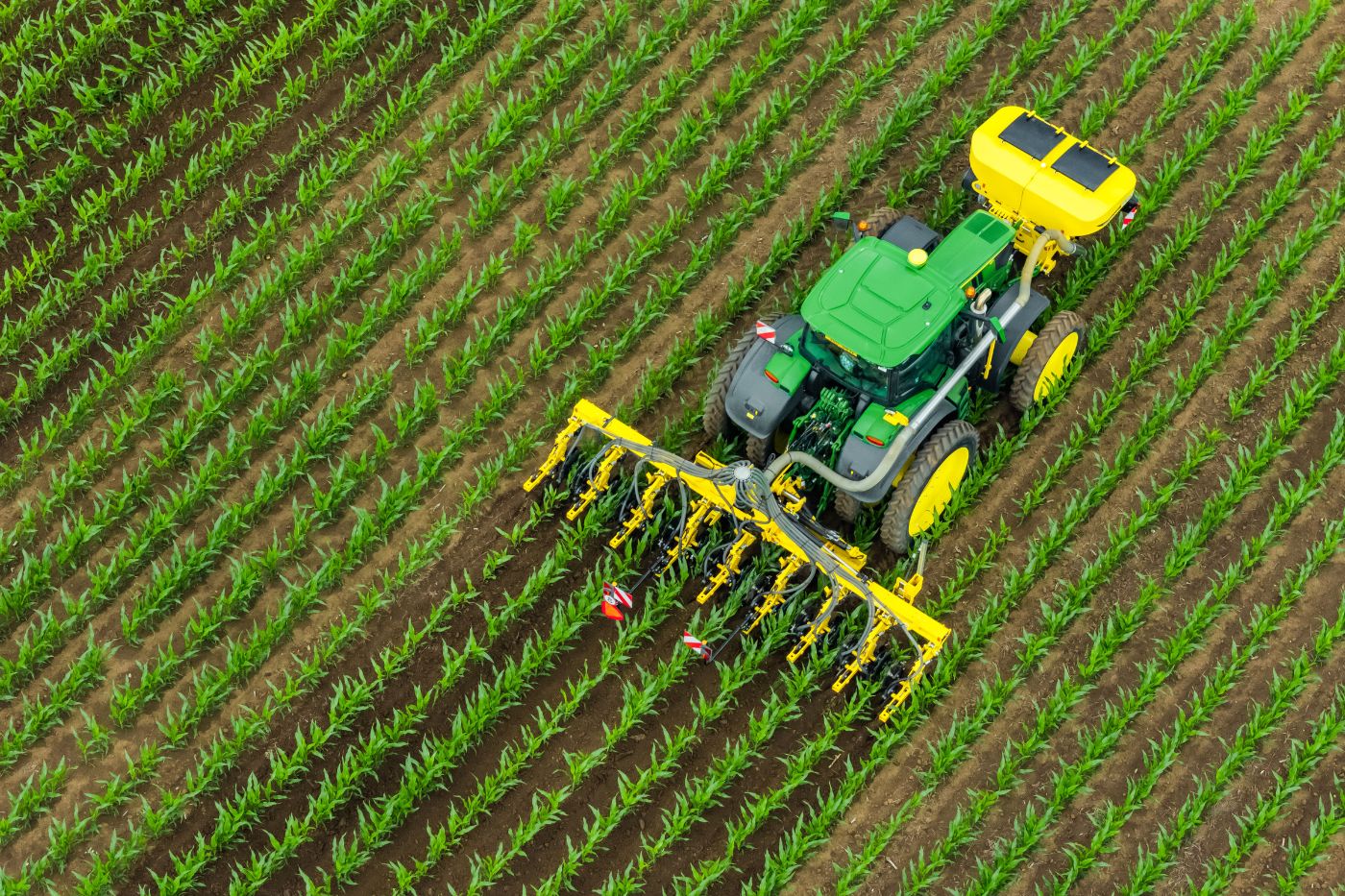

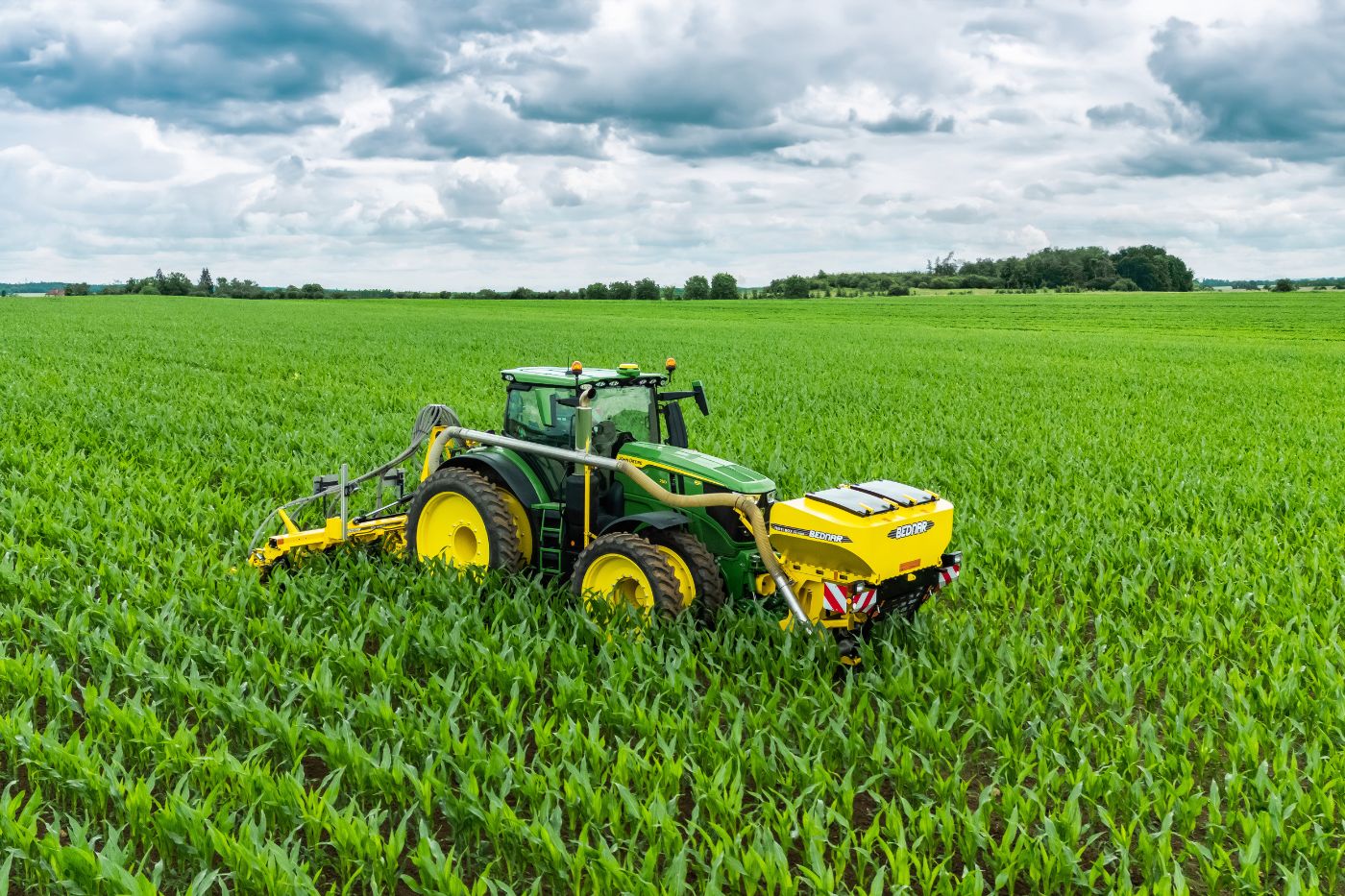

To place granular fertilzer, the row crop cultivator can be equipped with an ALFA DRILL seeder, mounted on the frame of the cultivator. High outputs can be achieved in combination with the front FERTI-BOX FB_F tank that enables placement of two types of fertilizer, or with the FERTI-CART FC 100 trailed cart.
Do not hesitate to contact us or find the dealer for your area.
Contact us Find a dealerA concise summary of the main working tools of the versatile row crop cultivator.

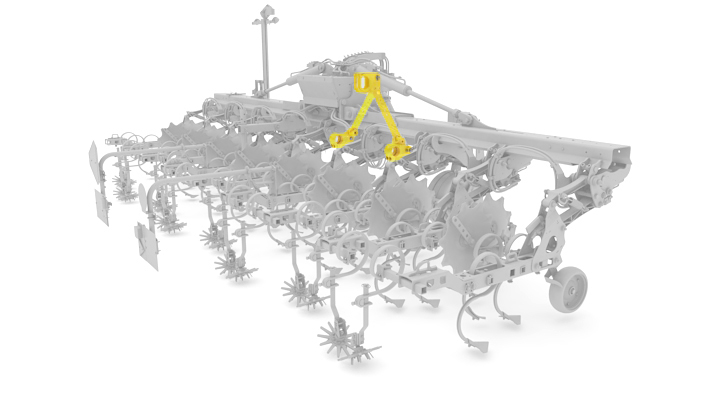

Easy connection to the three-point hitch of the tractor. Category III hitch.
Maintain the set working depth and perfectly contour the terrain.

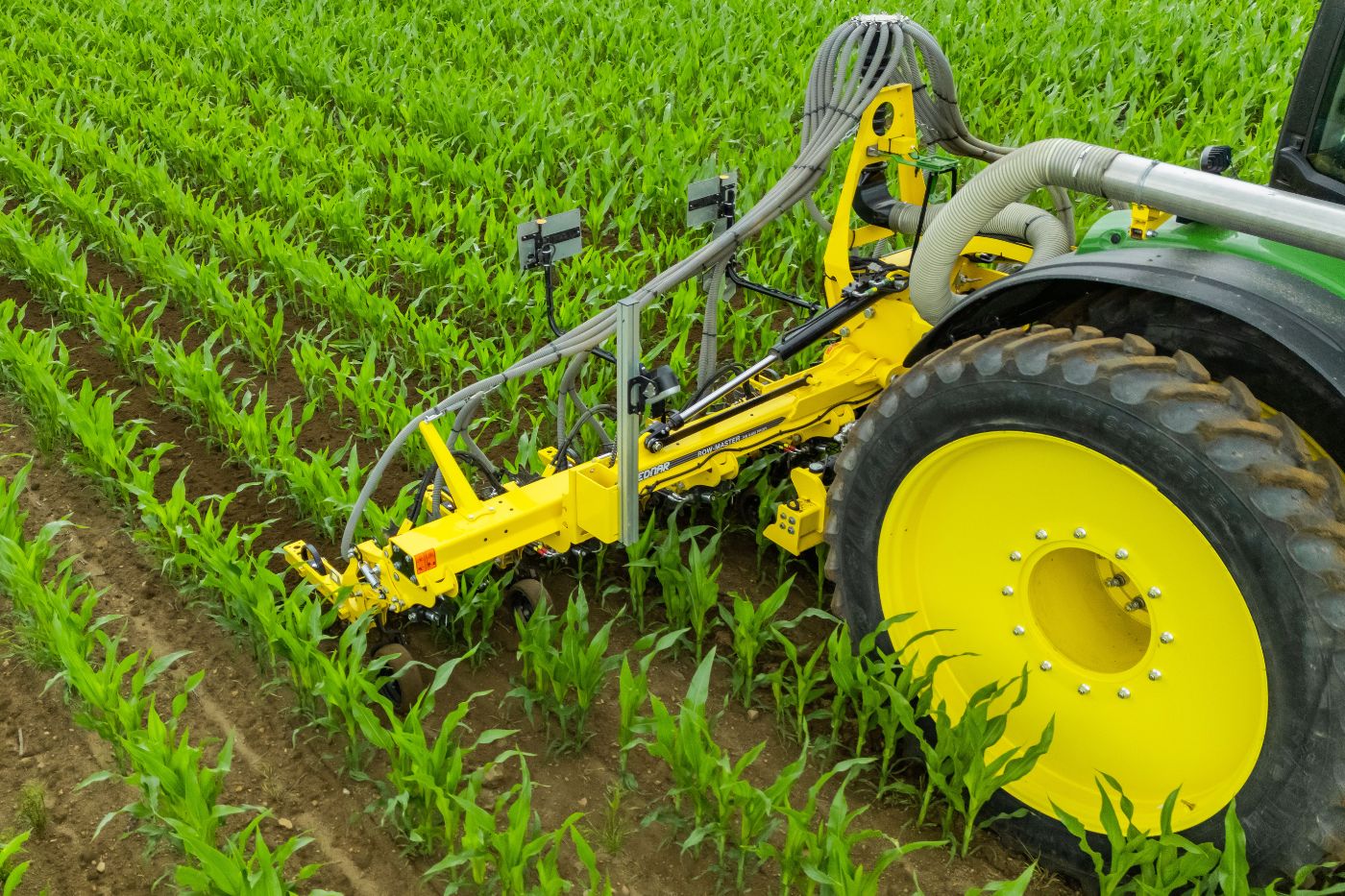

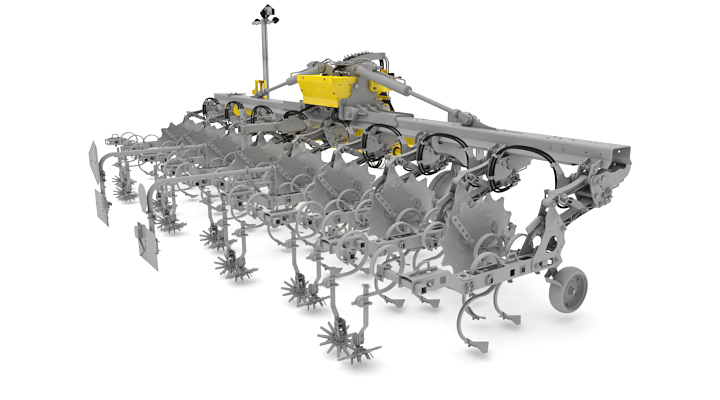

The hydraulic piston automatically ensures side shifting based on data received from the CultiCam guidance system.

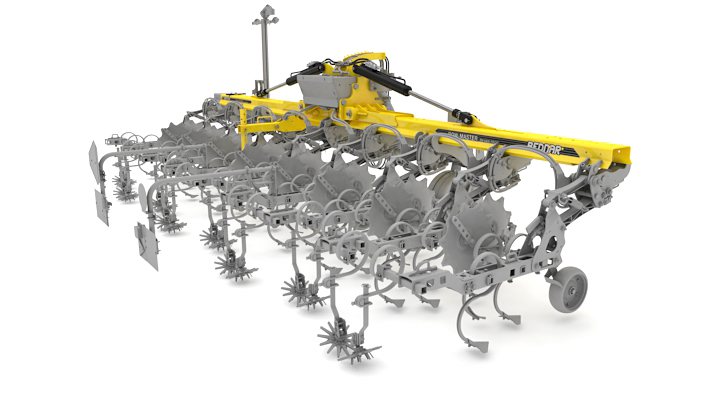

An extremely robust frame with clearance of 35.5″ for weeding corn or sunflower crops.
Each row unit is mounted to the frame with a clip. The row unit includes a parallel linkage. It ensures the set working depth is maintained.
The ROW-MASTER RN_PROFI cultivator is equipped with section control for each row unit. Based on the data from the navigation system, the individual row units are gradually lifted and lowered.

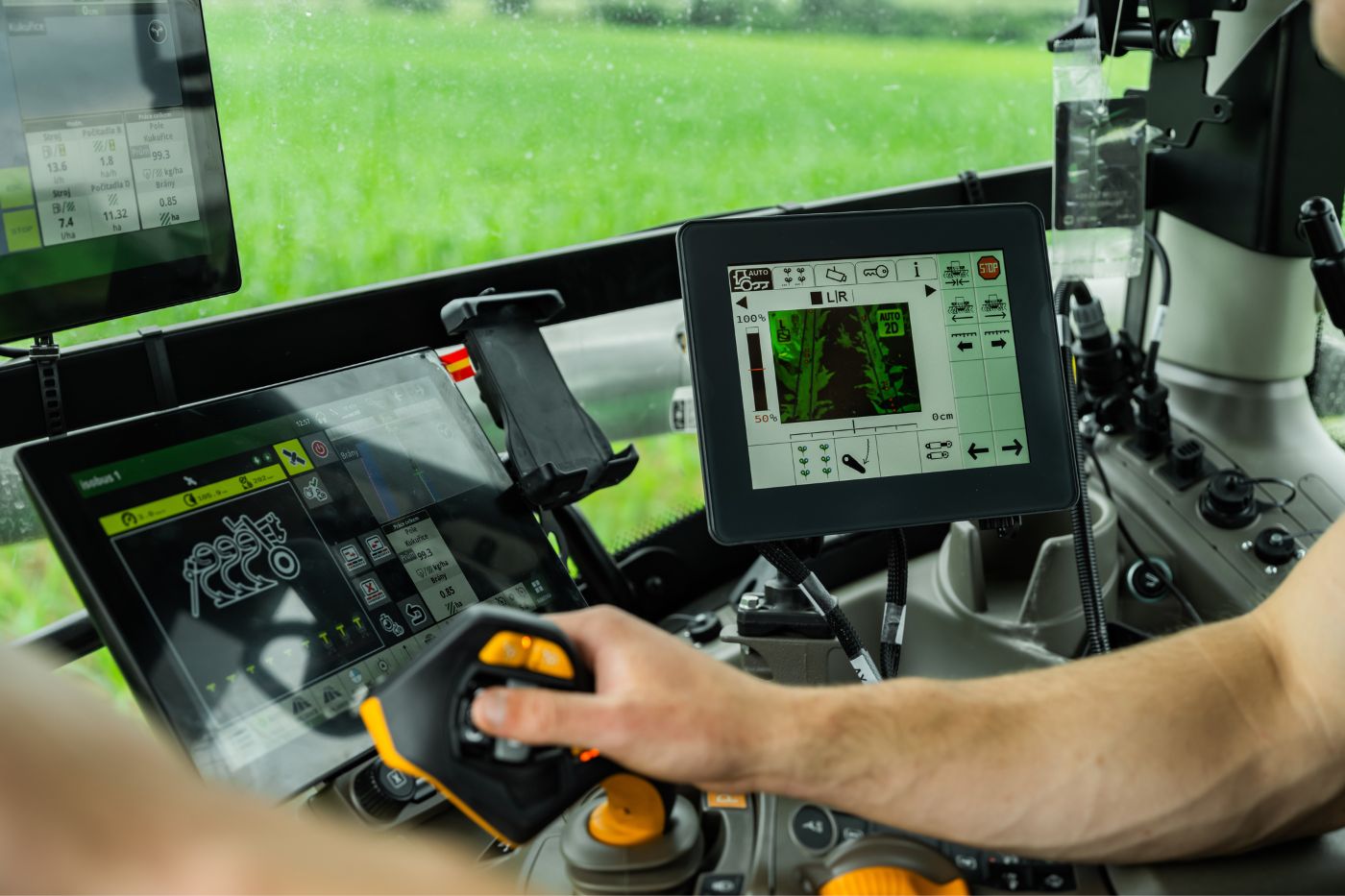

The system automatically guides the row crop cultivator by reading the rows. The system then communicates with the hydraulic control (movement) that guides the cultivator working units in the mid rows.
We know that everyone has different requirements for the optional implement equipment and its expected use. Therefore, you can specify your own versatile ROW-MASTER RN_PROFI cultivator to precisely match your needs.

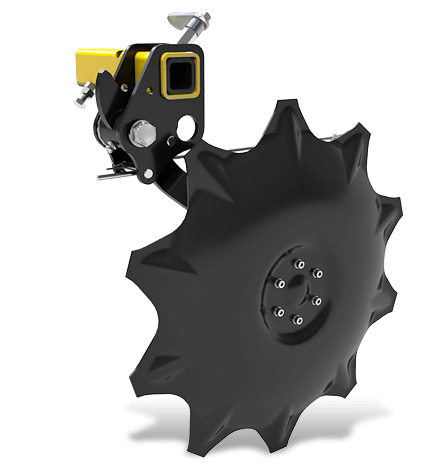

The specially shaped protective discs of the working units define the cultivation width – they protect leaves and roots. The discs also prevent covering crop rows with soil and weed seeds.

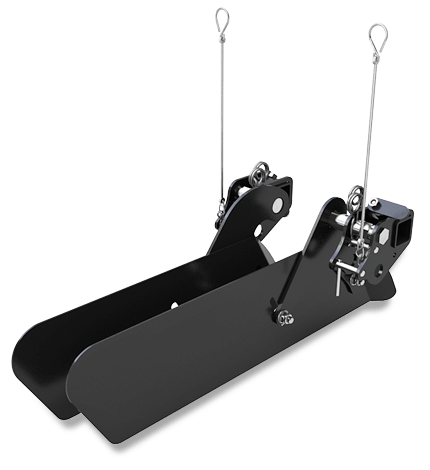

The shields define the cultivation width and protect leaves and roots. They prevent covering crop rows with soil and weed seeds.
ROW CROP CULTIVATION
Weeding improves the physical properties of soil nutrient intake by plants, and the condition of vegetation. Row crop cultivation has a weeding effect, which reduces the consumption of herbicides. Row crop cultivation also has a soil-protecting effect. The loosened soil layer in the mid row prevents fast drainage of surface water, and reduces the risk of water and air erosion. Liquid or solid fertilizers can be applied whilst weeding, thus improving the overall condition of the crop.
| ROW-MASTER RN_PROFI | RN 15' PROFI | RN 21' PROFI | RN 31' PROFI | |
|---|---|---|---|---|
| Working width | ft | 15' 9" | 21' | 31' 6" |
| Transport width | ft | 9' 10" | 9' 10" | 9' 10" |
| Transport length | ft | 8' 2" | 8' 2" | 14' 1" |
| Transport height | ft | 9' 2" | 11' 10" | 11' 10" |
| Number of rows | pcs | 8 / 7 / 6 | 12 / 9 / 8 | 18 / 11 / 12 |
| Row spacing | in | 17.7" (19.6") / 24" / 29.5" (27.5" / 32") | 17.7" (19.6") / 24" / 29.5" (27.5" / 32") | 17.7" (19.6") / 24" / 29.5" (27.5" / 32") |
| Working depth* | in | 0.5" - 4" | 0.5" - 4" | 0.5" - 4" |
| Underframe clearance | in | 35.5" | 35.5" | 35.5" |
| Camera guidance | yes | yes | yes | |
| Horsepower requirement* | hp | 100 - 140 | 120 - 160 | 170 - 250 |
| Frame type | folding | folding | folding | |
| Max. total weight** | lb | 5,070 | 7,112 | 8,516 |
* depends on soil conditions ** according to the machine equipment
