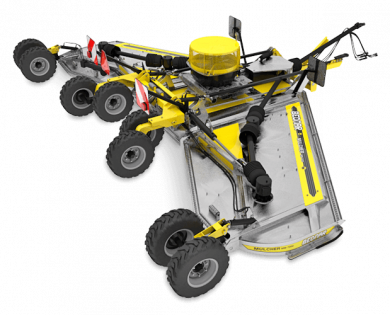

MULCHER MM Rotary Cutter

Home Crop residue management Rotary Cutters MULCHER MM Rotary Cutter

A ROTARY CUTTER DESIGNED FOR ENORMOUS DAILY OUTPUTS

The MULCHER MM heavy duty rotary cutter is equipped with five rotors. The cutting width of 21′ 8″ predetermines this implement for high daily outputs. The layout of the individual cutting components guarantees a high level of crushing in combination with outstanding resistance and a robust design. The MULCHER MM is suitable for cutting both permanent grassland and crop residue after harvesting cereals or canola crop.

21' 8" ft

200-230 hp

Key properties

A rotary cutter with a robust design and a cutting width of 21′ 8″ designed for large farms, contractors, or for maintenance of large areas.

CUTTING

An essential operation in crop residue management.

Cutting permanent grassland, pastures and meadows
Cutting canola, cereal and corn stubble field

Cutting vegetation contributes to a balanced growth of above ground matter, processing ungrazed grass (bad quality fodder not grazed by the cattle), it promotes grass offsetting, and also prevents the development of weeds.

In this case, the rotary cutter chops, shortens and evenly distributes the cutted material, which is then better incorporated into the soil and also decomposes faster. Cutting is also important for mechanical prevention of diseases and elimination of pests, such as the European corn borer.

ROBUSTNESS AND QUALITY OF WORK

Ensures high durability and safety at work.

MULCHER MM folding rotary cutters are highly durable and designed for hard work. Hot-dipped galvanisation of the implement provides high resistance to vegetation sap, collision with rocks or weather conditions.

TWO PAIRS OF BLADES

Perfect material cutting and disrupting in one pass.

Quality cutting requires a large rotor diameter and high circumferential speed. The MULCHER MM rotary cutter is equipped with two pairs of shaped blades on the rotor to ensure excellent quality of work. The blades can be used both for cutting grasses and processing crop residue.

HIGH-QUALITY P.T.O. SHAFT

By Walterscheid.

When manufacturing BEDNAR rotary cutters, we use high-quality p.t.o. shafts by Walterscheid.

CENTRAL WALKING AXLE

For better terrain contouring

When compared with the standard model, MULCHER MZ can be equipped with a walking version of the central axle. The implement is then able to better contour any terrain unevenness and maintain the set cutting width. You can achieve an even better effect in combination with the tandem version of the side axles.

FRICTION CLUTCH

An effective protection of the gearbox.

The transmission part of the MULCHER MM rotary cutter is protected against damage (for example, in the case of a collision with a rock, etc.) with a friction clutch that automatically stops all the transmission processes. The p.t.o. shaft connecting the tractor with the gearbox is equipped with a friction clutch.

SMOOTH SURFACE

Prevents dirt from sticking to the implement.

MULCHER MM can be equipped with cover plates of the main frames. The plates are smooth and minimize the sticking of plant residue on the machine.

TRASH-FAN

Rotary cutter cleaning equipment.

The main component is the fan that creates a stream of air and the wind straighteners direct air to the risk areas on the implement surface. The equipment prevents dirt and plant matter from sticking on the implement surface. It improves work safety and reduces time spent with cleaning.

EQUIPMENT FOR MAXIMUM WORK QUALITY

Front fixed blades, spreading deflector or armouring.

FRONT FIXED KNIVES změnit na FRONT FIXED BLADES
SPREADING DEFLECTORS
ARMOURING

Fixed blades that provide the final cutting of the cutted material are installed in the front part of the cutting area to increase the crushing effect. That easily increases the quality of material cutting.

The spreading deflectors ensure that the rotary cutter works perfectly as they evenly spread the cutted material. They prevent the formation of plant clumps and larger amounts of matter in one place.

The MULCHER MM rotary cutter is equipped with replaceable armoured plates that protect the implement frame from damage. Moreover, each rotor is protected with its own cover which enables work in an extremely low position above the ground.

ARE YOU INTERESTED IN THIS IMPLEMENT? DO YOU HAVE A QUESTION?

Do not hesitate to contact us or find the dealer for your area.

Machine description

A concise summary of the main working tools of the rotary cutter

MULCHER MM Rotary Cutter

Take a look at your future machine.

Drawbar

The rotary cutter is easily connected to the bottom or top tractor hitch. It can also be connected using the K80 ball pin.

Blades

Two pairs of shaped blades provide an excellent cutting and chopping effect. There are two blade models available – grass and corn.

Axle

The central walking axle provides excellent terrain contouring, and even better contouring when compared with the standard model.

Frame covers

Smooth plates minimize the accumulation of plant residues on the rotary mower and facilitate cleaning.

SKID Plates

The skid plates and shoes maintain the set cutting height.

Hot-dipped galvanized frames

They provide an outstanding resistance to aggressive vegetation sap or mechanical damage (e.g., collision with a rock).

Trash-Fan for implement cleaning

It prevents dirt and plant matter from sticking on the implement surface and increases work safety.

WHAT DO THE FARMERS HAVE TO SAY?

“I’ve been using BEDNAR rotary cutters since I started doing farming in this area. The first model I owned was a MULCHER MZ 15′, then a MZ 20′ and the latest addition is the largest MM 23′ model. I like the robust configuration, the quality equipment that includes the front counter blades, armouring or the special rubber wheel filling against puncture. I use the cutter mostly for cutting permanent grassland; I process about 4940 acres every year.”

Adam Kysel, Contractor
Lomnice (Czech Republic)

Accessories

We know that everyone has different requirements for the optional implement equipment and its expected use. Therefore, you can specify your MULCHER MM rotary cutter to precisely match your needs.

CONFIGURE YOUR OWN
MULCHER MM Rotary Cutter

You are one step closer to your new implement.
You can try all the implements in our configurator,
or read about it in the brochure.

Configure Brochure

AGRONOMICAL GUIDE

CROP RESIDUE MANAGEMENT
Processing crop residue after harvest is important for several reasons. Crop residue is a source of organic matter therefore it is not desirable to simply leave it in the field without attention. Crop residue may be unevenly spread which aggravates tillage and the clumps facilitate the spread of diseases and breeding of pests.

How to work with crop residue?

The table can be navigated by scrolling sideways.

MULCHER MM		MZ 23'
Cutting width	ft	21' 8"
Transport width	ft	7' 10"
Transport length	ft	19' 4"
Transport height	ft	11' 2"
Power take-off speed	RPM	1 000
Rotor protection		friction clutch
Rotation axis		vertical
Number of rotors	pcs	5
Number of blades / rotor	pcs	4
Peripheral speed of blades	ft/min	7086
Maximum cutted material diameter	in	2"
Working angle of side frames		-15° do +45°
Horsepower requirement*	hp	200 - 230
Frame type		folding
Hitch type		lug 40, 50 / K80
Tire size		27x8,5-15
Max. total weight**	lb	8,686

*according to the machine equipment

At BEDNAR we work continuously to keep the information on this website accurate, up-to-date and useful. As we are dedicated to improving your experience and best farming performance, some specifications may be enhanced beyond what is currently shown. Complete technical specifications will be confirmed with your authorized BEDNAR representative at the time of ordering.
