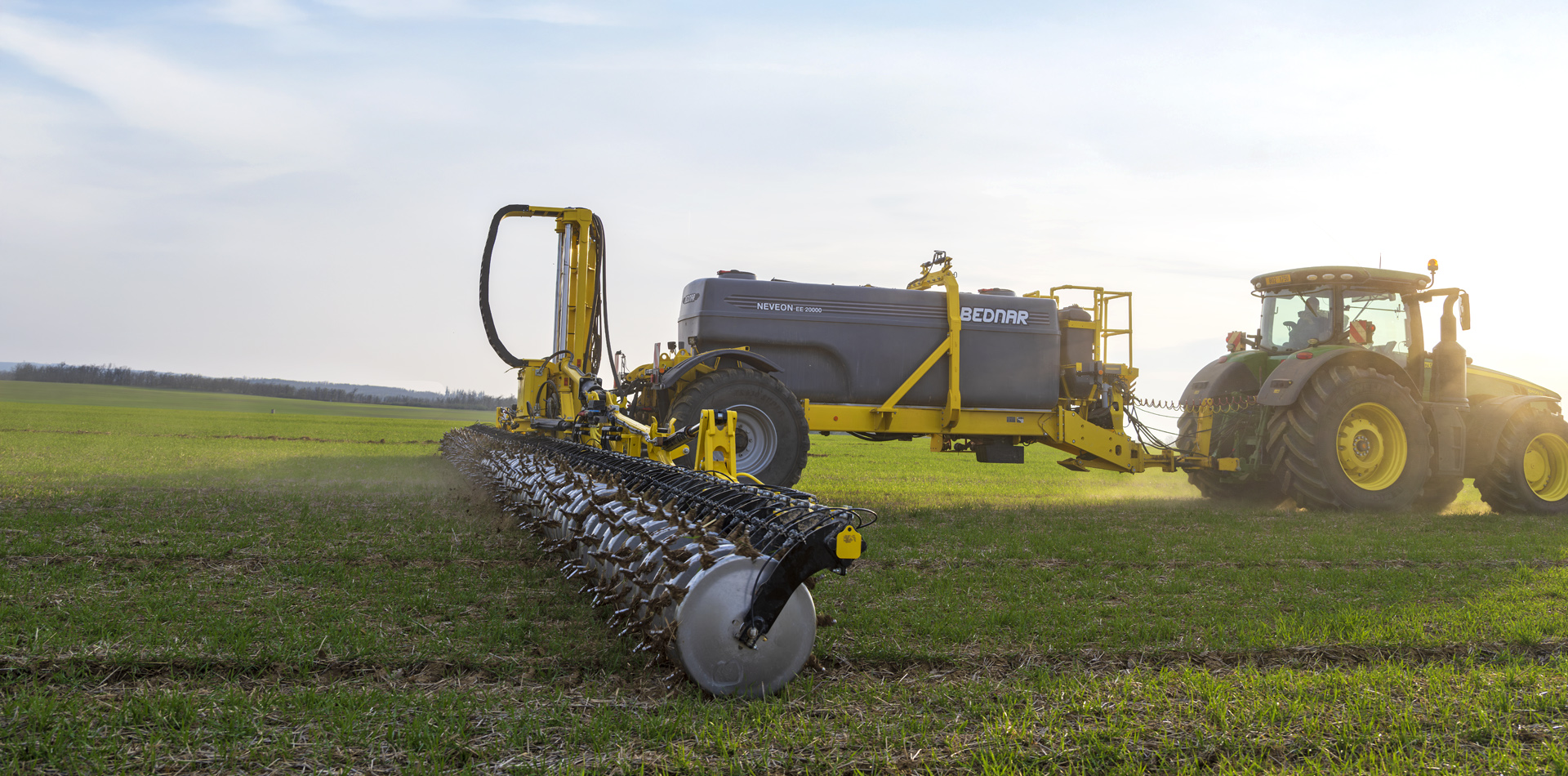

NEVEON EE is an applicator so-called liquiliser designed for the application of liquid fertiliser, especially nitrogen fertiliser, directly into the soil profile. The machine consists of a large-volume tank and boom that can be dismounted. A separate tank with its own chassis can be used for other uses of liquid fertilisers on your farm, for example for the application of liquid fertilisers by the strip till system.
12-18 m
8000 l
Injection for surface application or for application to row crops.
By injecting liquid nitrogen using a spoke wheel, yield increases by up to 9% and protein increases by up to 20% compared to traditional spreading of granular fertilisers. Conventional granular fertilisers have an efficiency of 65–85%, while liquid fertilisers achieve significantly higher efficiency – up to 95%! No fertiliser evaporation, minimal fertiliser leaching. Nitrogen is injected to a depth of seven centimeters, making it immediately available to the plant and ensuring a faster effect, especially in dry conditions. The fertiliser is injected precisely close to the root system. There is no risk of burning the plants.
The NEVEON liquiliser tank is made of laminate. It includes breakwaters inside the tank. The total volume of 8000 l guarantees high performance. You can choose from two pumps. A pump with a maximum flow rate of 166 l/min or a more powerful pump with a capacity of 274 l/min.
The tank is attached to the chassis, which is equipped with a 3-point hitch cat. III and IV. and a towing eye. The boom is mounted to the hitch. They can be easily parked and the chassis with the tank used for other needs on the farm.
The flushing tank is used to flush the main tank and the entire system. The tank is conveniently accessible.
The hand rinse tank is located at the front of the liquiliser.
The chassis is equipped with large flotation tyres measuring 650/65-30.5. Flotation tyres are specifically designed to create low pressure on the soil, thus preventing possible compaction of soil, which occurs most often when turning the machine on headlands or when working in wet conditions.
The liquiliser boom works on a hydraulic lift, which both absorbs shocks from the ground and also raises the boom arms to a higher position, thus allowing the arms to be folded forward. This allows convenient and quick folding. In addition, the center of gravity is balanced during the transport of the liquiliser from the field to the farm.
The spoke wheel is made of a stainless steel with stainless steel application tips into which the liquid is directed. The system is protected by a cover.
The technical and software solution allows to reduce to a minimum the injection of liquid for each 2 m of working width. The injection tip must have a constant supply of liquid to prevent the tip from clogging.
The entire system for application and adjustment of the liquiliser is controlled from the tractor terminal. BEDNAR engineers have developed software that is very simple and intuitive. The system allows connectivity via ISOBUS.
Kreipkitės nedvejodami arba atraskite artimiausią prekybos atstovą.
Susisiekite su mumis Surasti prekybos partnerįUsed for connecting the liquiliser boom or various other types of mounted machines. The three-point hitch can be replaced by a towing eye for connecting trailed machines, cat. III and IV.
NEVEON is equipped with a large tank with a capacity of 8000 l. The tank has breakwaters on the inside for safe transport of the liquid.
The NEVEON EE liquiliser is equipped with large flotation tyres measuring 650/65-30.5.
Lightweight yet sturdy boom carrying injection spoke wheels. The boom has working widths of 12 m, 15 m and 18 m.
Lehká, přitom pevná ramena nesoucí injektážní parskové hvězdice. Ramena mají pracovní záběr 12 m, 15 m a 18 m.
Aplikační ramena pracují na hydraulickém výtahu, který jednak absorbuje rázy od půdy a dále slouží k vytažení ramen do vyšší pozice, tím umožňuje složení ramen směrem dopředu.
Technické a softwarové řešení umožňuje snižovat na minimum injektáž kapaliny po 2 m pracovní šířky.
Vienu žingsniu arčiau savo naujosios mašinos.
Konfigūratoriuje galite išmėginti visą pasirinktinę įrangą, o išsamesnį aprašymą rasite brošiūroje.
PROFILOVÉ HNOJENÍ
Aplikaci hnojiv do půdního prostředí, takzvané profilové hnojení, je vhodné provádět společně s hloubkovým kypřením hloubkovými kypřiči FENIX, kombinovanými kypřiči ACTROS nebo dlátovými pluhy TERRALAND. Takto přesně uložené hnojivo motivuje kořenový systém k rychlejšímu a masivnějšímu růstu, což pomáhá řešit aktuální problémy s půdní vláhou. Nejčastěji se tento systém uložení hnojiva využívá pro založení porostů hlubokokořenících rostlin, jako je kukuřice, cukrová řepa nebo řepka olejka.
| NEVEON EE | EE 12000 | EE 15000 | EE 18000 | |
|---|---|---|---|---|
| Transportinis plotis | m | 12,51 | 15,51 | 18,51 |
| Transportinis plotis | m | 2,98 | 2,98 | 2,98 |
| Transportinis ilgis | m | 9,35 | 9,35 | 9,35 |
| Transportinis aukštis | m | 3,9 | 3,9 | 3,9 |
| Bunkerių talpa | l | 8000 | 8000 | 8000 |
| Atstumas tarp ratukų | cm | 25/45/50/70/75/80 | 25/45/50/70/75/80 | 25/45/50/70/75/80 |
| Ratukų skaičius | vnt. | 50/56/50/36/32/32 | 62/68/62/44/42/38 | 74/82/74/52/50/46 |
| Maksimali spaudimo į dirvą jėga | kg | 80 -140 | 80 -140 | 80 -140 |
| Minimali - maksimali norma | l/ha | 10 - 700 l/ha při 12 km/h | 10 - 700 l/ha při 10 km/h | 10 - 700 l/ha při 8 km/h |
| Rekomenduojama traktoriaus galia* | AG | 250 | 250 | 250 |
| Bendroji masė** | kg | 13000 | 13000 | 13000 |
*depends on soil conditions ** depends on the equipment
